Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis, depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

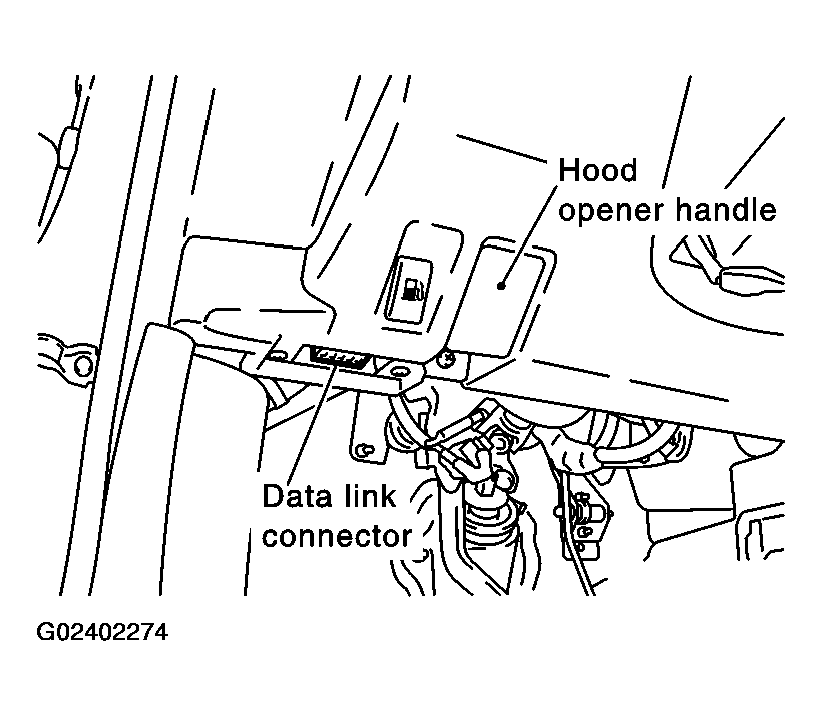

Fig 1: Data Link Connector & Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START(NISSAN BASED VHCL)".

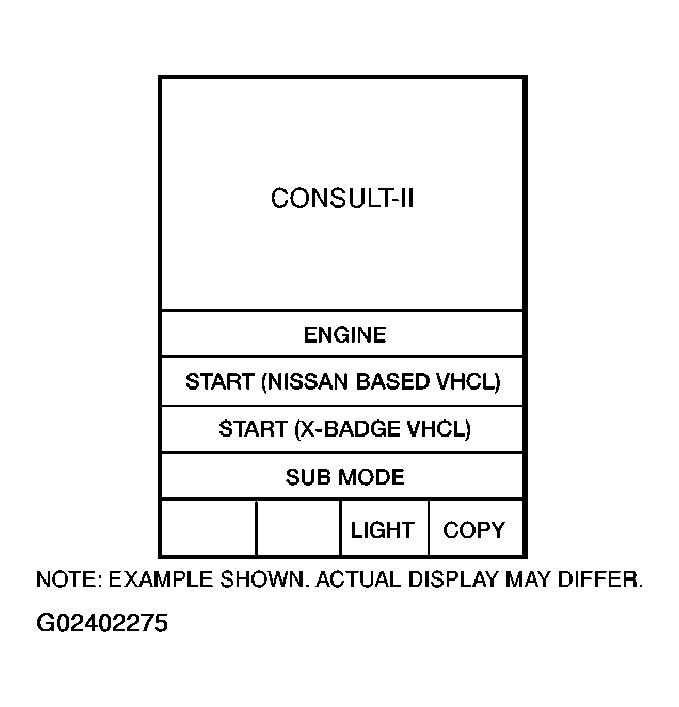

Fig 2: Scan Tool Display "Consult II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to "CONSULT-II DATE LINK CONNECTOR (DLC) CIRCUIT ".

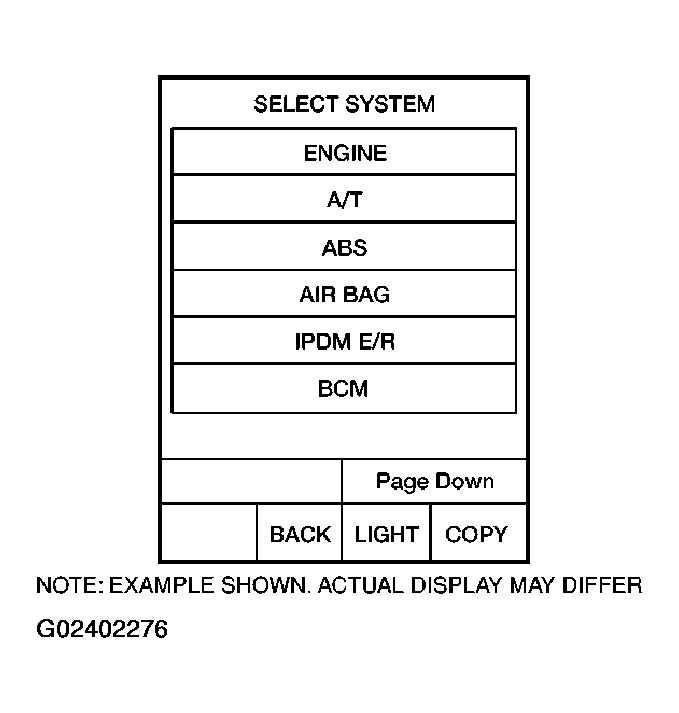

Fig 3: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DOOR LOCK".

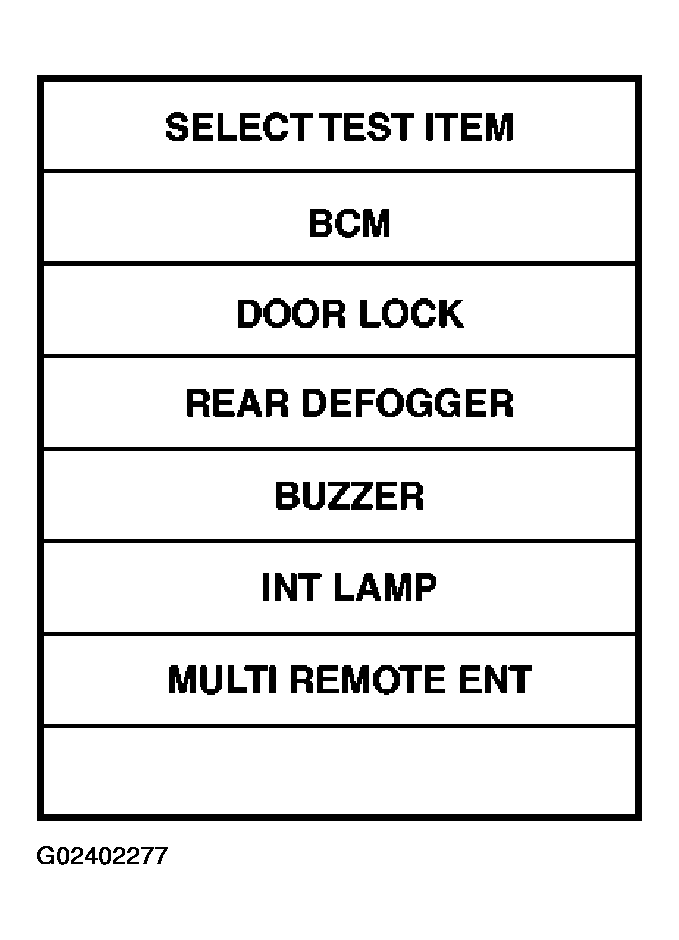

Fig 4: Scan Tool Display "Select Test Item"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"WORK SUPPORT", "DATA MONITOR" and "ACTIVE TEST" are available.

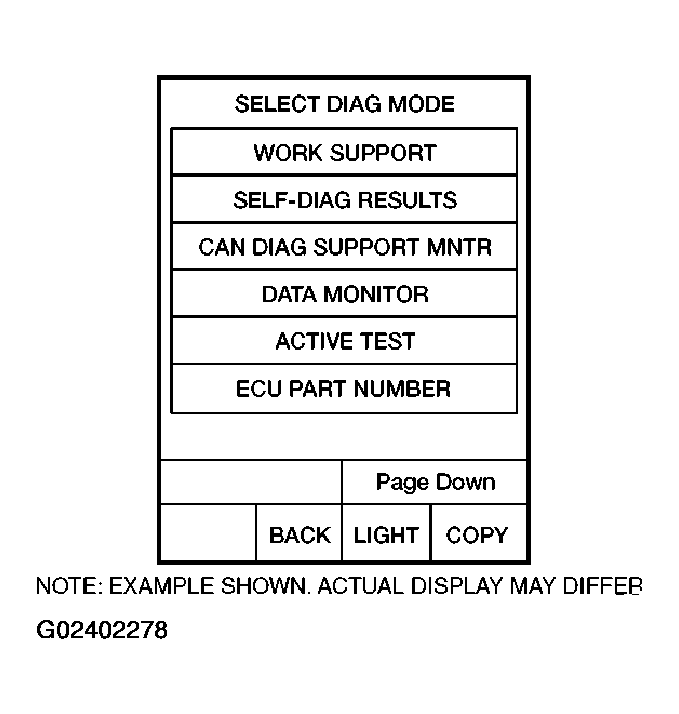

Fig 5: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
