Door Switch Check

With CONSULT-II

Check door switches ("DOOR SW-AS" and "DOOR SW-DR") in "DATA MONITOR" mode with CONSULT-II.

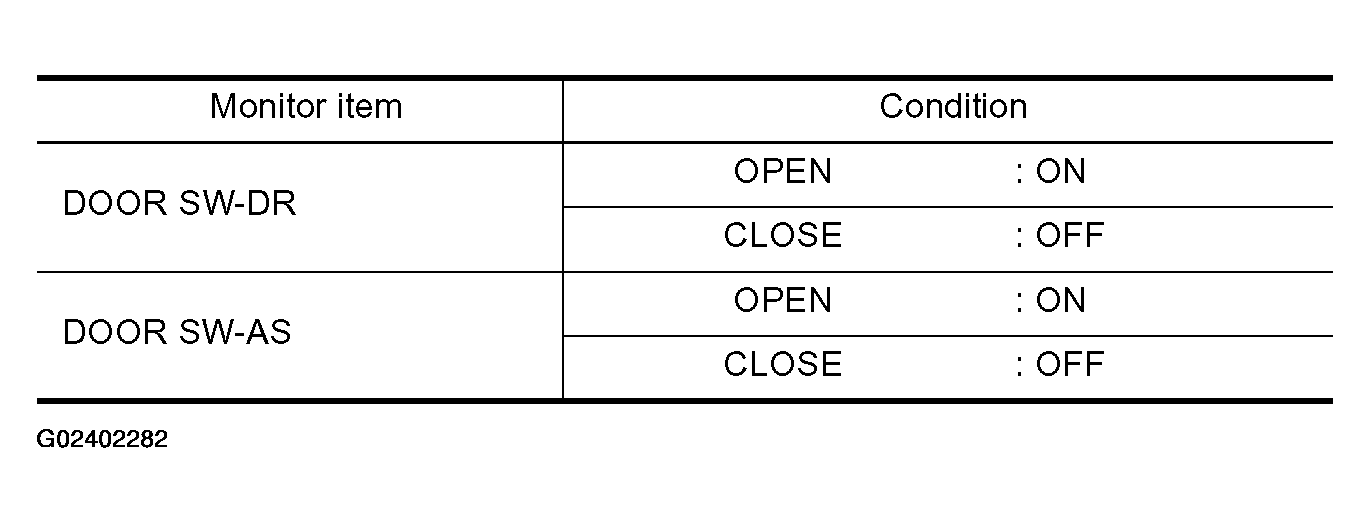

Fig 1: Monitor Item Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

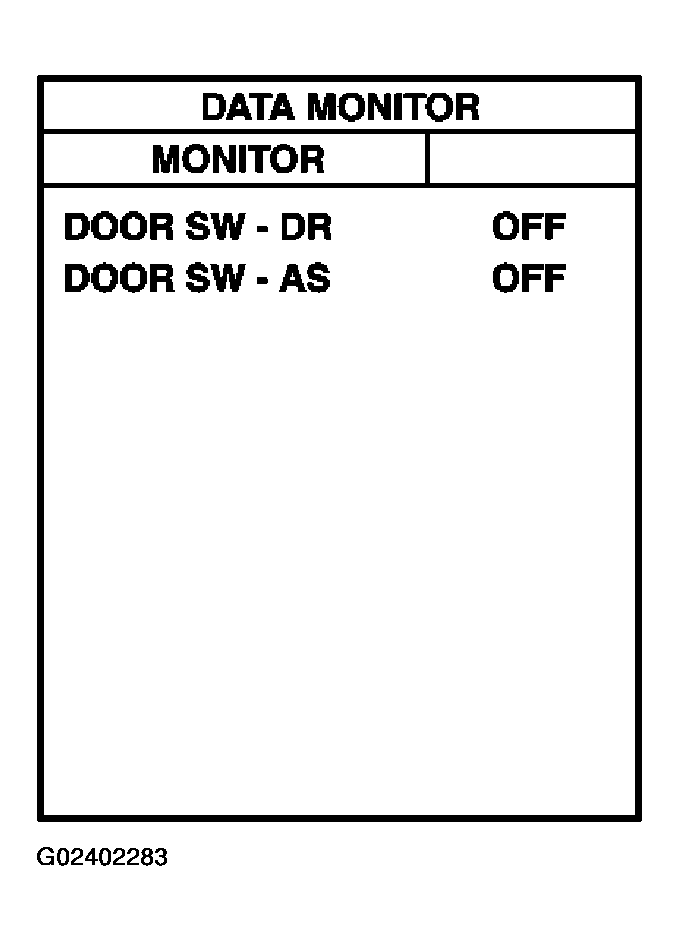

Fig 2: Scan Tool Display "Data Monitor"

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

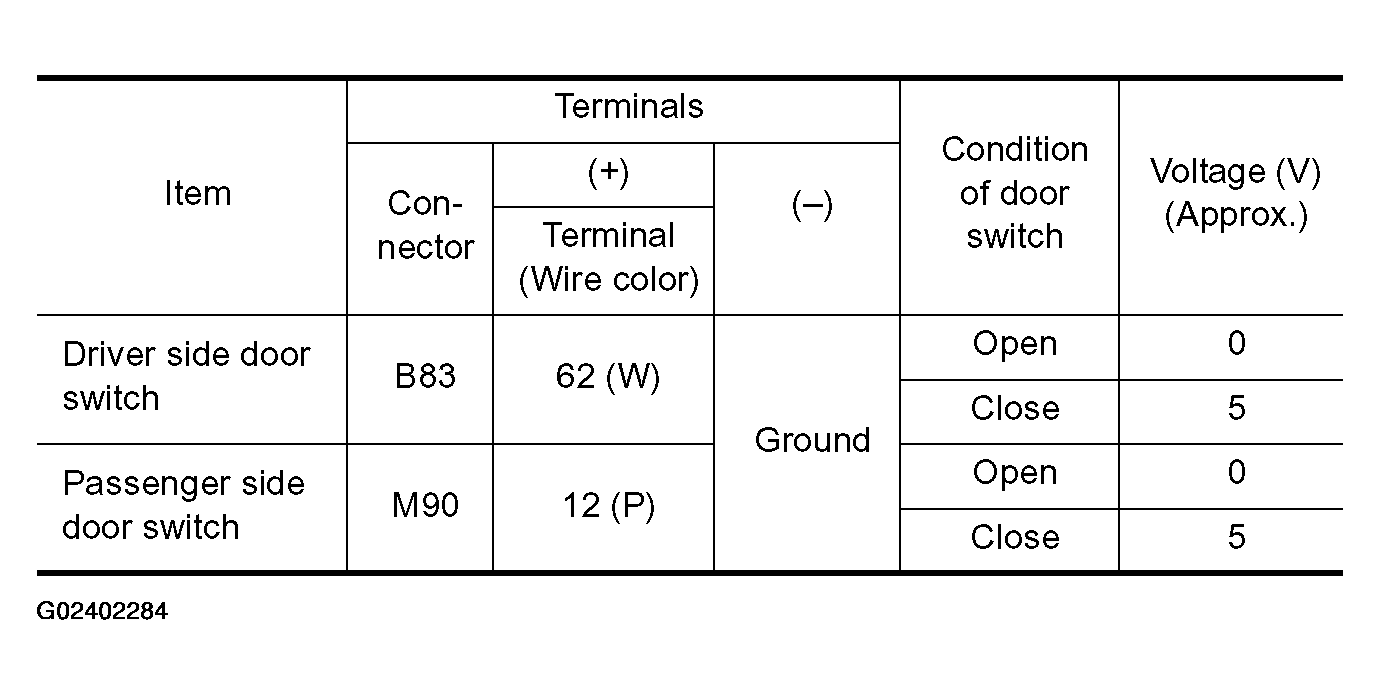

Fig 3: BCM Connector Terminal 62 & Ground & BCM Connector Terminal 12 & Ground Voltage Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : Door switch is OK.
• NG : GO TO 2.

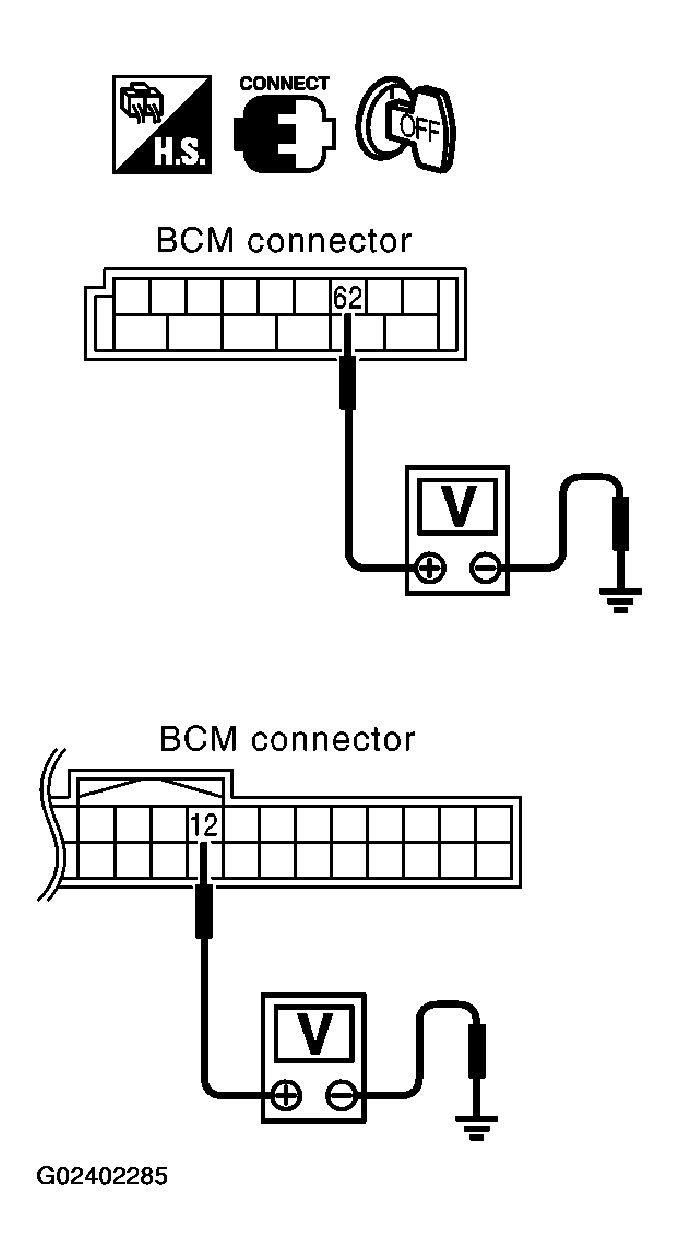

Fig 4: BCM Connector Terminal 62 & Ground & BCM Connector Terminal 12 & Ground Voltage Test

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between door switch harness connector B17, B23, terminals 1 and BCM harness connector B83 terminals 62 (driver side) or M90 terminal 12 (passenger side).
   • Driver side door
   • 1 (W) - 62 (W) : Continuity should exist.
   • Passenger door
   • 1 (P) - 12 (P) : Continuity should exist.
4. Check continuity between door switch harness connector B17, B23, terminals 1 and ground.
   • 1 (W or P) - Ground : Continuity should not exist.

OK or NG

• OK : GO TO 3.
• NG : Repair or replace harness.

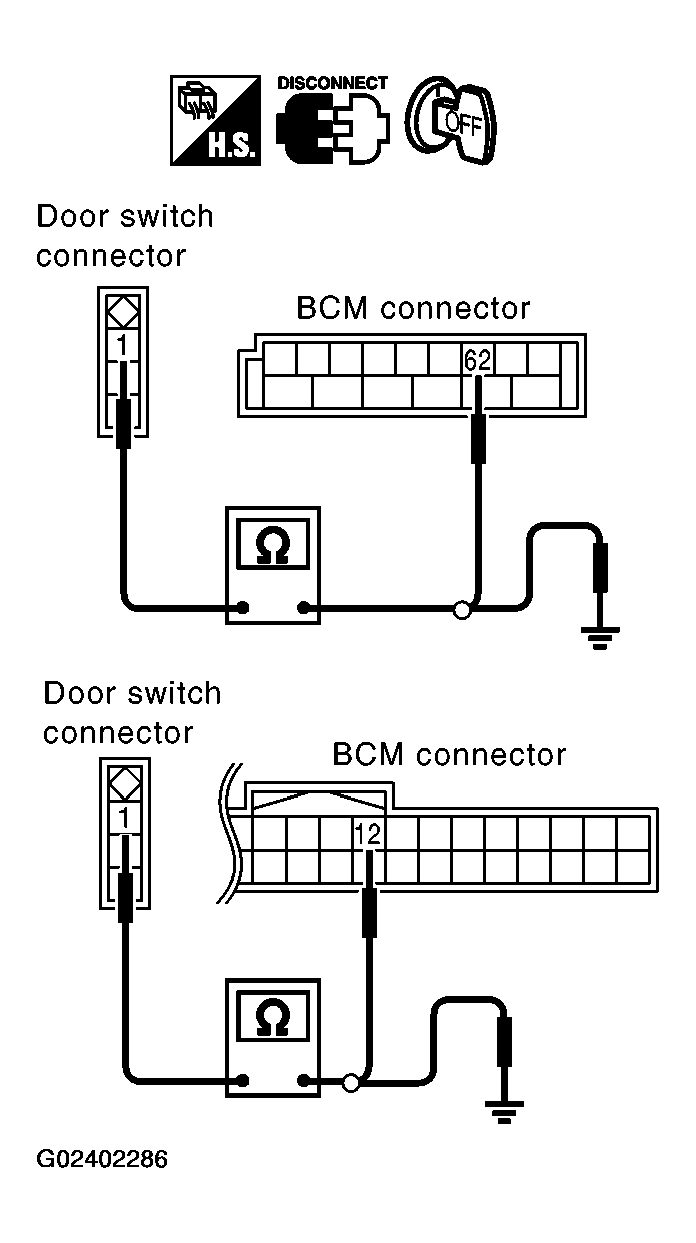

Fig 5: Door Switch Harness Connector Terminals 1 & BCM Harness Connector Terminal 62 Or Terminal 12 & Ground Continuity Test

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between door switch harness connector B17 (driver side) or B23 (passenger side) terminal 1 and ground.

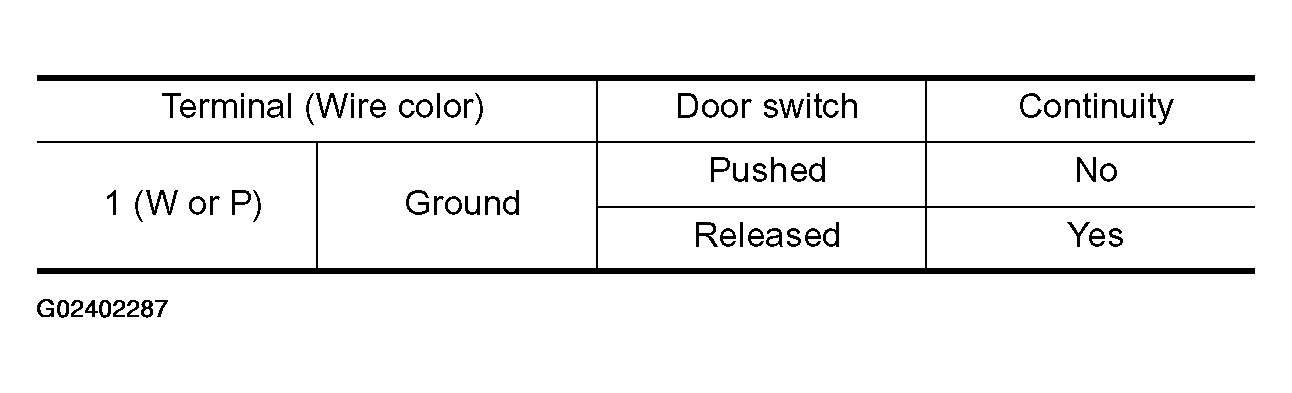

Fig 6: Door Switch Harness Connector B17 (Driver Side) Or B23 (Passenger Side) Terminal 1 & Ground Continuity Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : Further inspection is necessary. Refer to SYMPTOM CHART .
• NG : Replace malfunction door switch.

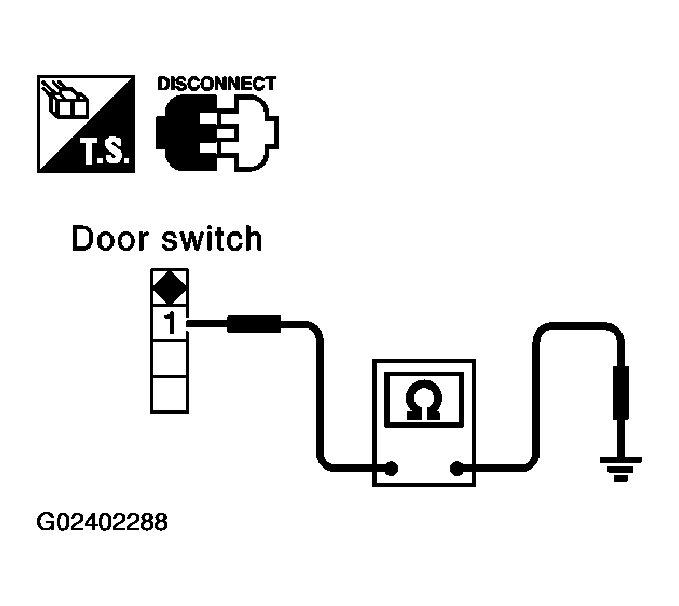

Fig 7: Door Switch Harness Connector B17 (Driver Side) Or B23 (Passenger Side) Terminal 1 & Ground Continuity Test

Courtesy of NISSAN MOTOR CO., U.S.A.
