"Adjust Current Location" Mode

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Select an icon "right" or "left" to calibrate the heading direction.
(Arrow marks will rotate corresponding to the calibration key.)

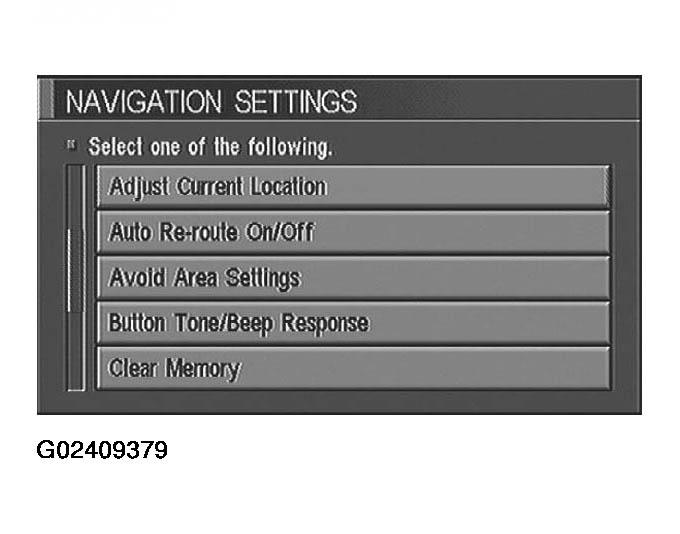

Fig 1: Select "Adjust Current Location" Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Set". Then the vehicle mark will be matched to the arrow mark.

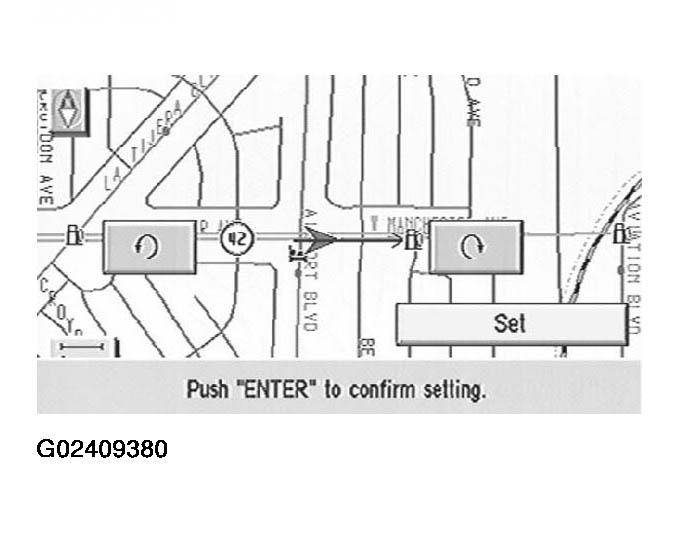

Fig 2: Matching Vehicle Mark With Arrow Mark
Courtesy of NISSAN MOTOR CO., U.S.A.
