4 A/T Models

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

When installing the transaxle to the engine, use the specified tightening torque in the order as shown.

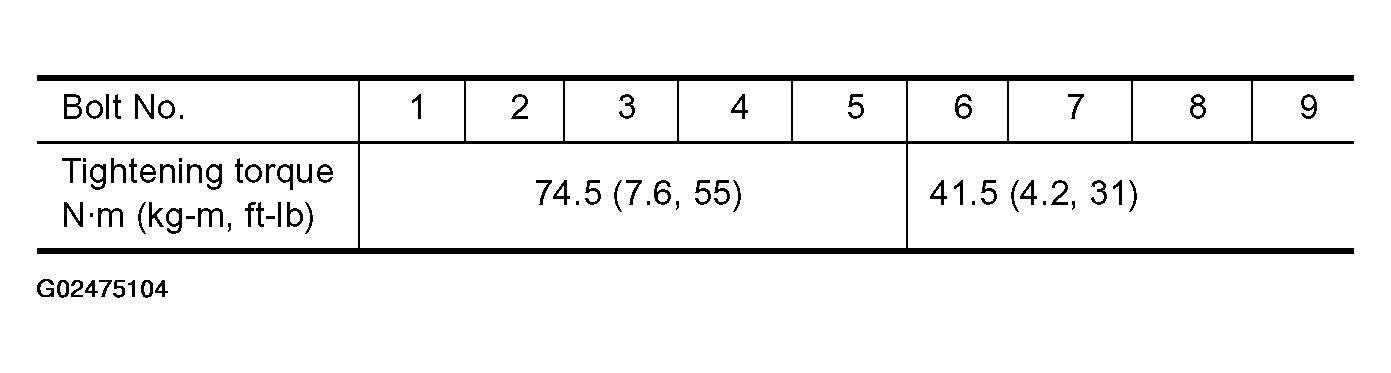

Fig 1: 4 A/T Model Tightening Torque Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

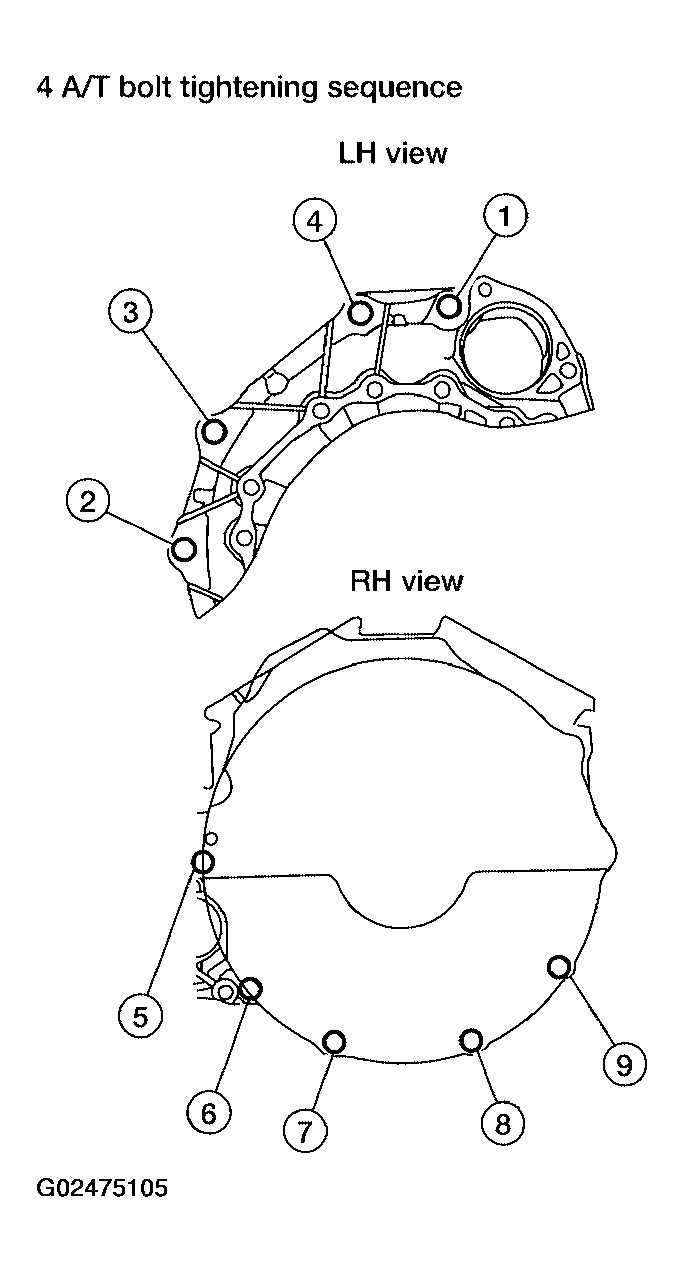

Fig 2: Identifying 4 A/T Bolt Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.
