CAN Communication Unit: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following table to determine CAN system type.

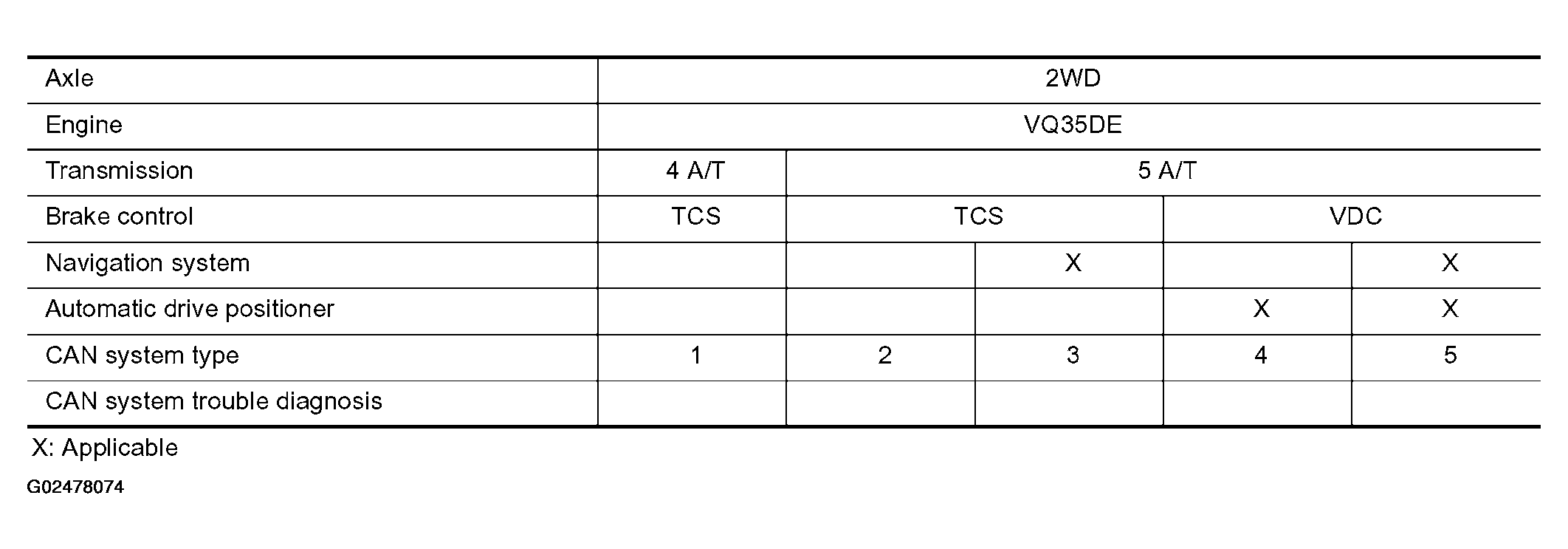

Fig 1: CAN Communication Unit Reference

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Confirming the presence of the following items helps to identify CAN system type.

Models with TCS

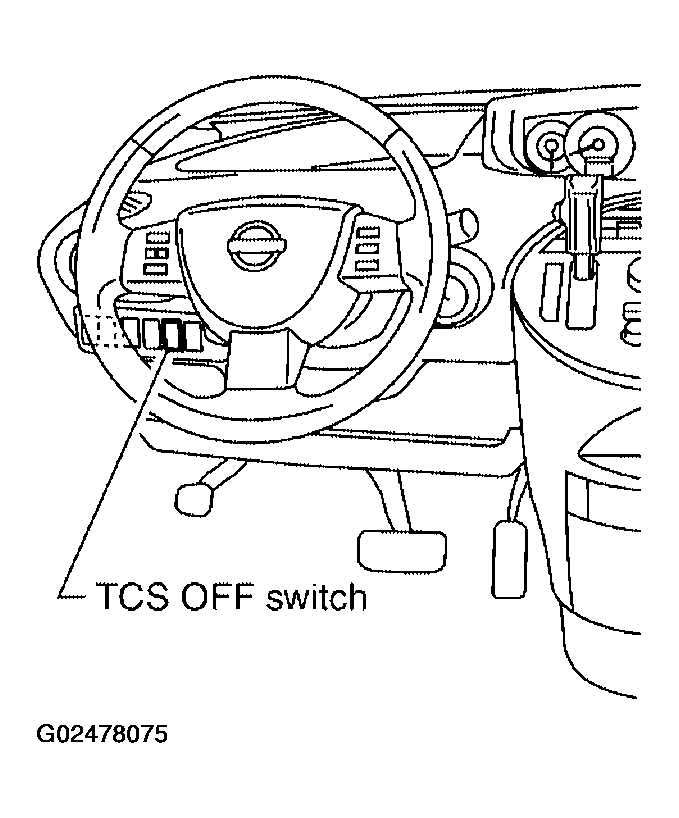

Fig 2: Locating TCS Off Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with VDC

Fig 3: Locating VDC Off Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with navigation system

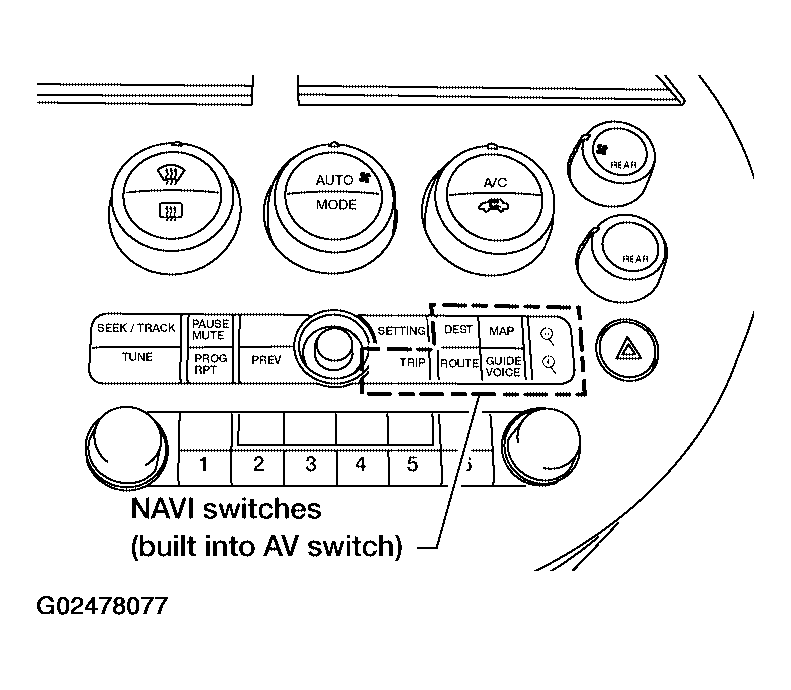

Fig 4: Identifying Navigation Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with automatic drive positioner

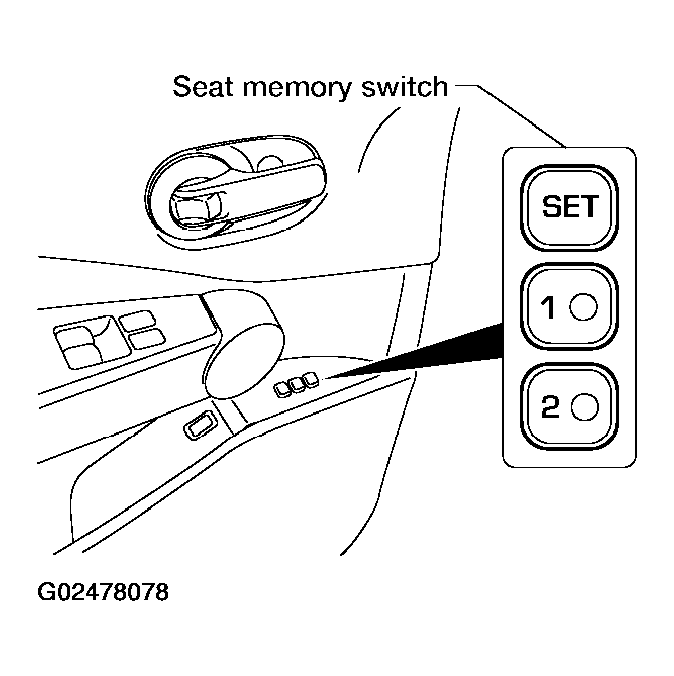

Fig 5: Locating Seat Memory Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
