Terminals and Reference Value for Audio Unit (Base and Mid Level System)
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

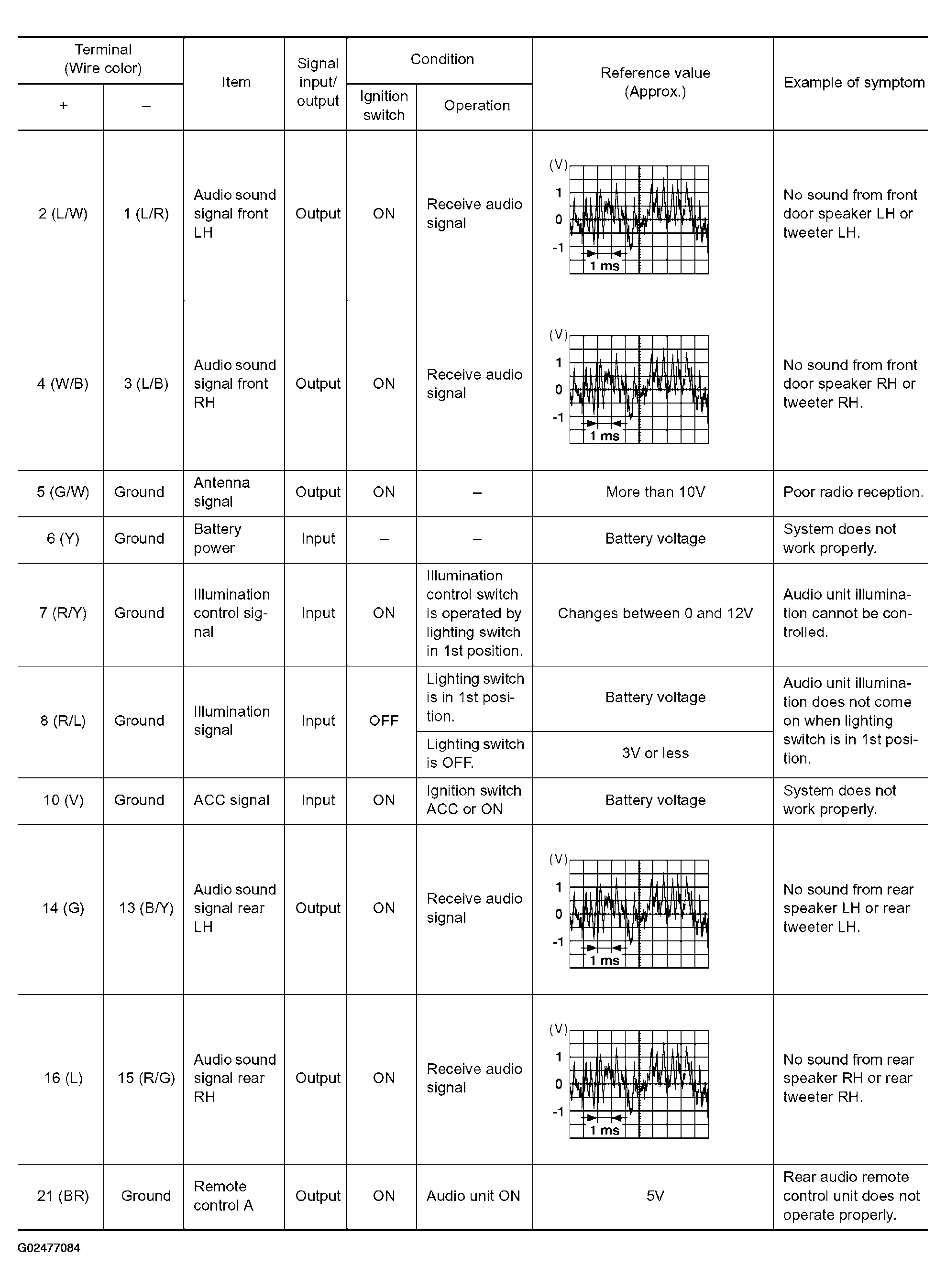

Fig 1: Audio Unit (Base And Mid Level System) - Terminals & Reference Value Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

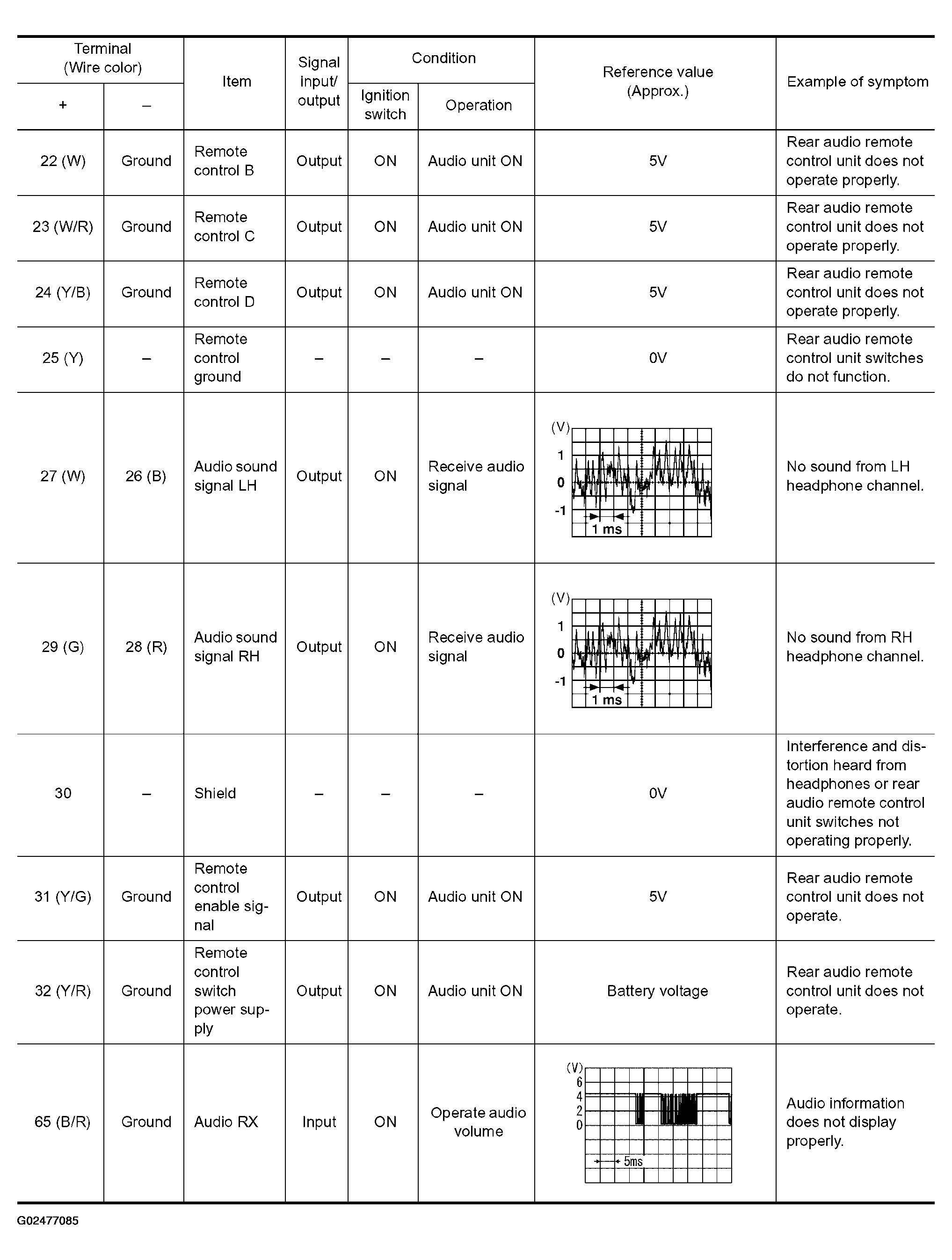

Fig 2: Audio Unit (Base And Mid Level System) - Terminals & Reference Value Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

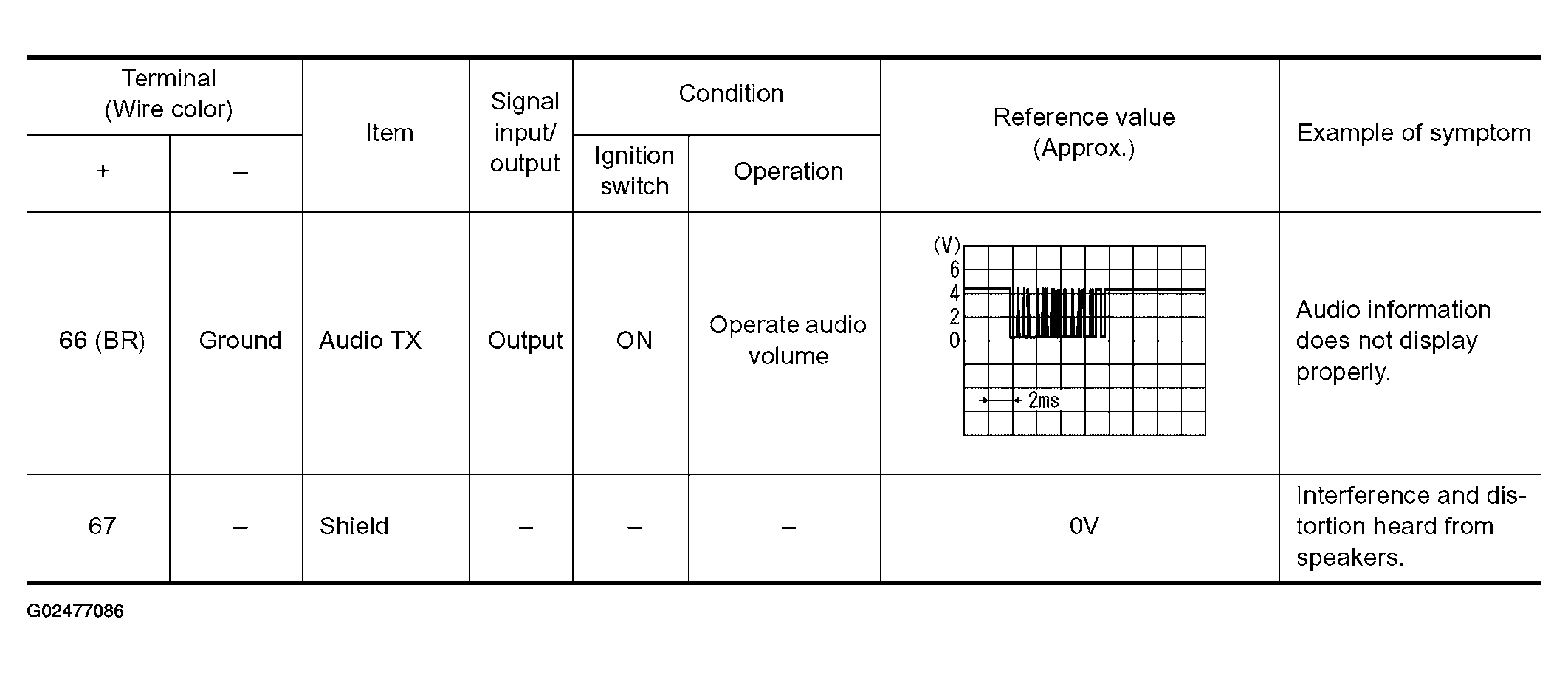

Fig 3: Audio Unit (Base And Mid Level System) - Terminals & Reference Value Chart (3 Of 3)
