CAN Communication Line Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MONITOR DESCRIPTION

Start display unit self-diagnosis. Refer to "SELF-DIAGNOSIS MODE ".

Select "CAN DIAG MNTR". Refer to "CAN DIAG MNTR (CAN DIAG MONITOR) ".

DATA MONITOR DISPLAY DESCRIPTION TABLE

Diagnosis item	Data monitor display description
Diagnosis item	Normal condition	Error (example)
CANCOMM	OK	NG
CAN1	OK	UNKWN
CAN2	OK	UNKWN
CAN3	OK	UNKWN
CAN4	OK	UNKWN
CAN5	OK	UNKWN
CAN6	OK	UNKWN
CAN7	OK	UNKWN
CAN8	OK	UNKWN
CAN9	OK	UNKWN

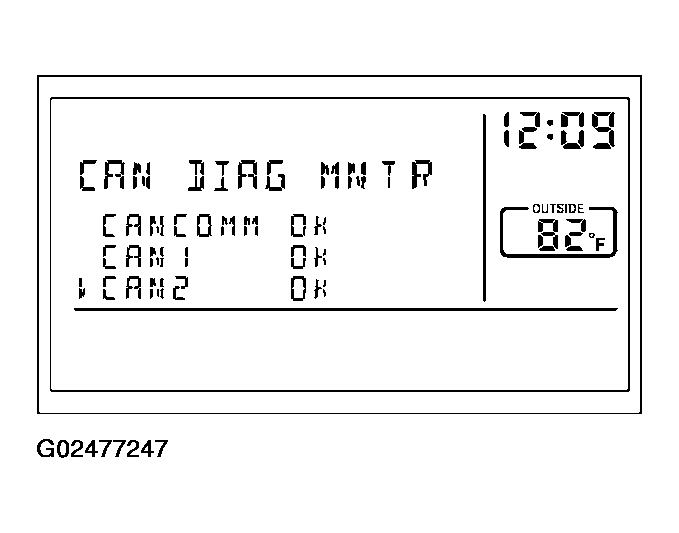

Fig 1: Selecting CAN Diag MNTR - Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Record each item display description (OK/NG/UKNWN) displayed on the following CAN DIAG MONITOR Check Sheet.
CAN DIAG MONITOR Check Sheet

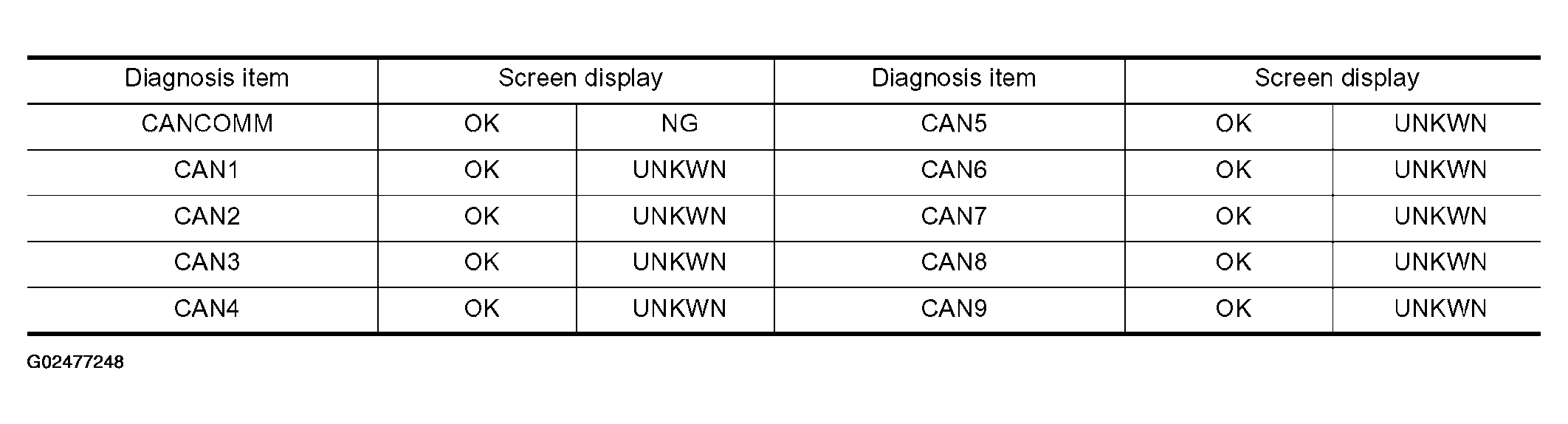

Fig 2: CAN DIAG MONITOR Check Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
1. : After filling in CAN DIAG MONITOR Check Sheet, go to "CAN COMMUNICATION ".
