Illumination Signal Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ILLUMINATION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between display unit and ground.

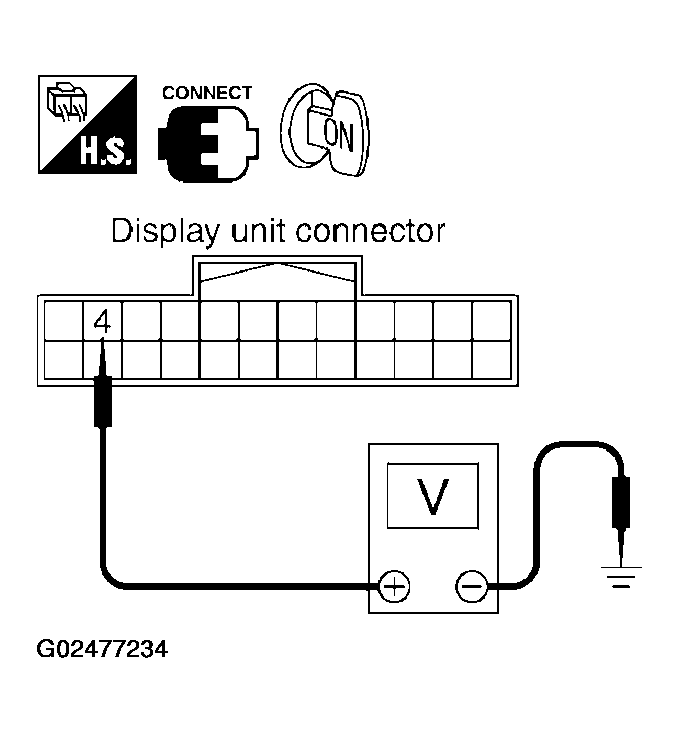

  Fig 1: Checking Voltage Between Display Unit & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Connector M93 Terminal Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace display unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY UNIT ".
2. NG: Check harness for open or short between display unit and IPDM E/R.
