Steering Wheel Audio Control Switch Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

AV SWITCH SELF-DIAGNOSIS FUNCTION CHECK
1. Start AV switch self-diagnosis function. Refer to "AV SWITCH SELF-DIAGNOSIS FUNCTION ".
2. Operate steering wheel audio control switch.
Does steering wheel audio control switch operate normally?
1. OK: Inspection End.
2. NG: GO TO 2.
CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect AV switch connector M98 and spiral cable connector M30.
3. Check continuity between spiral cable harness connector terminals and AV switch harness connector terminals.

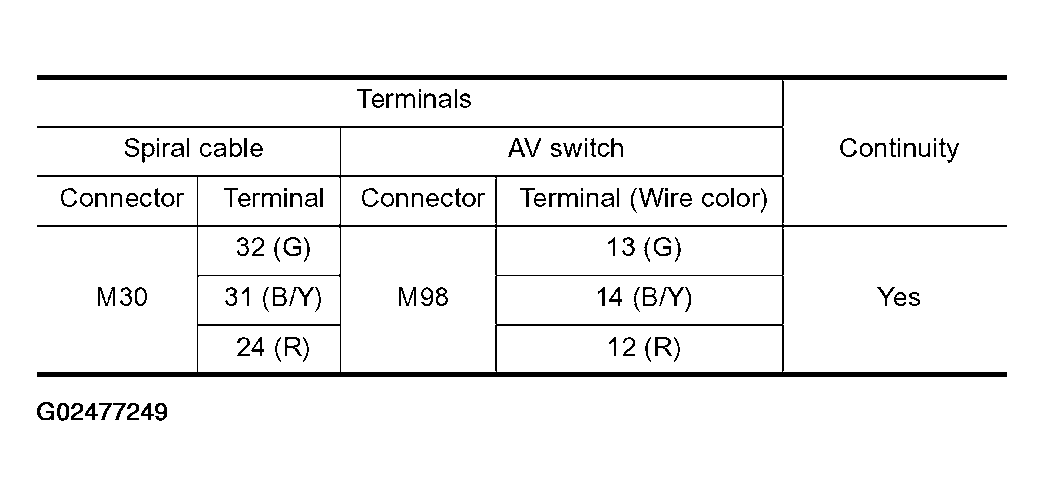

  Fig 1: Connector M30 Terminal (Wire Color) Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

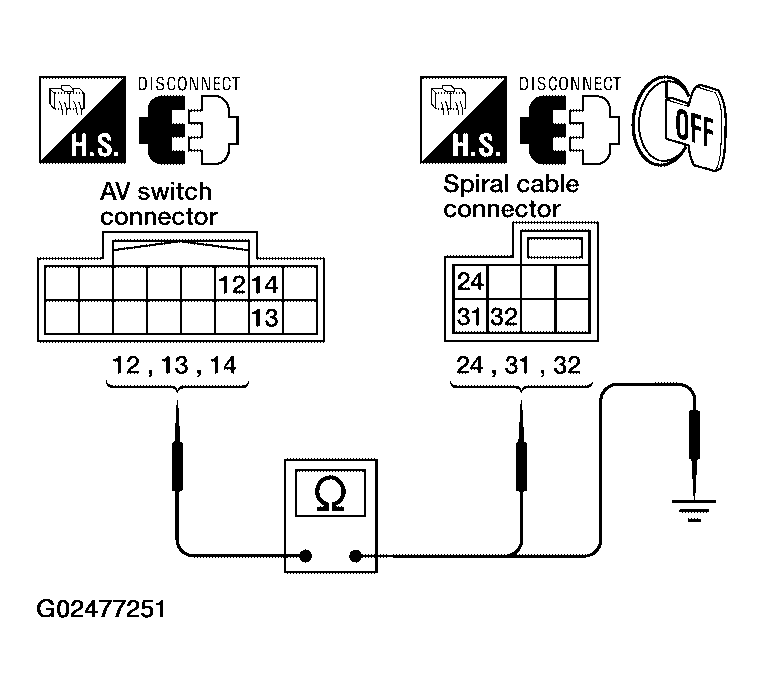

  Fig 2: Checking Continuity Between Spiral Cable Harness Connector Terminals 24, 31, 32 And AV Switch Harness Connector Terminals 12, 13, 14 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between AV switch and ground.

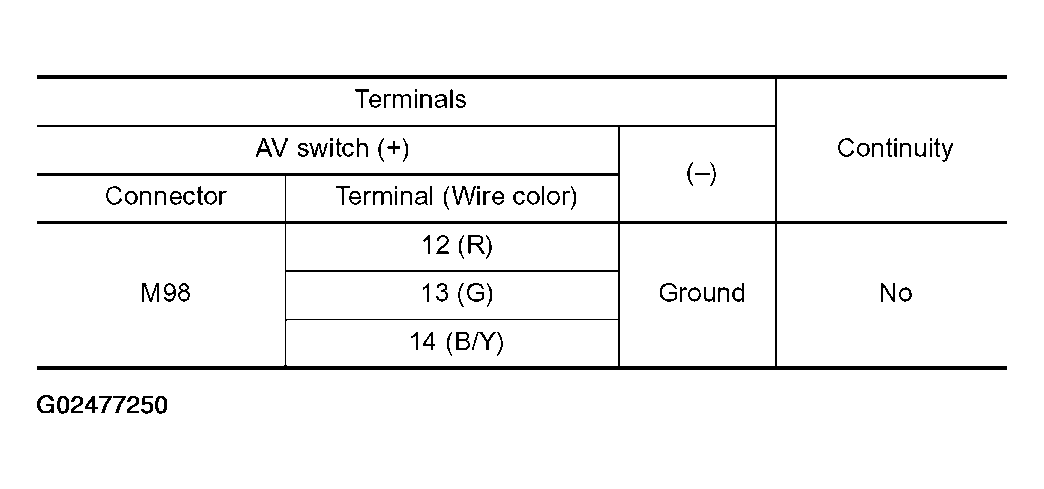

  Fig 3: Connector Terminal Continuity Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Repair harness.
SPIRAL CABLE CHECK
Check spiral cable harness.

OK or NG
1. OK: GO TO 4.
2. NG: Replace spiral cable. Refer to "SPIRAL CABLE ".
CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE
Check resistance between steering wheel audio control switch terminals.

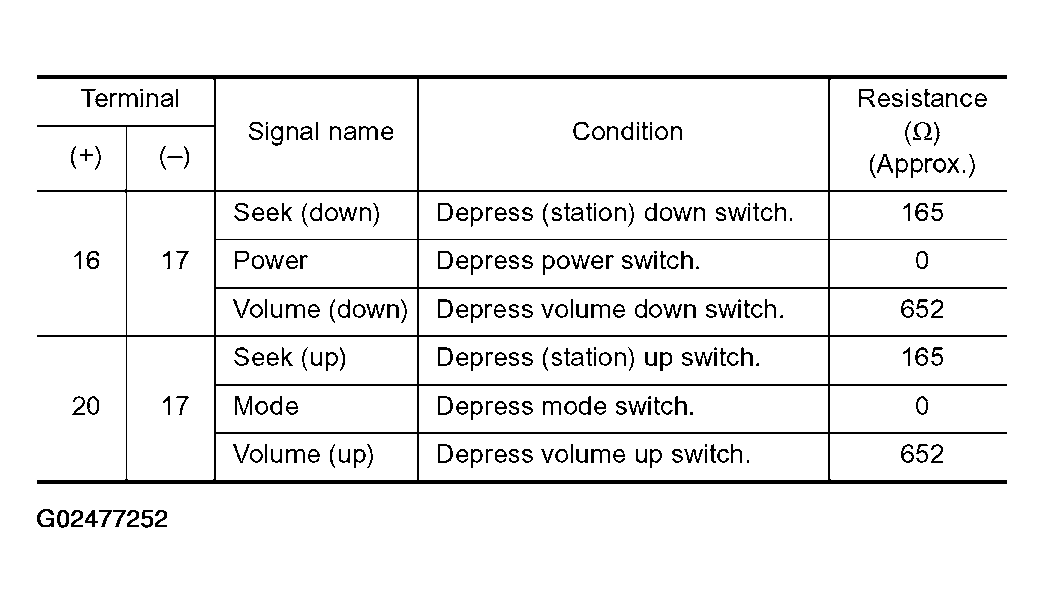

Fig 4: Terminal Signal Reference Graph
Courtesy of NISSAN MOTOR CO., U.S.A.

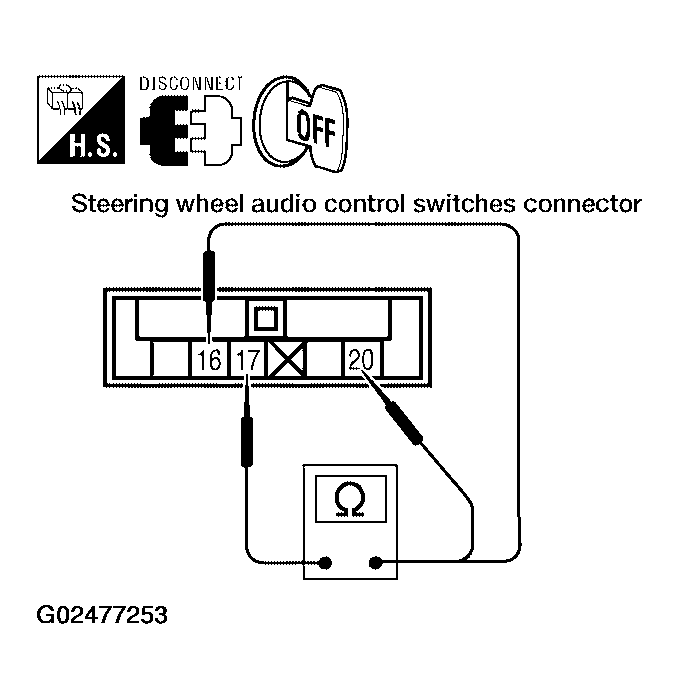

Fig 5: Checking Resistance Between Steering Wheel Audio Control Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace AV switch. Refer to "REMOVAL AND INSTALLATION FOR AV SWITCH ".
2. NG: Replace steering wheel audio control switch. Refer to "REMOVAL AND INSTALLATION OF STEERING WHEEL AUDIO CONTROL SWITCHES ".
