Warning Indications

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

When combination meter receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated.

Then combination meter sends warning signal to display unit warning indications on the screen.

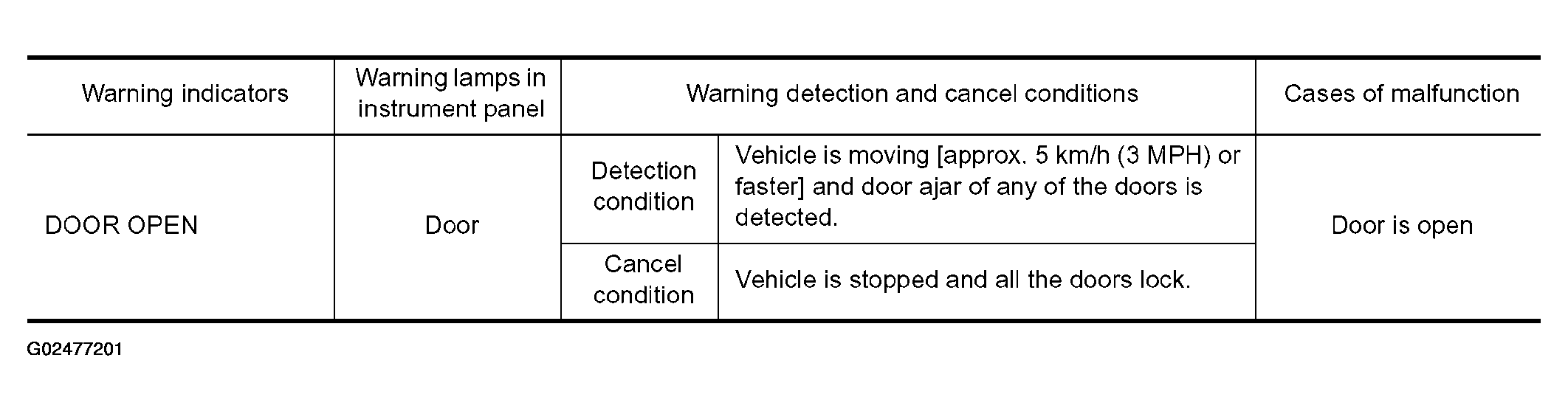

Fig 1: Warning Detection & Cancel Condition Chart
G02477201Courtesy of NISSAN MOTOR CO., U.S.A.
