Removal and Installation of Display Control Unit

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove box assembly. Refer to "INSTRUMENT LOWER PANEL RH AND GLOVE BOX ".
  2. Remove the two display control unit screws.
    NOTE: The display control unit screws are located on the side and the bottom of the unit.

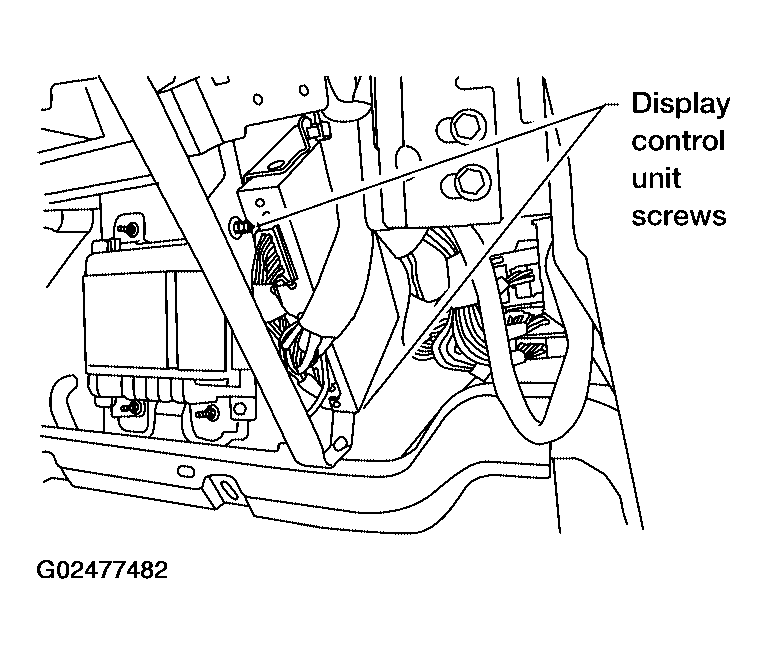

    Fig 1: Removing Two Display Control Unit Screws
    G02477482Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect connectors.
  4. Installation is in reverse order of removal.
