Reverse Signal Check for NAVI Control Unit

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK REVERSE LAMP
1. Turn ignition switch ON.
2. Place selector lever into R-position. Do back-up lamps come on?
YES or NO
1. YES: GO TO 2.
2. NO: Check back-up lamp system. Refer to "BACK-UP LAMP ".
CHECK REVERSE SIGNAL
With the selector lever in R-position, check voltage between NAVI control unit terminal 27 and ground.

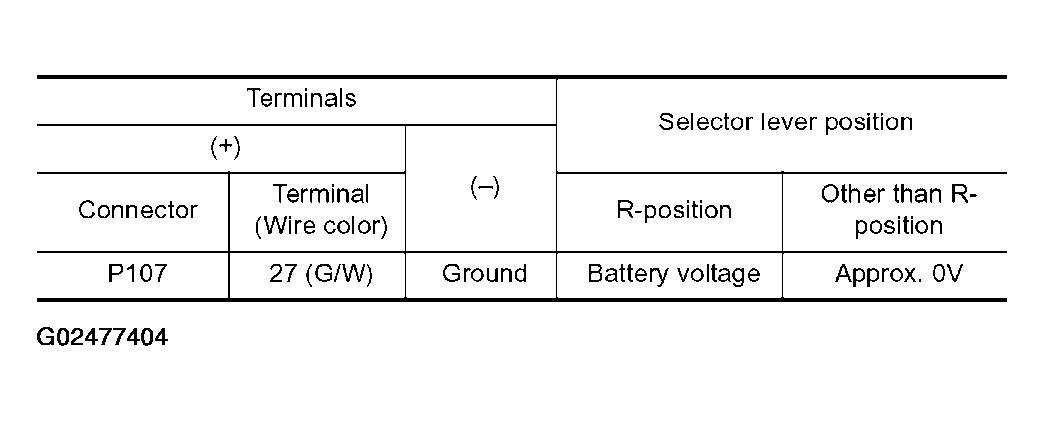

Fig 1: Selector Lever Position Table
Courtesy of NISSAN MOTOR CO., U.S.A.

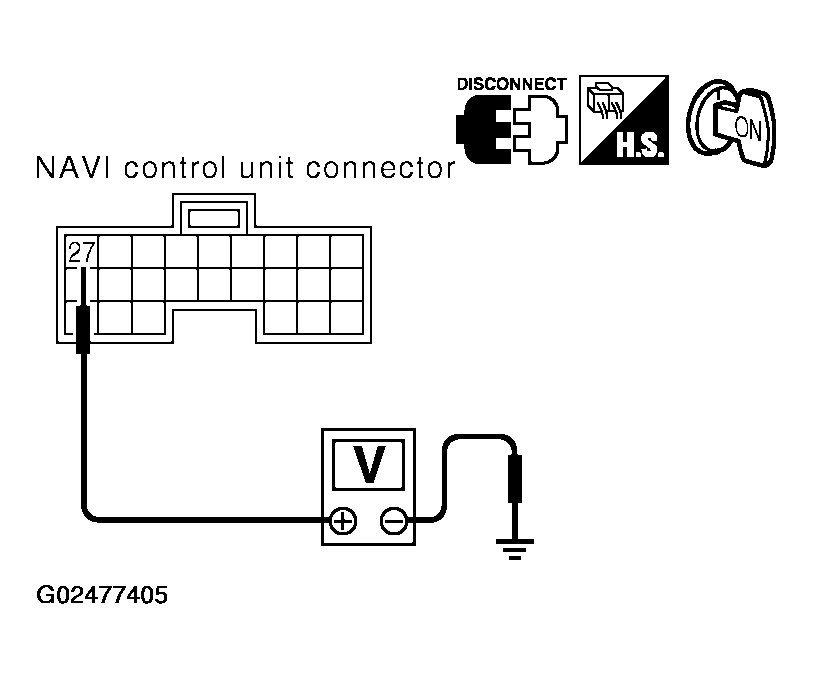

Fig 2: Checking Voltage Between NAVI Control Unit Terminal 27 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace NAVI control unit. Refer to "REMOVAL AND INSTALLATION OF NAVI CONTROL UNIT ".
2. NG: Check harness for open or short between NAVI control unit and back-up lamp position relay.
