Terminals and Reference Value for Display Control Unit
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

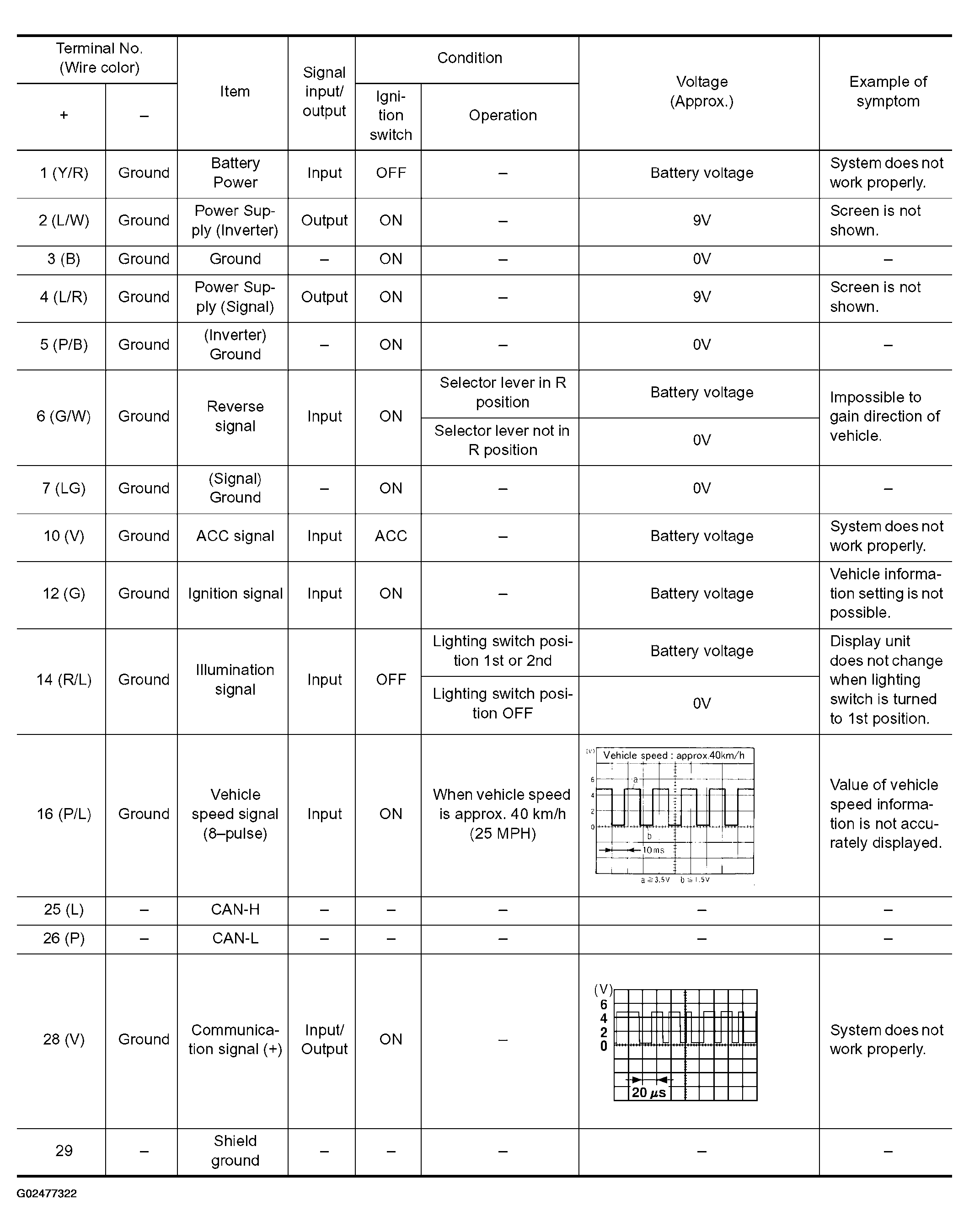

Fig 1: Terminals & Reference Value For Display Control Unit Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

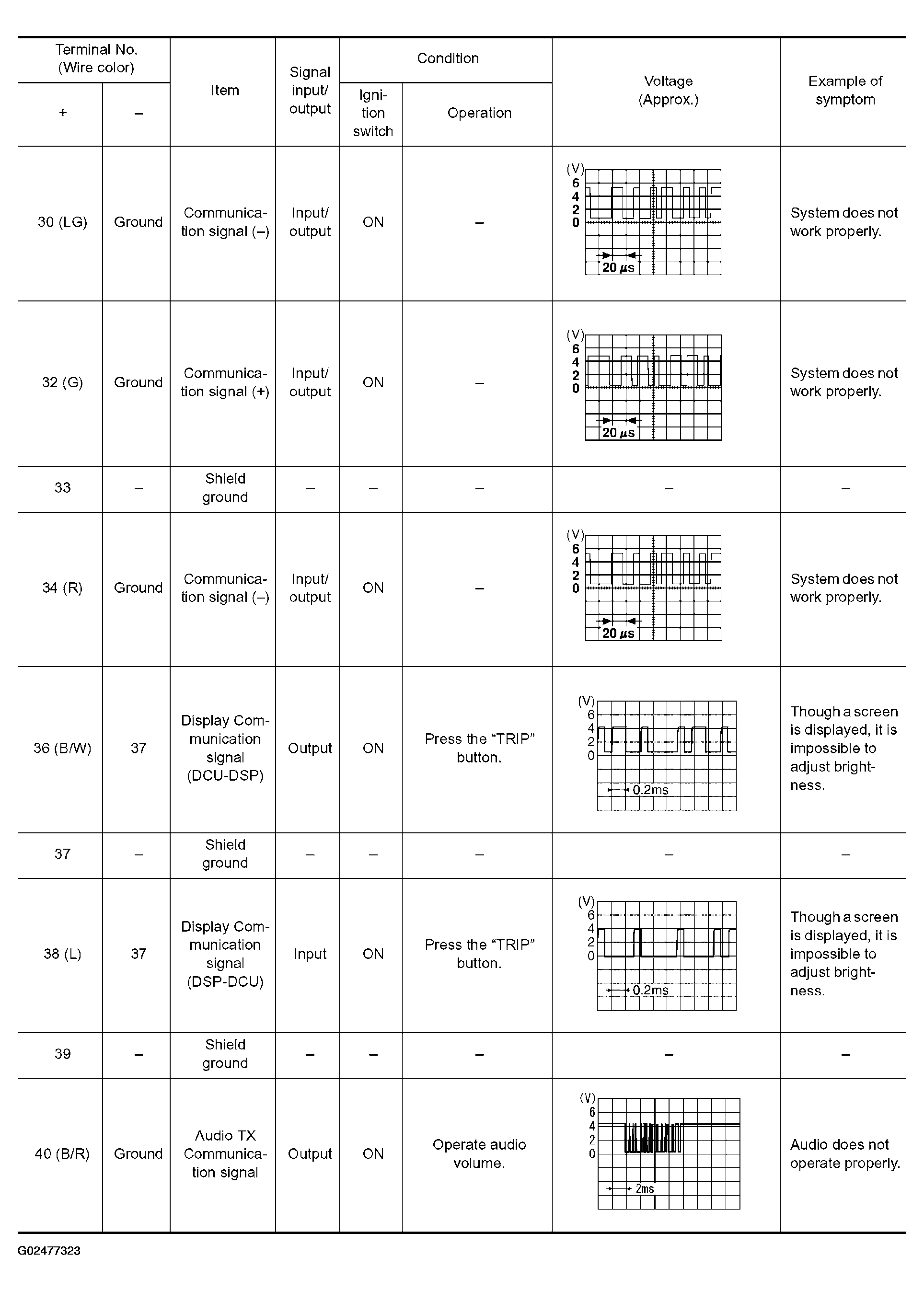

Fig 2: Terminals & Reference Value For Display Control Unit Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

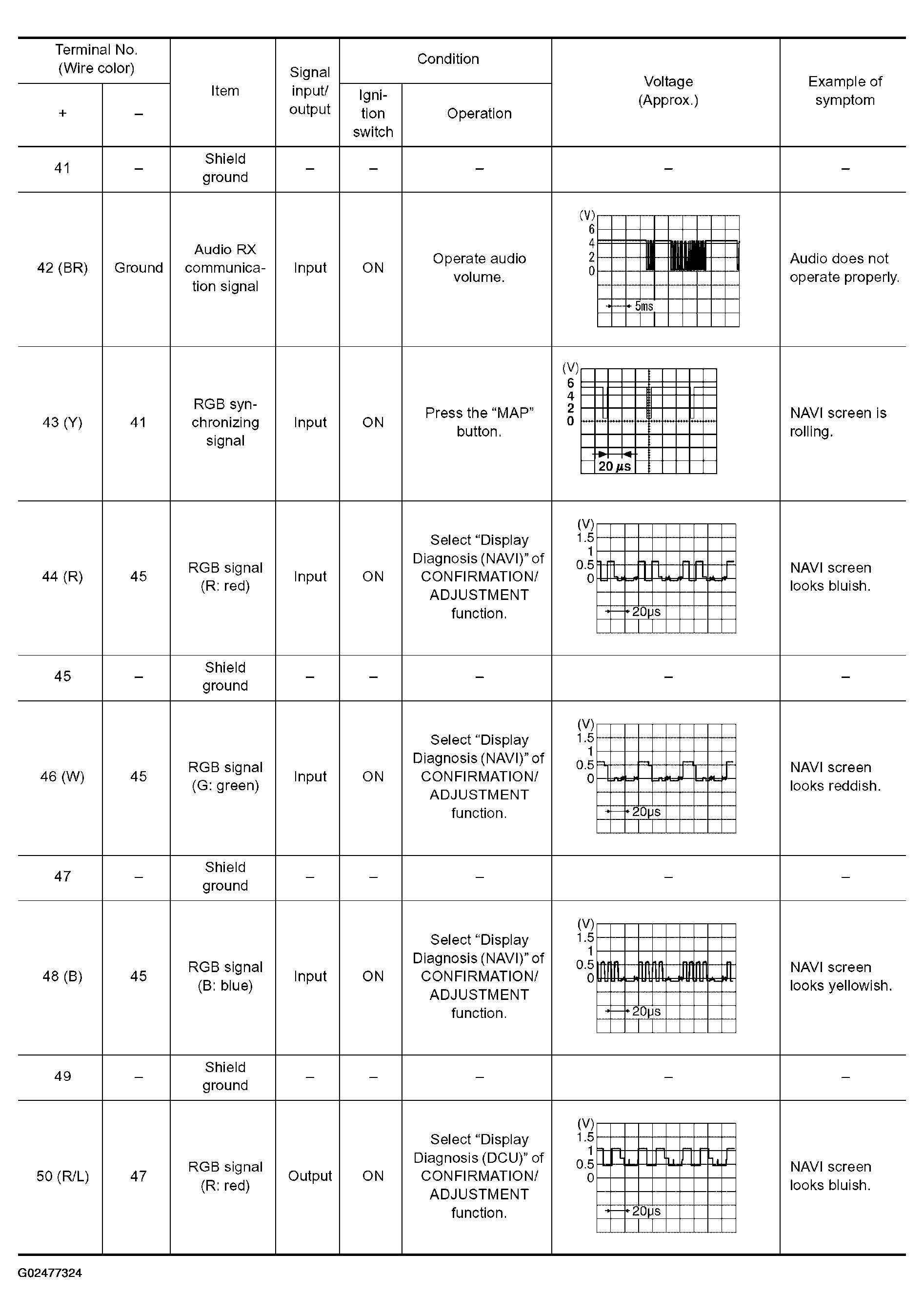

Fig 3: Terminals & Reference Value For Display Control Unit Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

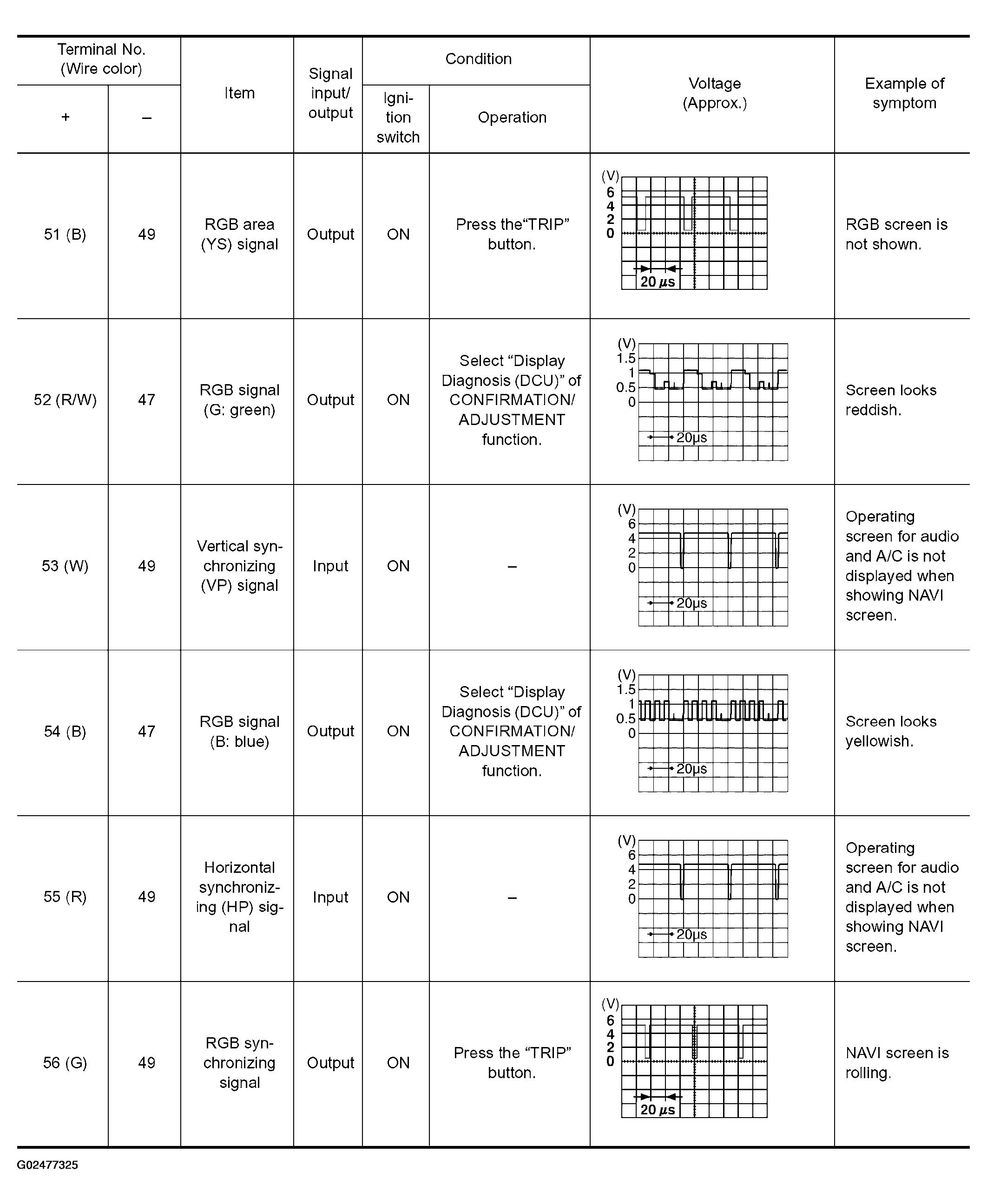

Fig 4: Terminals & Reference Value For Display Control Unit Chart (4 Of 4)
