Automatic Operation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

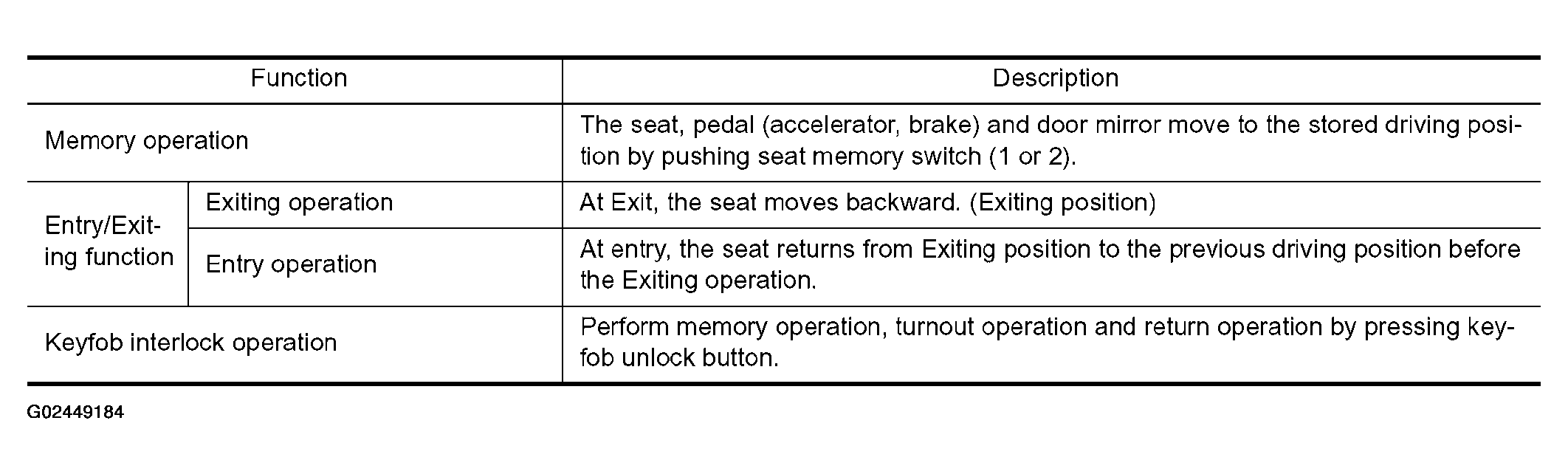

Fig 1: Automatic Drive Positioner Operation Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the front door switch LH ON (open)-->OFF (close)-->ON (open), the Entry/Exiting function becomes possible.
After Exiting operation is carried out, return operation can be operated.

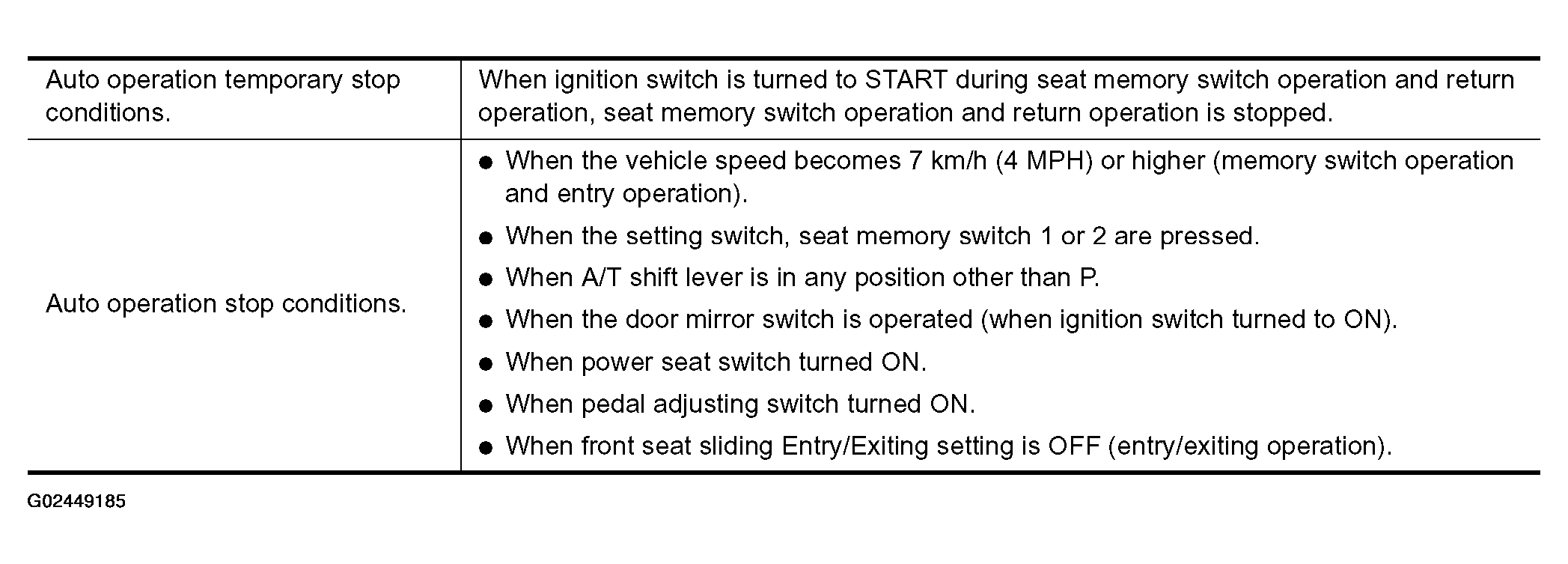

Fig 2: Auto Operation Stops Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: During automatic operation, if the ignition switch is turned ON-->START, the automatic operation is suspended. When the ignition switch returns to ON, it resumes.
