Child Lockout Switch System Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHILD LOCKOUT SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. Set child lockout switch in LOCK position and close door.
3. While operating the sliding door in the open direction, check voltage between sliding door control unit connector terminal 16 and ground.

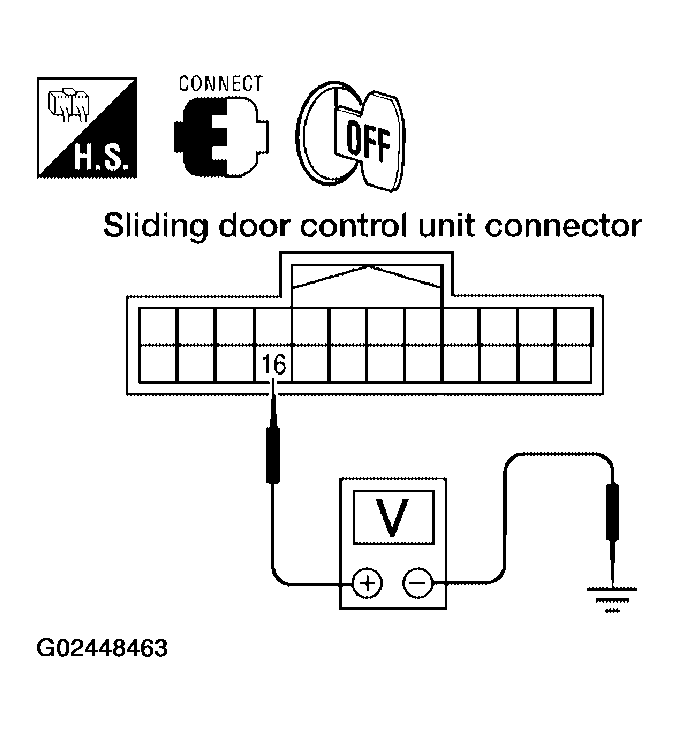

  Fig 1: Checking Voltage Between Sliding Door Control Unit Connector Terminal 16 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

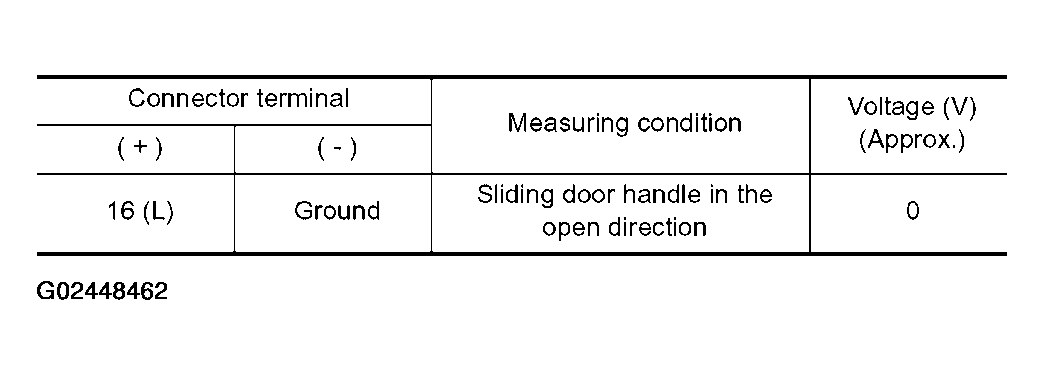

  Fig 2: Voltage Specifications Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Switch is OK.
- NG: GO TO 2.
CHILD LOCKOUT SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door remote control switch and sliding door control unit.
2. Check continuity between sliding door remote control switch connector terminal 2 and sliding door control unit connector terminal 16.

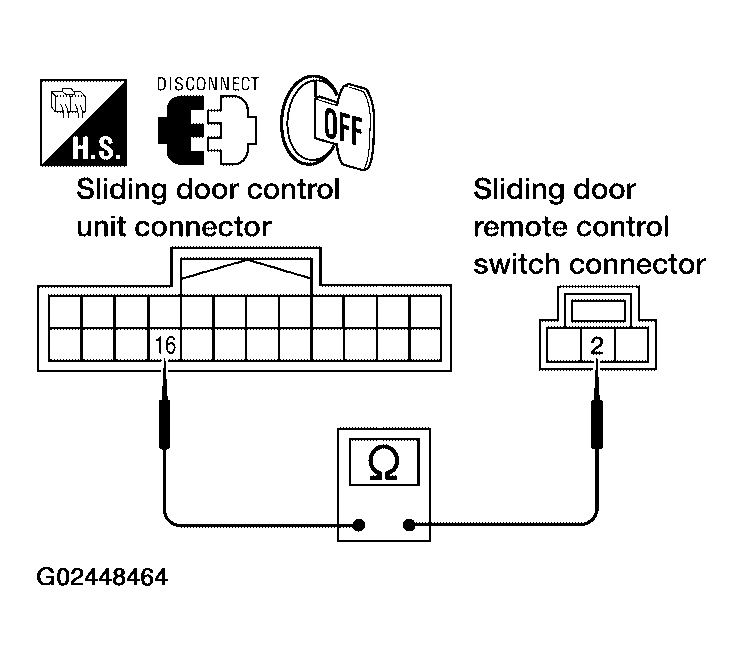

  Fig 3: Checking Continuity Between Sliding Door Remote Control Switch Connector Terminal 2 & Sliding Door Control Unit Connector Terminal 16
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 2 (L) - 16 (L): Continuity should exist.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace harness.
CHILD LOCKOUT SWITCH GROUND INSPECTION
1. Close the sliding door.
2. Check continuity between sliding door remote control switch connector terminal 3 and ground.

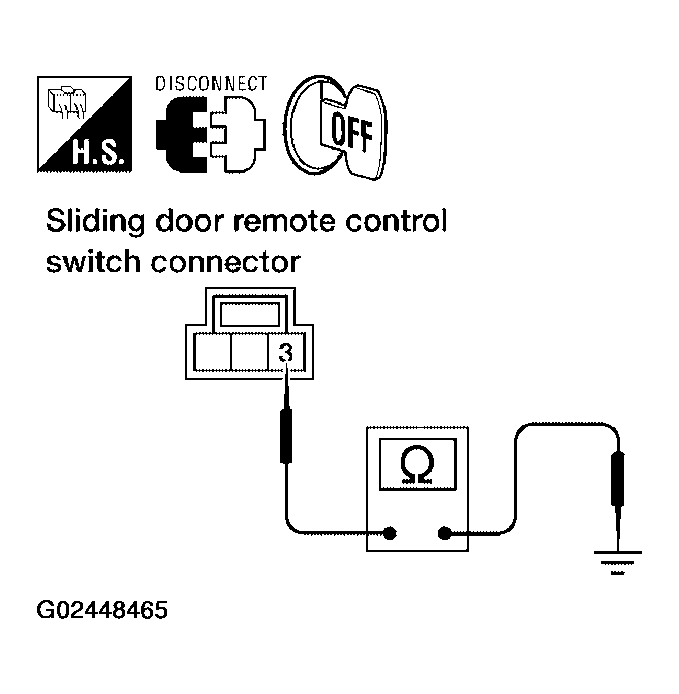

  Fig 4: Checking Continuity Between Sliding Door Remote Control Switch Connector Terminal 3 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 3 (Y) - Ground: Continuity should exist.
OK or NG
- OK: Replace the sliding door remote control switch.
- NG: Repair or replace harness.
