Operating Check Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Operating check mode allows self-diagnosis of the automatic sliding door system.

To activate operating check mode on the automatic sliding door, perform the following steps:

Turn ignition switch OFF.
Turn automatic door main switch OFF (system cancelled).
Place A/T selector lever in P position.
Open sliding door RH or LH manually.
Have an assistant press and hold the sliding door open/close switch RH or LH.
While the assistant continues to hold the sliding door open/close switch RH or LH, turn ignition switch ON (DO NOT start engine).
After approximately 5 seconds, the back door warning chime will sound for 0.5 seconds.
Release the sliding door open/close switch RH or LH.
Within 8 seconds of the back door warning chime sounding, press the automatic door main sliding door open/close switch RH or LH 5 times in rapid succession.
After approximately 5 seconds, the back door warning chime will sound for 1 second.
Release the automatic door main sliding door open/close switch RH or LH.
Immediately close the sliding door RH or LH manually.
Turn automatic door main switch ON.
Open and close the back door with the automatic door main sliding door open/close switch RH or LH to activate operating check mode.
Self-diagnosis results are indicated by the back door warning chime.

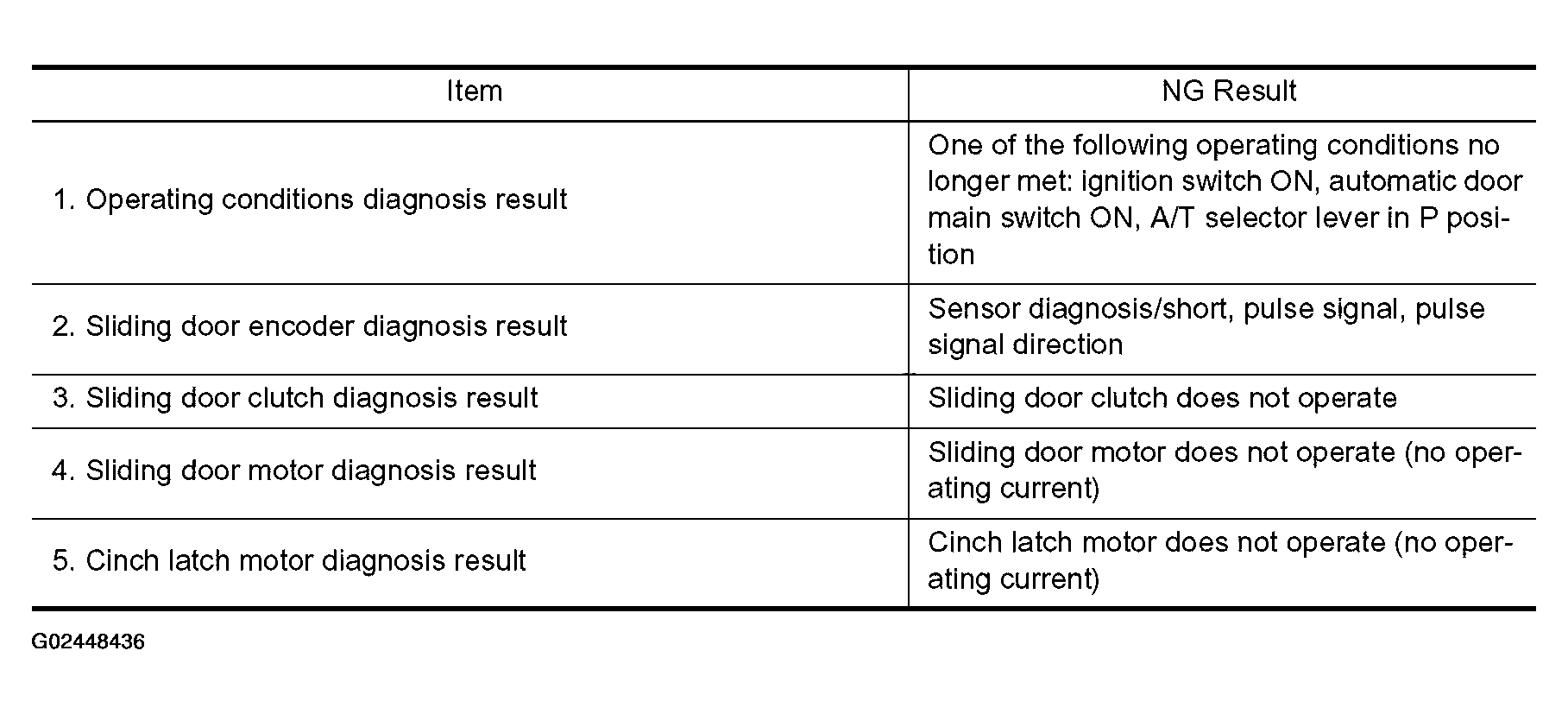

Fig 1: Operating Check Mode Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

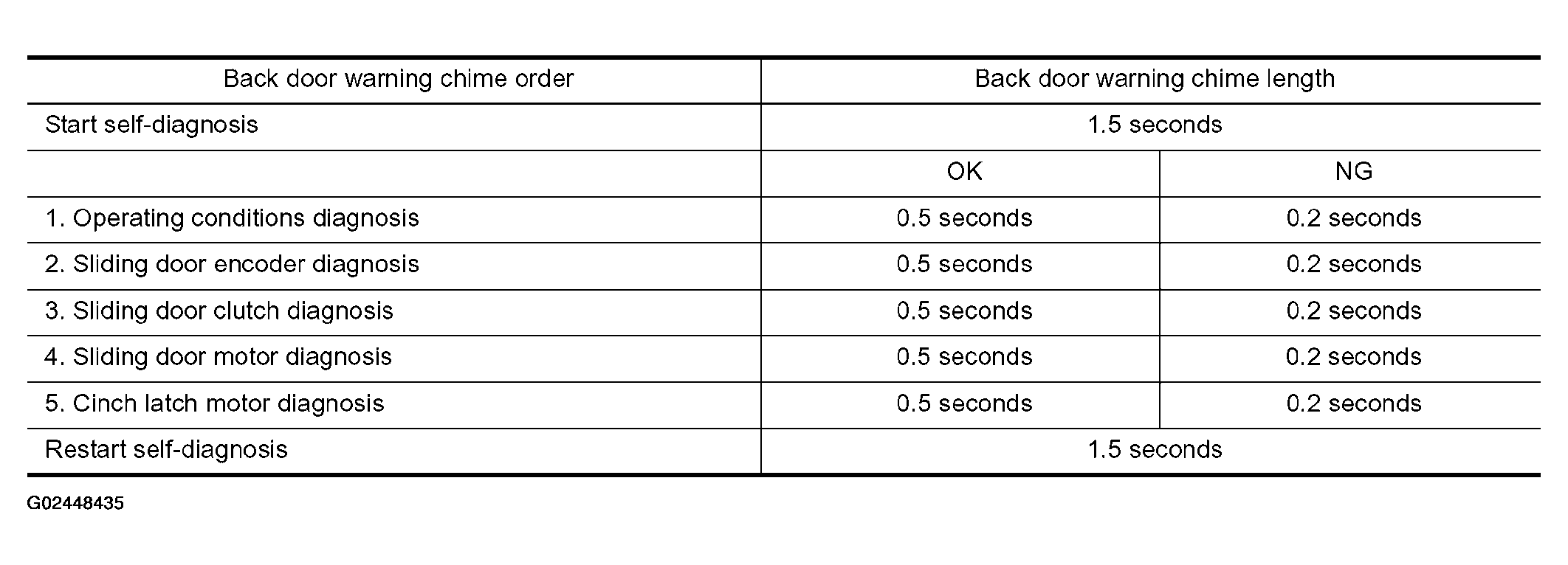

Fig 2: Operating Check Mode Description Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Turn ignition switch OFF to end input signal check mode.
