Sliding Door Remote Control Switch System Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SLIDING DOOR REMOTE CONTROL SWITCH FUNCTION INSPECTION
Check sliding door remote control switch operation.

OK or NG
- OK: Sliding door remote control switch is OK.
- NG: GO TO 2.
SLIDING DOOR REMOTE CONTROL SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. Close the sliding door.
3. While operating the sliding door remote control switch, check voltage between sliding door latch control unit connector terminal 5 and ground.

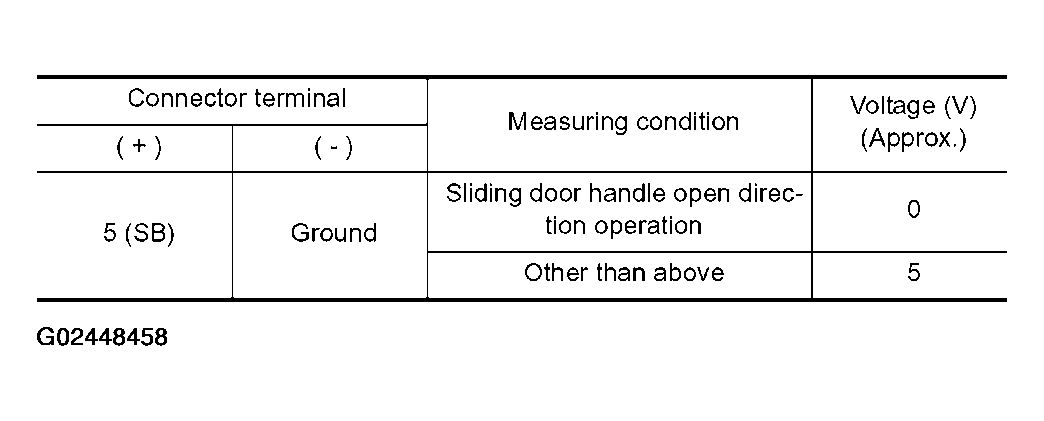

  Fig 1: Voltage Specifications Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

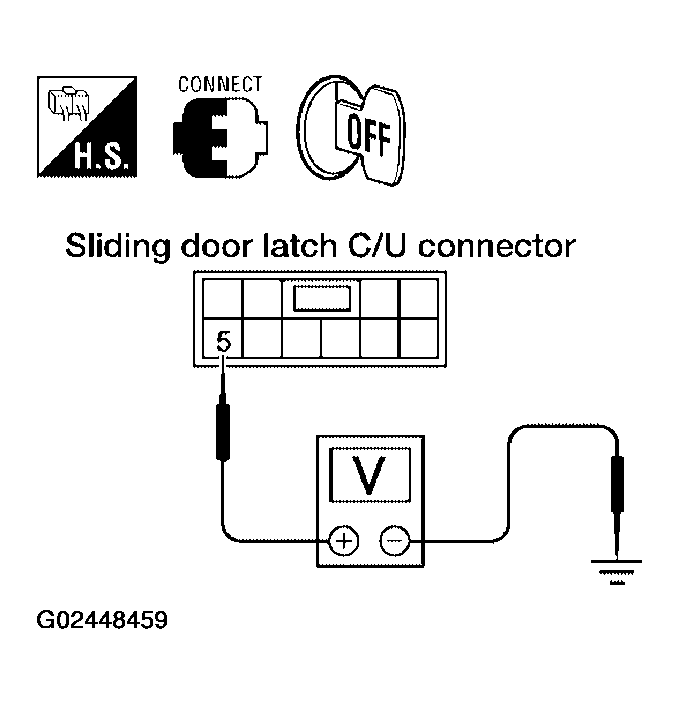

  Fig 2: Checking Voltage Between Sliding Door Latch Control Unit Connector Terminal 5 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Sliding door remote control switch is OK.
- NG: GO TO 3.
SLIDING DOOR REMOTE CONTROL SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door remote control switch and sliding door latch control unit.
2. Check continuity between sliding door remote control switch connector terminal 1 and sliding door latch control unit connector terminal 5.

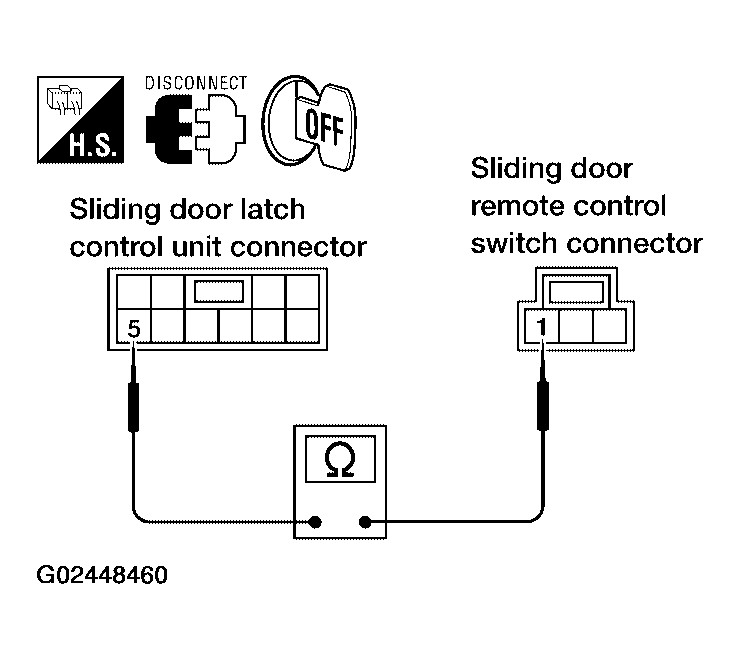

  Fig 3: Checking Continuity Between Sliding Door Remote Control Switch Connector Terminal 1 & Sliding Door Latch Control Unit Connector Terminal 5
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 1 (SB) - 5 (SB): Continuity should exist.
OK or NG
- OK: GO TO 4.
- NG: Repair or replace harness.
SLIDING DOOR REMOTE CONTROL SWITCH GROUND INSPECTION
1. Close the sliding door.
2. Check continuity between sliding door remote control switch connector terminal 3 and ground.

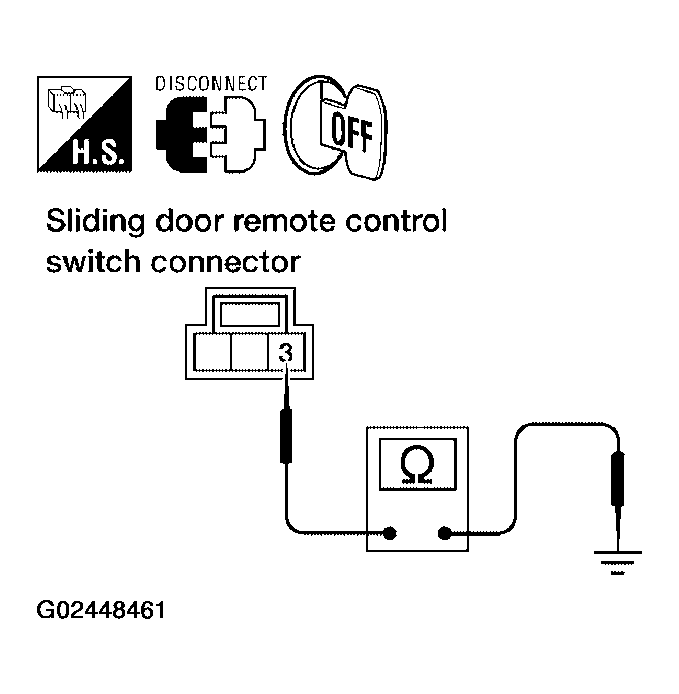

  Fig 4: Checking Continuity Between Sliding Door Remote Control Switch Connector Terminal 3 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 3 (Y) - Ground: Continuity should exist.
OK or NG
- OK: Replace the sliding door remote control switch.
- NG: Repair or replace harness.
