Front Pillar

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Work after rear hoodledge reinforcement has been removed.
Service Joint

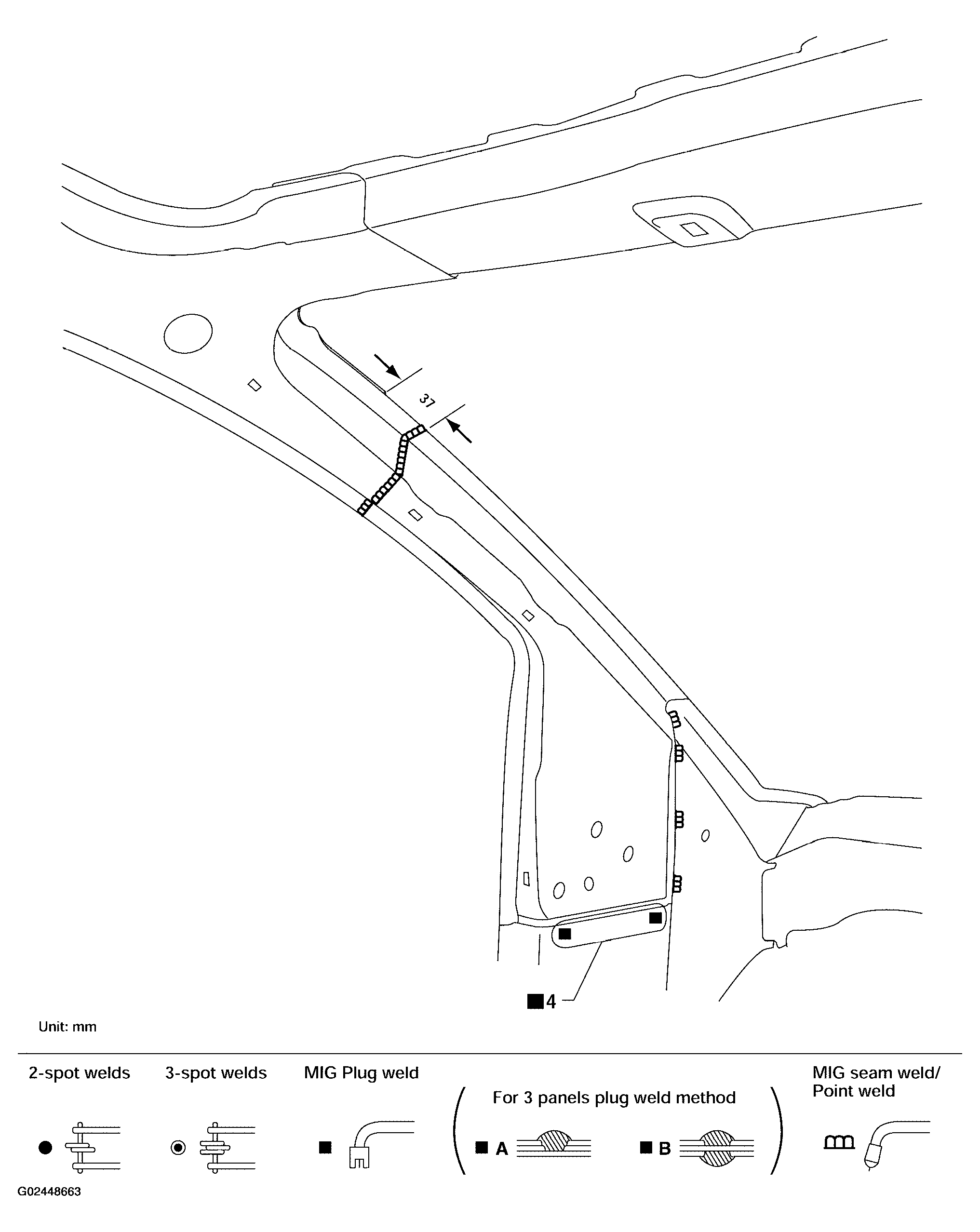

Fig 1: Identifying Front Pillar Service Joint (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

Service Joint

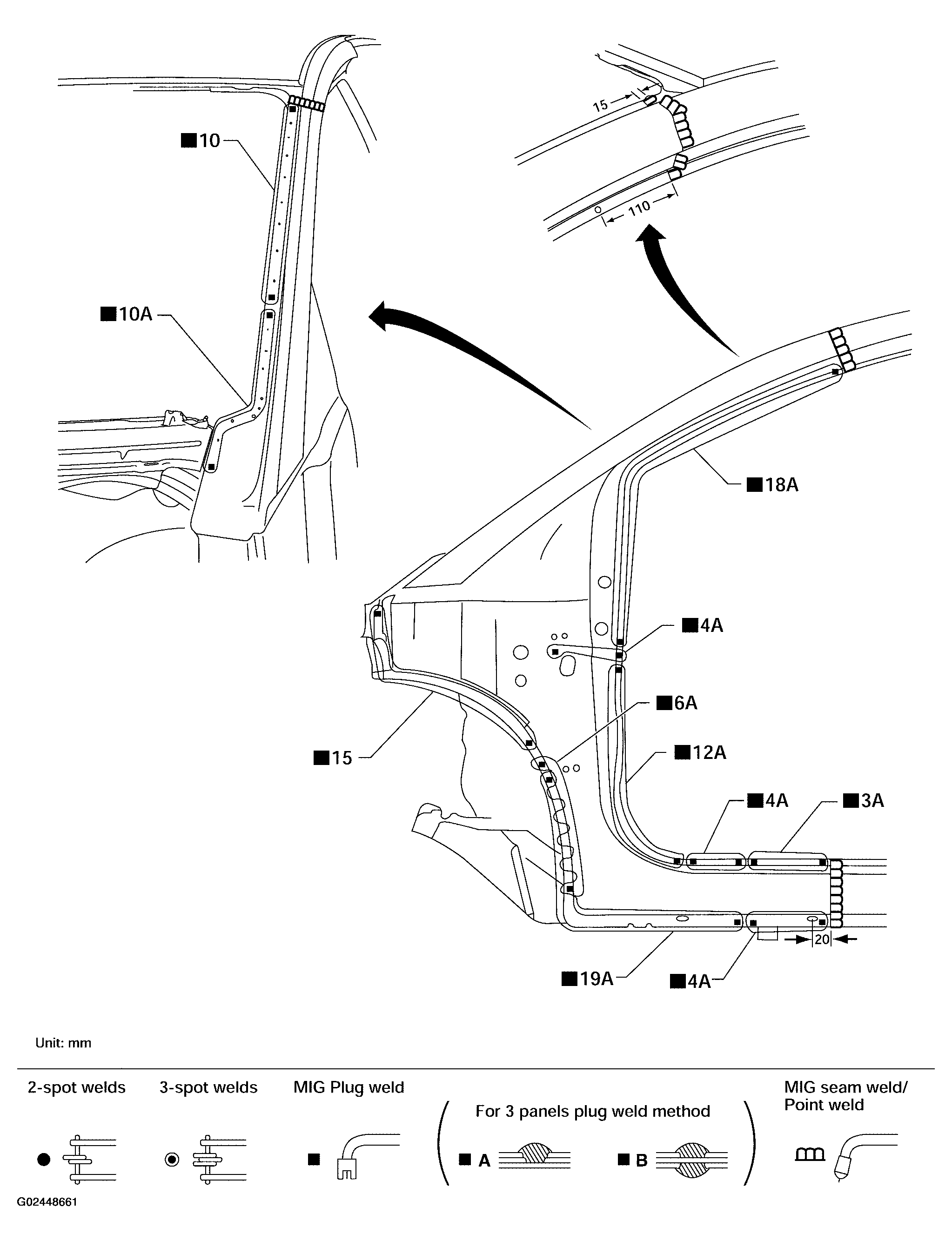

Fig 2: Identifying Front Pillar Service Joint (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

Service Joint

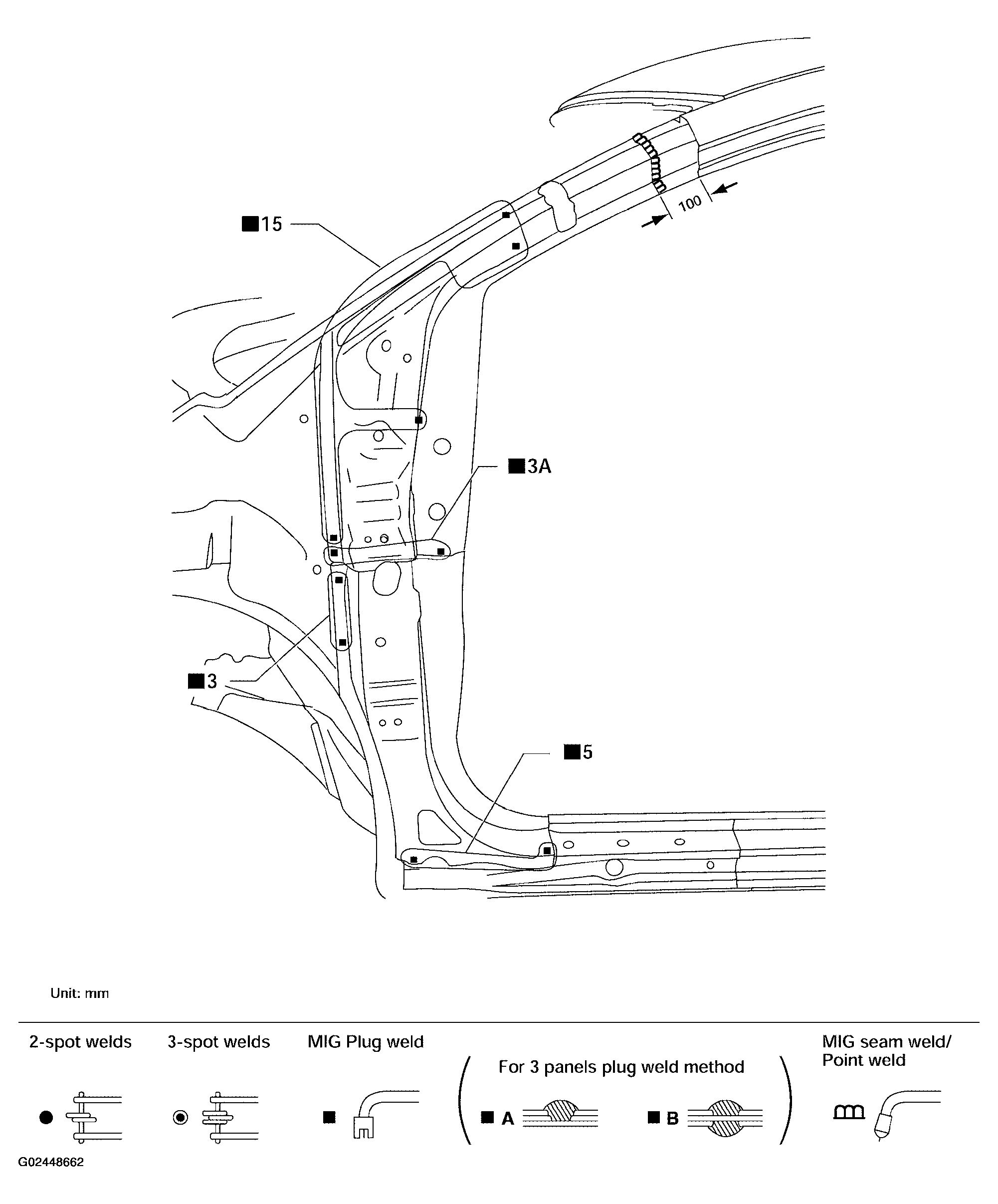

Fig 3: Identifying Front Pillar Service Joint (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
