Front Power Window Motor RH Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
1. Connect power window and door lock/unlock switch RH.
2. Turn ignition switch ON.
3. Check voltage between power window and door lock/unlock switch RH connector D105 terminals 8, 9 and ground.

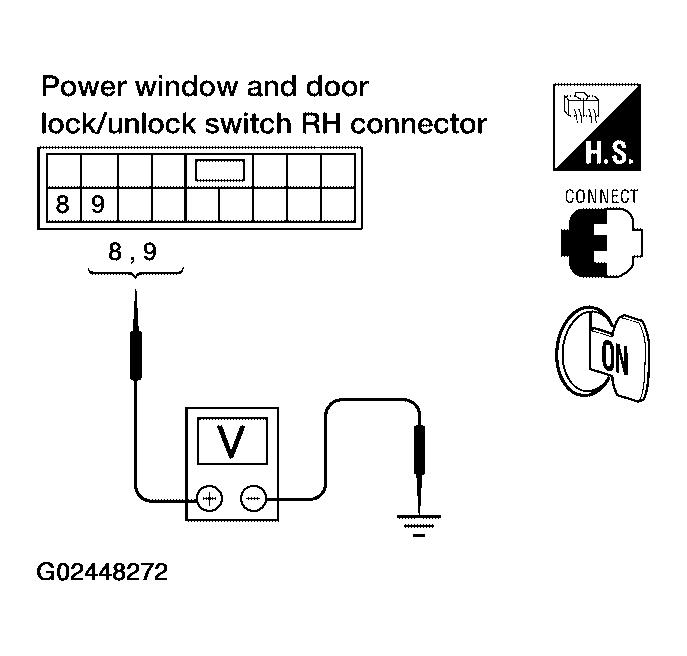

  Fig 1: Checking Voltage Between Connector D105 Terminal 8, 9 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

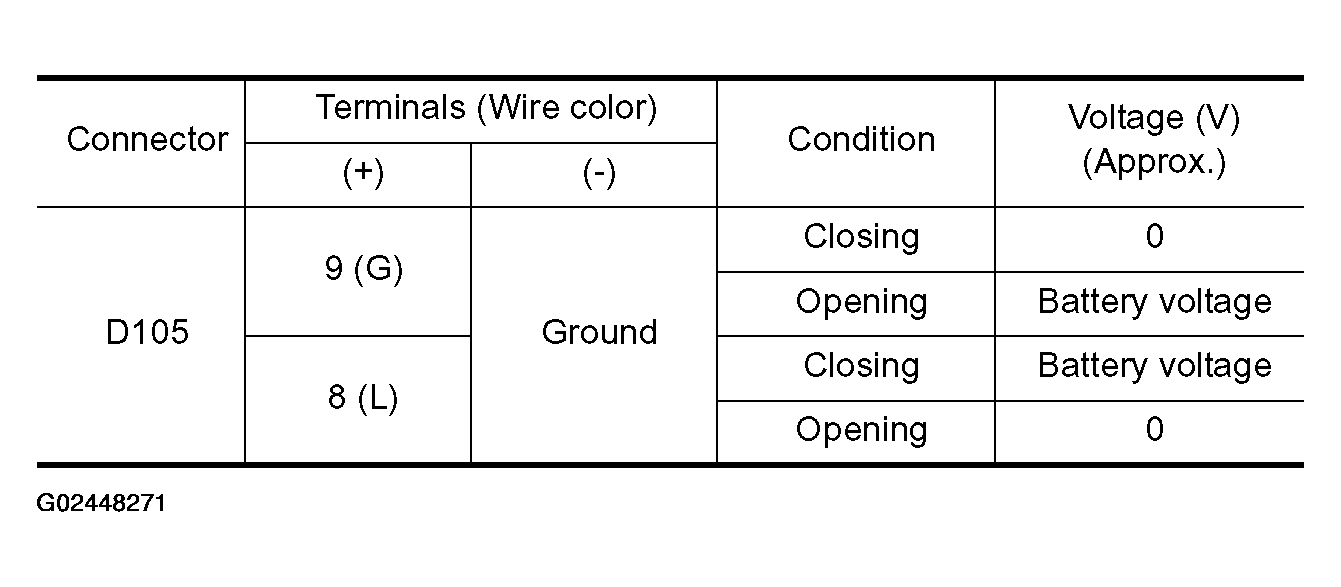

  Fig 2: Terminals Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Replace power window and door lock/unlock switch RH. Refer to "FRONT DOOR ".
CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
3. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 8, 9 and front power window motor RH connector D104 terminals 1, 3.

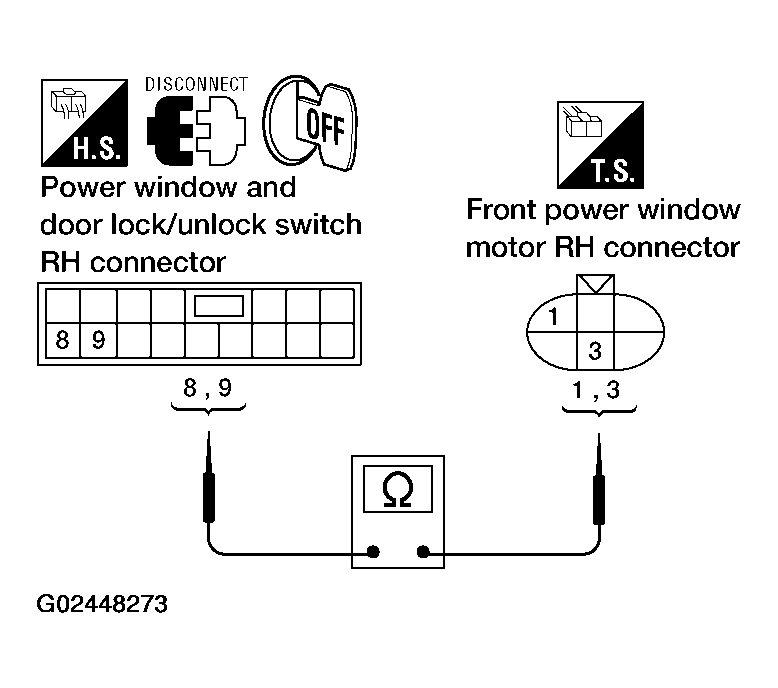

  Fig 3: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Connector D105 Terminals 8 & 9 And Power Window Motor RH Connector D104 Terminals 1 & 3
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 8 (L) - 3 (L): Continuity should exist.
  - 9 (G) - 1 (G): Continuity should exist.
OK or NG
- OK: Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
- NG: Repair or replace harness.
