Limit Switch Circuit Check Front RH

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH LIMIT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window motor RH connector D105 terminal 15 and ground.

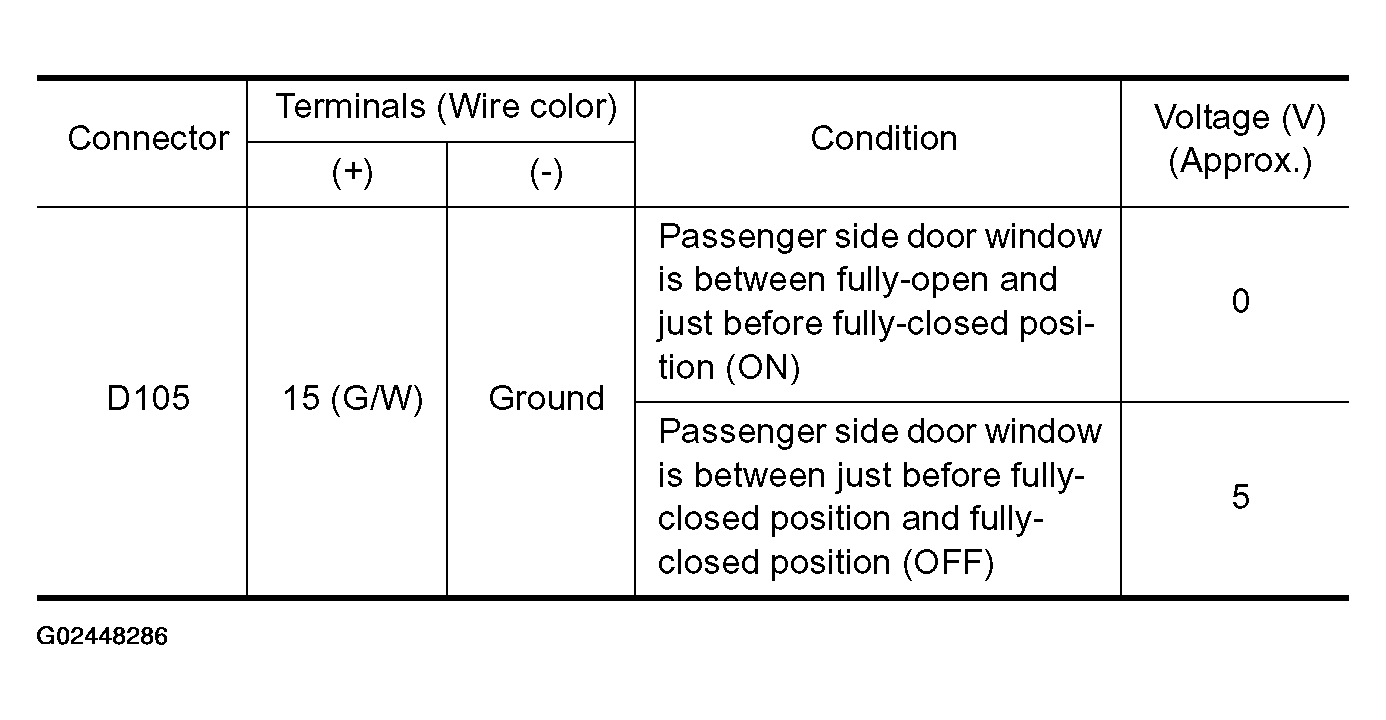

      Fig 1: Terminals Voltage Reference Chart
      G02448286Courtesy of NISSAN MOTOR CO., U.S.A.

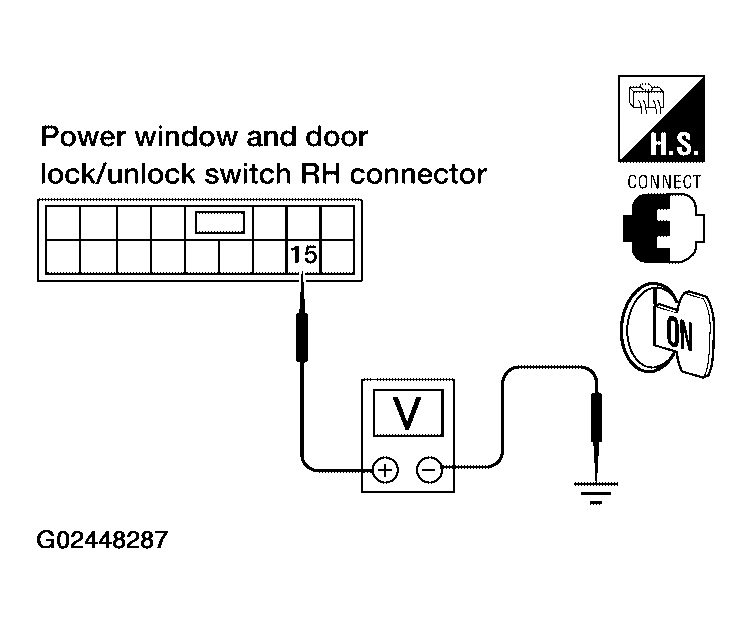

      Fig 2: Checking Voltage Between Front Power Window Motor RH Connector D105 Terminal 15 & Ground
      G02448287Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Limit switch circuit is OK.
    • NG: GO TO 2.
  2. CHECK FRONT POWER WINDOW MOTOR RH LIMIT SIGNAL
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH.
    3. Check voltage between front power window motor RH connector D104 terminal 5 and ground.

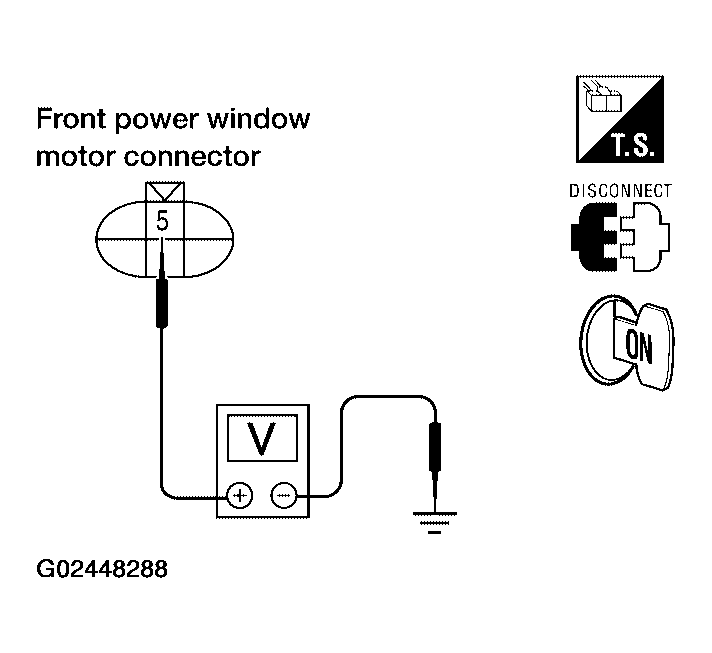

      Fig 3: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 5 & Ground
      G02448288Courtesy of NISSAN MOTOR CO., U.S.A.
      • 5 (G/W) - Ground: Approx. 5V

    OK or NG

    • OK: GO TO 3.
    • NG: GO TO  5.
  3. CHECK LIMIT SWITCH GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH.
    3. Check continuity between front power window motor RH connector D104 terminal 6 and ground.
      • 6 (W/B) - Ground: Continuity should exist.

    OK or NG

    • OK: Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
    • NG: GO TO 4.

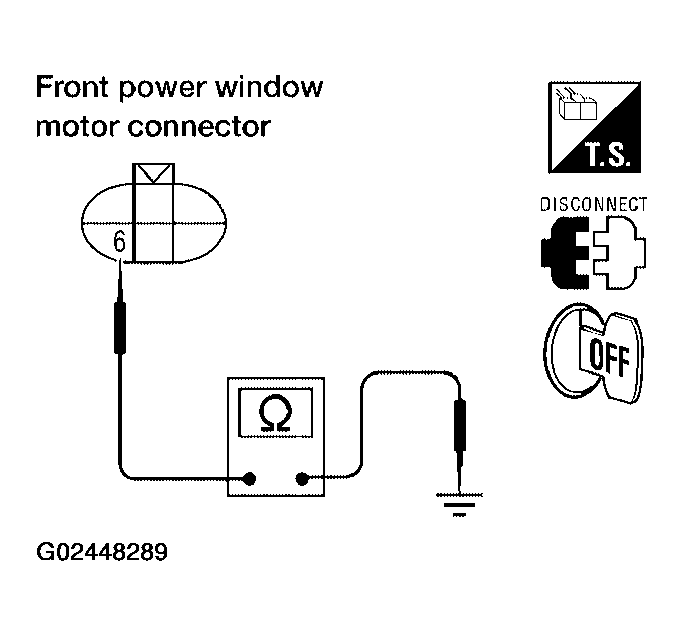

      Fig 4: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 6 & Ground
      G02448289Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK HARNESS CONTINUITY
    1. Disconnect front power window and door lock/unlock switch RH.
    2. Check continuity between front power window motor RH connector D104 terminal 6 and power window and door lock/unlock switch RH connector D105 terminal 3.

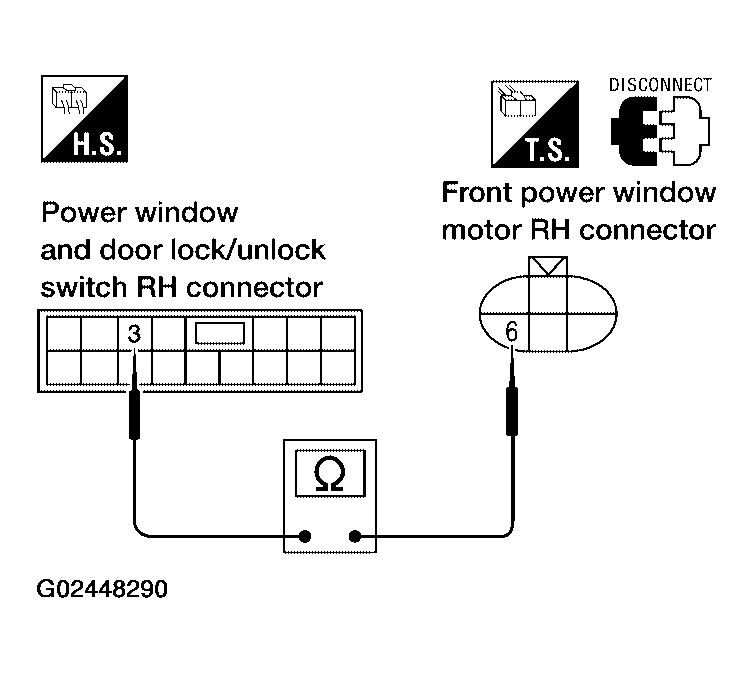

      Fig 5: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 6 And Switch RH Connector D105 Terminal 3
      G02448290Courtesy of NISSAN MOTOR CO., U.S.A.
      • 6 (W/B) - 3 (W/B): Continuity should exist.

    OK or NG

    • OK: Replace power window and door lock/unlock switch RH. Refer to "FRONT DOOR ".
    • NG: Repair or replace harness.
  5. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect front power window and door lock/unlock switch RH.
    3. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 15 and front power window motor RH connector D104 terminal 5.

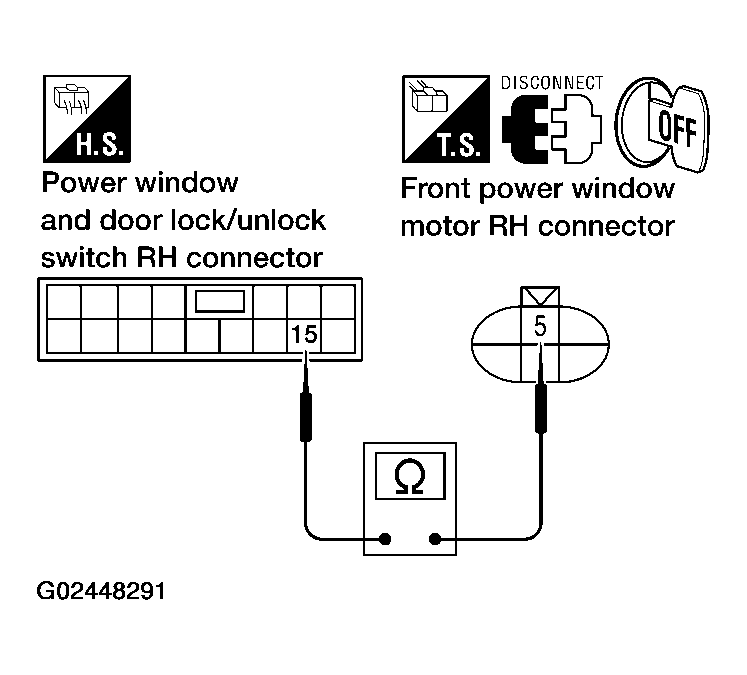

      Fig 6: Checking Continuity Between Switch RH Connector D105 Terminal 15 And Window Motor RH Connector D104 Terminal 5
      G02448291Courtesy of NISSAN MOTOR CO., U.S.A.
      • 15 (G/W) - 5 (G/W): Continuity should exist.

    OK or NG

    • OK: Replace power window and door lock/unlock switch RH. Refer to "FRONT DOOR ".
    • NG: Repair or replace harness.
