CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

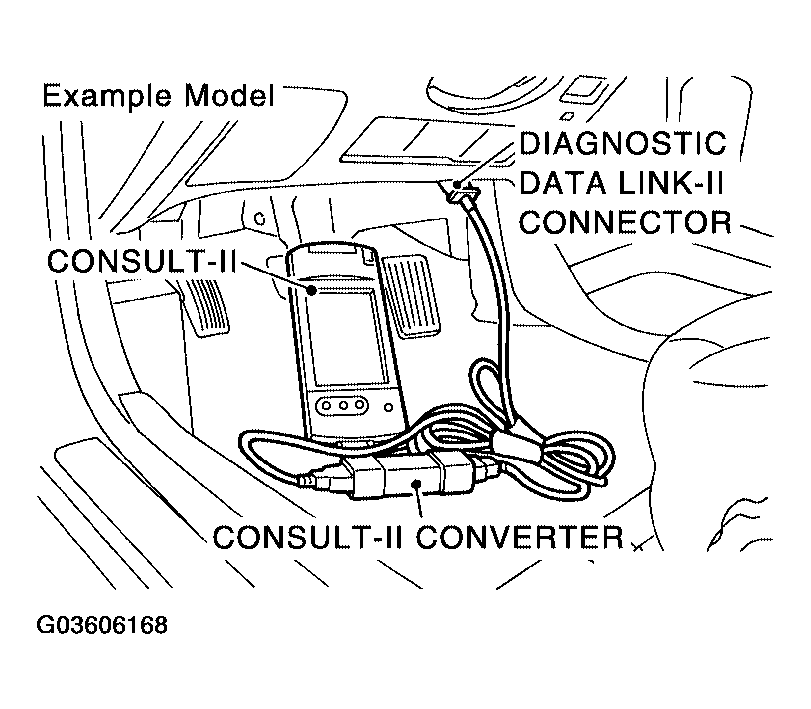

Fig 1: Connecting CONSULT-II And CONSULT-II CONVERTER To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
If necessary, turn on the ignition switch.
Touch "START (NISSAN BASED VECL)" or "System Shortcut ENGINE) on the screen.

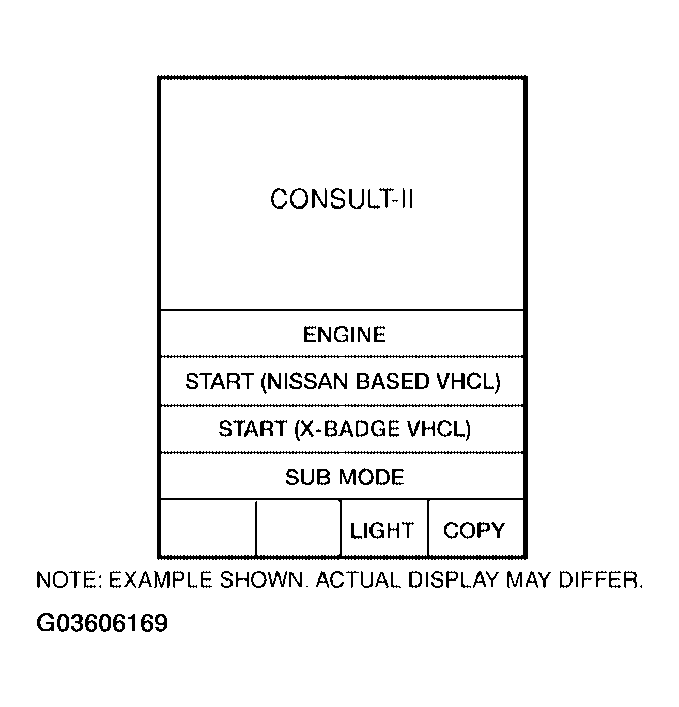

Fig 2: Display Start (Nissan Based VECL)
Courtesy of NISSAN MOTOR CO., U.S.A.
