Terminals And Reference Value For Front Air Control

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

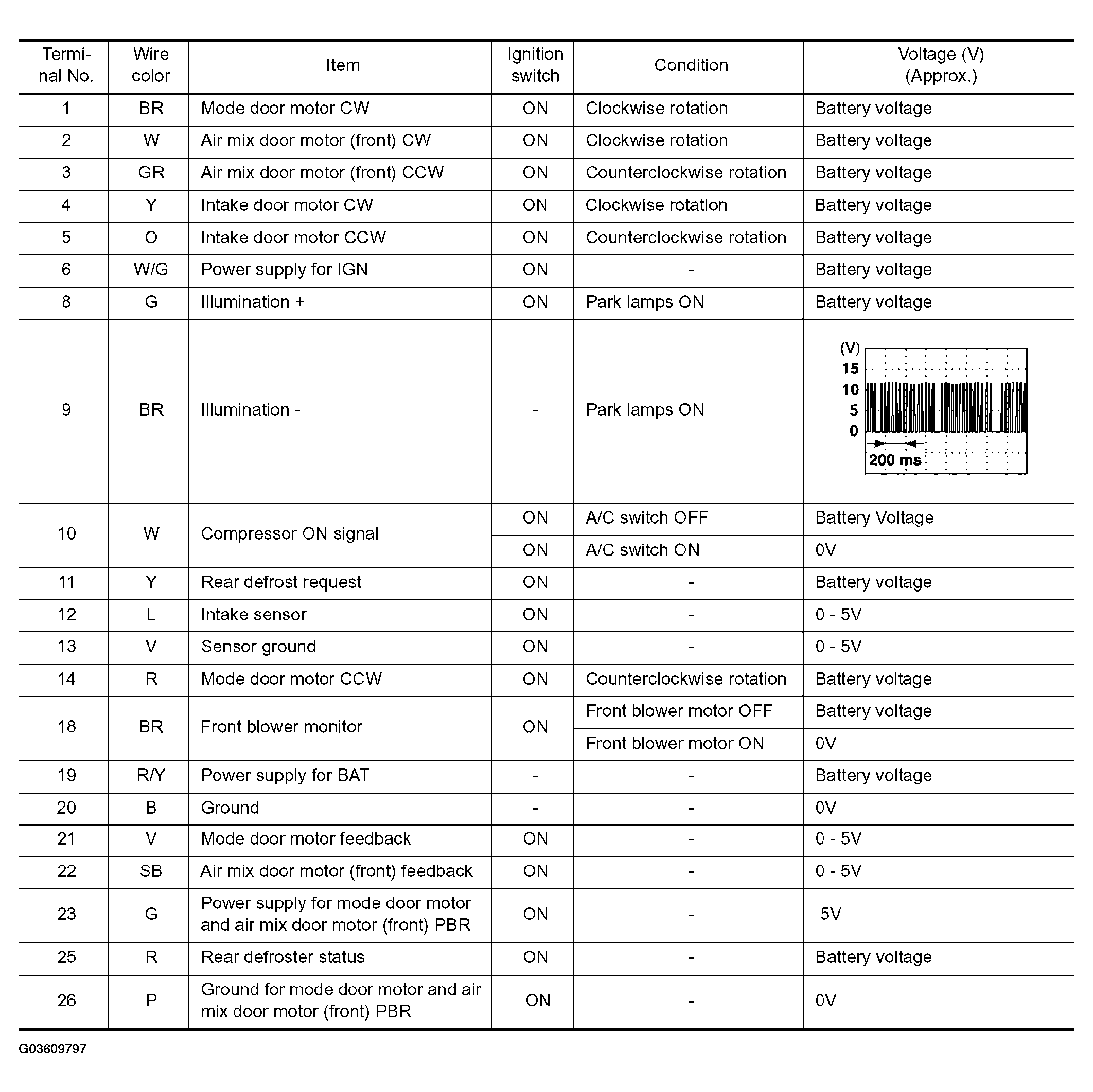

Fig 1: Terminals And Reference Value For Front Air Control Table
G03609797Courtesy of NISSAN MOTOR CO., U.S.A.
