Shift Control Components

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear extension (or OD gear case) and transmission case. Refer to "CASE COMPONENTS ".
  2. Install Tool to adapter plate, and then position in a vise.
    CAUTION: Do not directly secure mating surface of adapter plate in a vise.

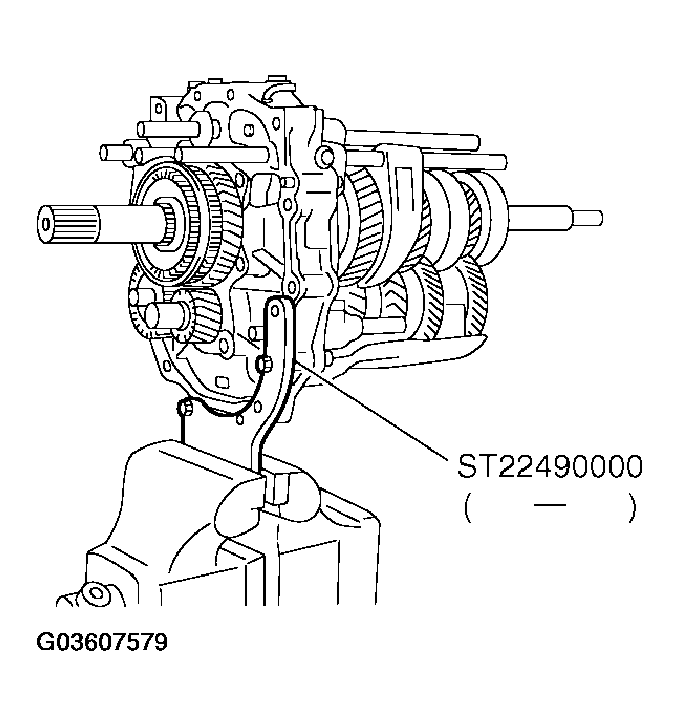

    Fig 1: Installing Tool To Adapter Plate
    G03607579Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove baffle plate bolts, and then remove baffle plate from adapter plate.

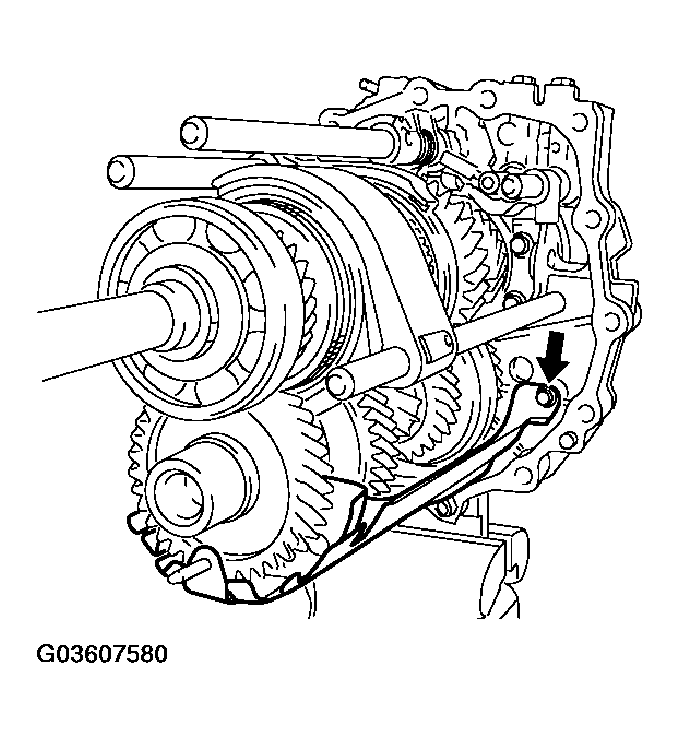

    Fig 2: Removing Baffle Plate Bolts
    G03607580Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove check ball plugs, check ball springs and check balls from adapter plate.

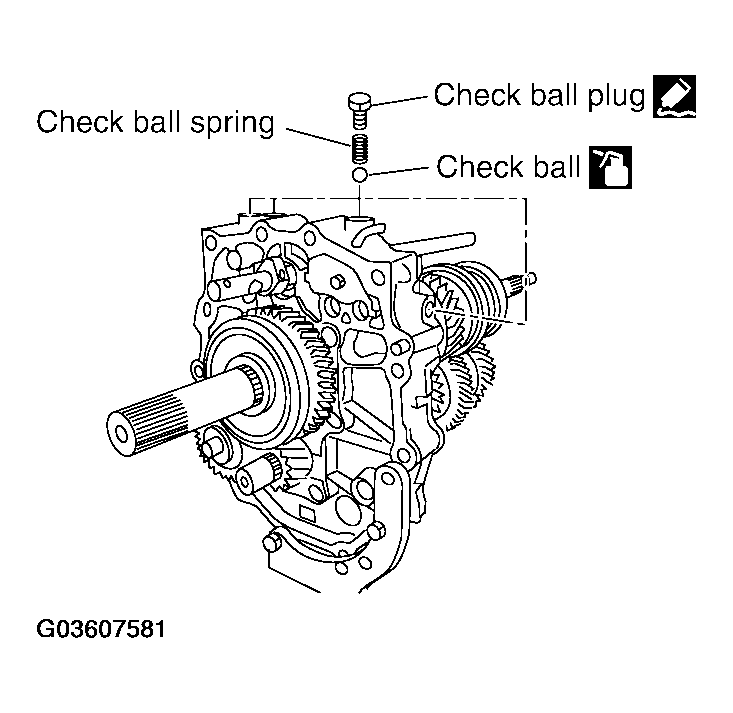

    Fig 3: Removing Check Ball Plugs
    G03607581Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove 3rd-4th control lever bolts, and then remove 3rd-4th control lever and shifter cap from adapter plate.

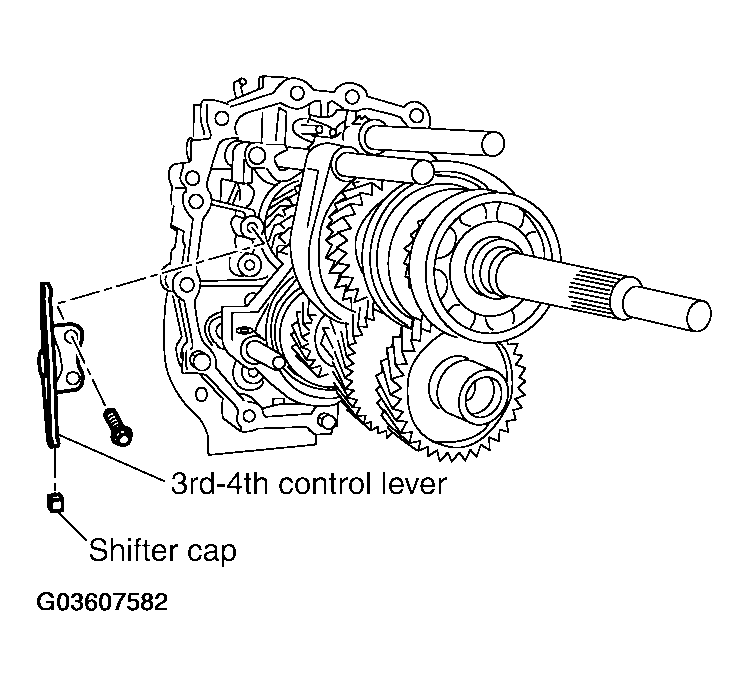

    Fig 4: Removing 3Rd-4Th Control Lever Bolts
    G03607582Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove retaining pin using suitable tool, and then remove 3rd - 4th fork rod bracket and 3rd-4th fork rod from adapter plate.

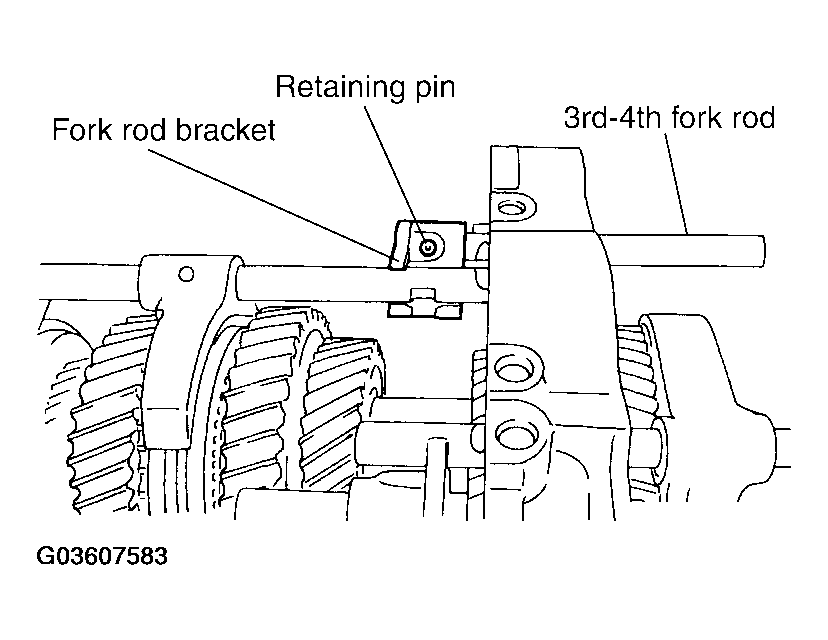

    Fig 5: Removing Retaining Pin
    G03607583Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove check balls and interlock pin from adapter plate.

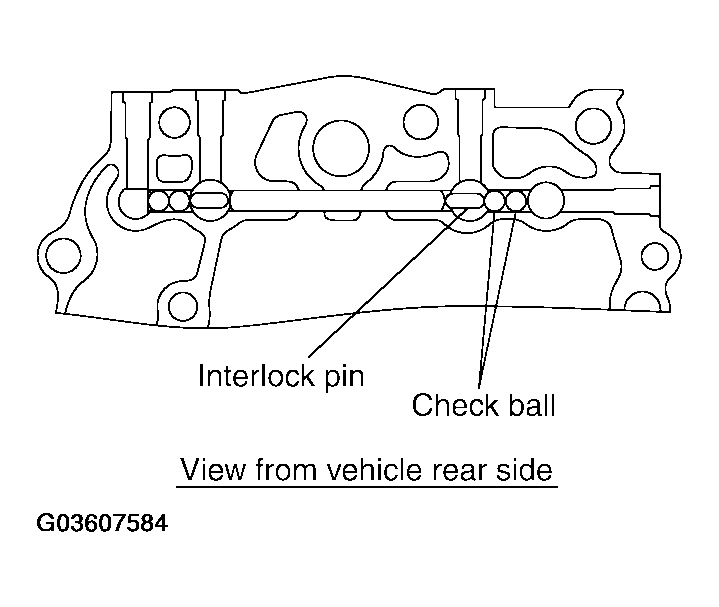

    Fig 6: Removing Check Balls And Interlock Pin From Adapter Plate
    G03607584Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove retaining pin using a suitable tool, and then remove 3rd-4th shift fork and 3rd-4th fork rod (reversal side) from adapter plate.

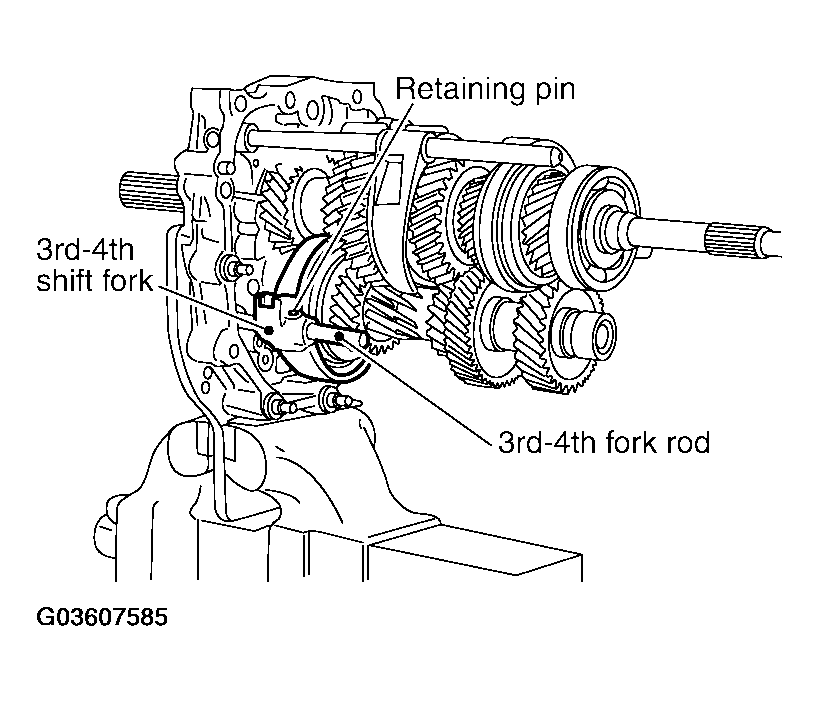

    Fig 7: Removing Retaining Pin
    G03607585Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove retaining pin using a suitable tool, and then remove 1st-2nd shift fork and 1st-2nd fork rod from adapter plate.

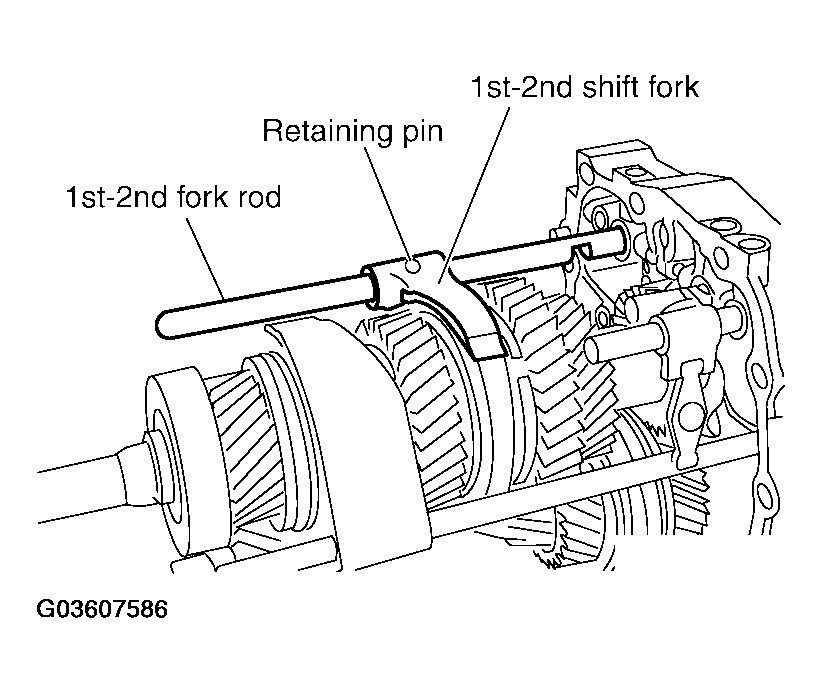

    Fig 8: Removing 1St-2Nd Shift Fork And 1St-2Nd Fork Rod From Adapter Plate
    G03607586Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove interlock plunger and interlock pin from adapter plate.

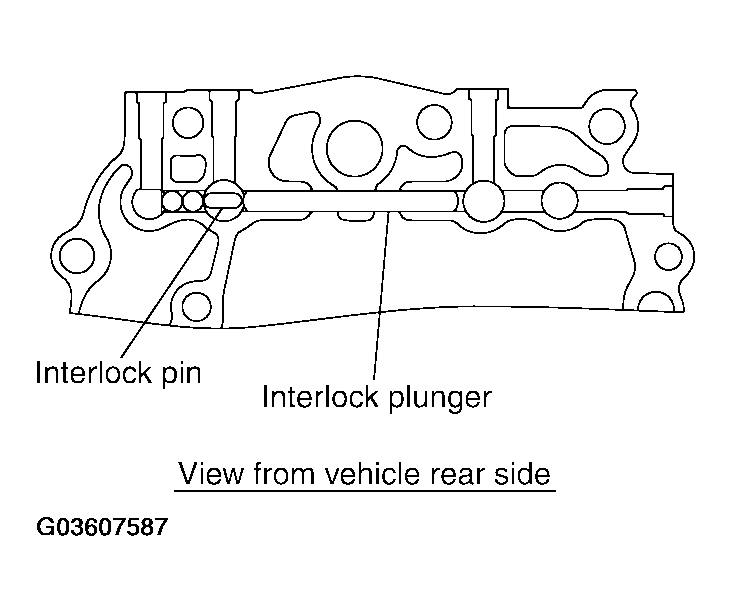

    Fig 9: Removing Interlock Plunger And Interlock Pin
    G03607587Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove retaining pin using suitable tool, and then remove reverse shift fork and reverse fork rod from adapter plate.

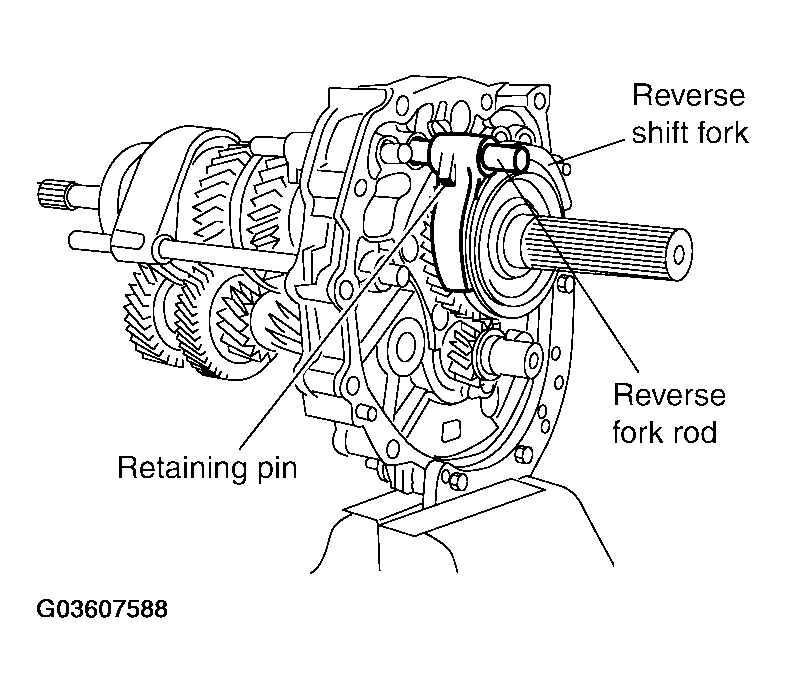

    Fig 10: Removing Retaining Pin
    G03607588Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove check balls from adapter plate.

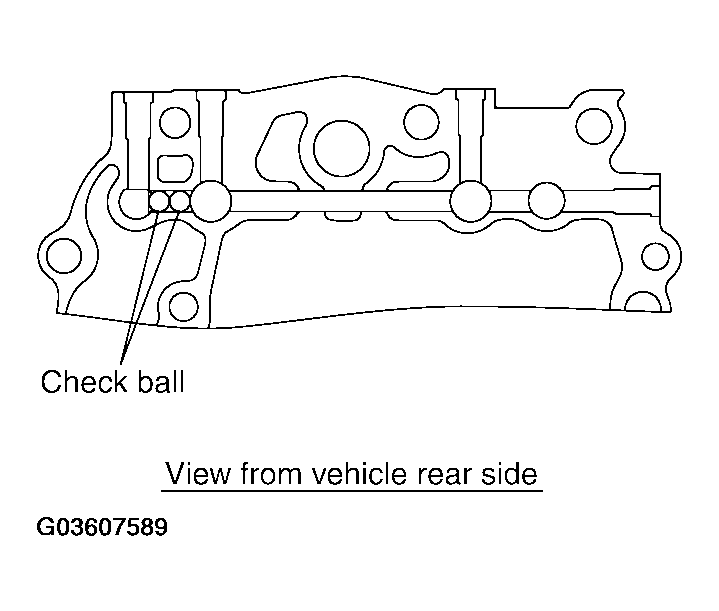

    Fig 11: Removing Check Balls From Adapter Plate
    G03607589Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove retaining pin using suitable tool, and then remove 5th-6th fork rod bracket and 5th-6th fork rod from adapter plate.

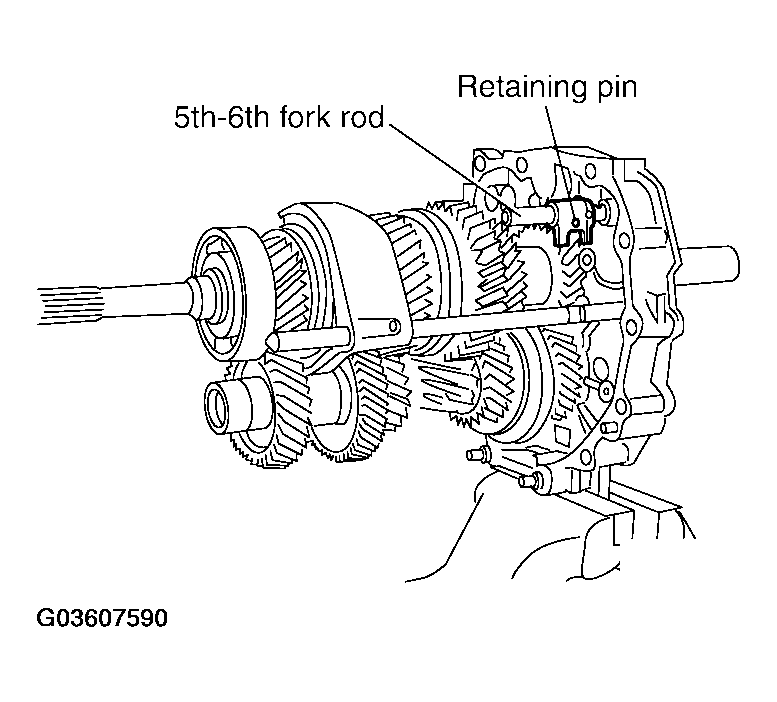

    Fig 12: Removing 5Th-6Th Fork Rod Bracket And 5Th-6Th Fork Rod
    G03607590Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove 5th-6th control lever bolts, and then remove 5th-6th control lever from adapter plate.

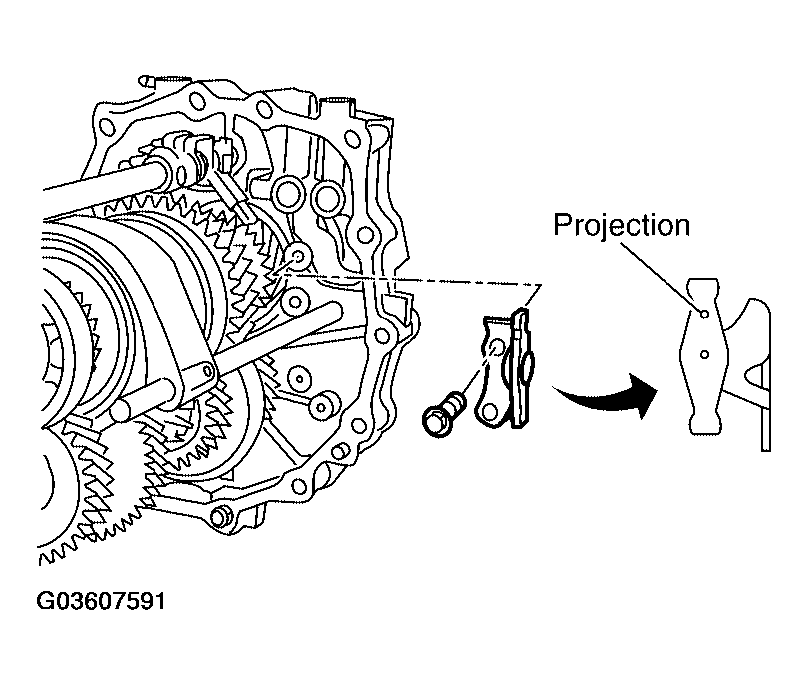

    Fig 13: Removing 5Th-6Th Control Lever Bolts
    G03607591Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove retaining pin using suitable tool, and then remove 5th-6th shift fork and 5th-6th fork rod (reversal side) from adapter plate.

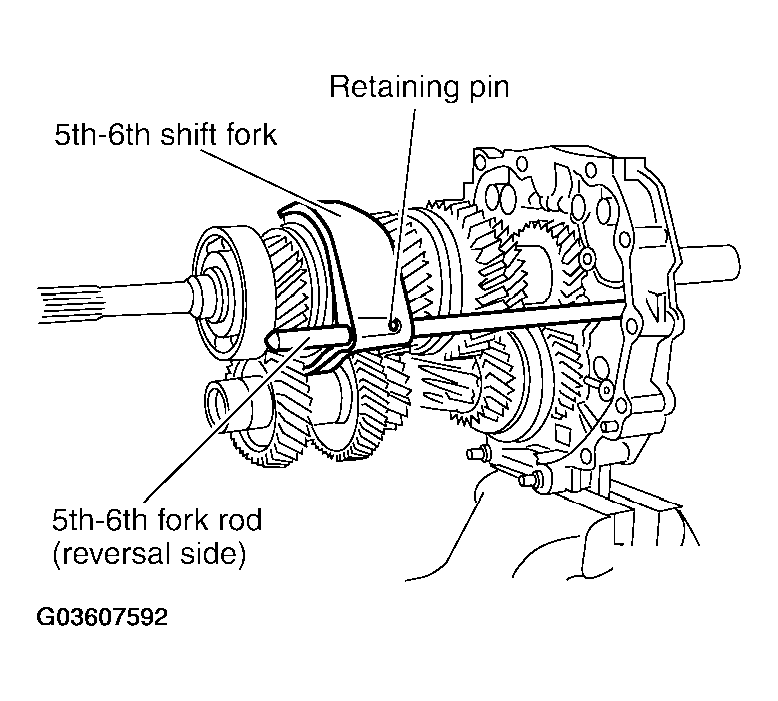

    Fig 14: Removing 5Th-6Th Shift Fork And 5Th-6Th Fork Rod
    G03607592Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove retaining pin using suitable tool, and then remove stopper ring from striking rod assembly.

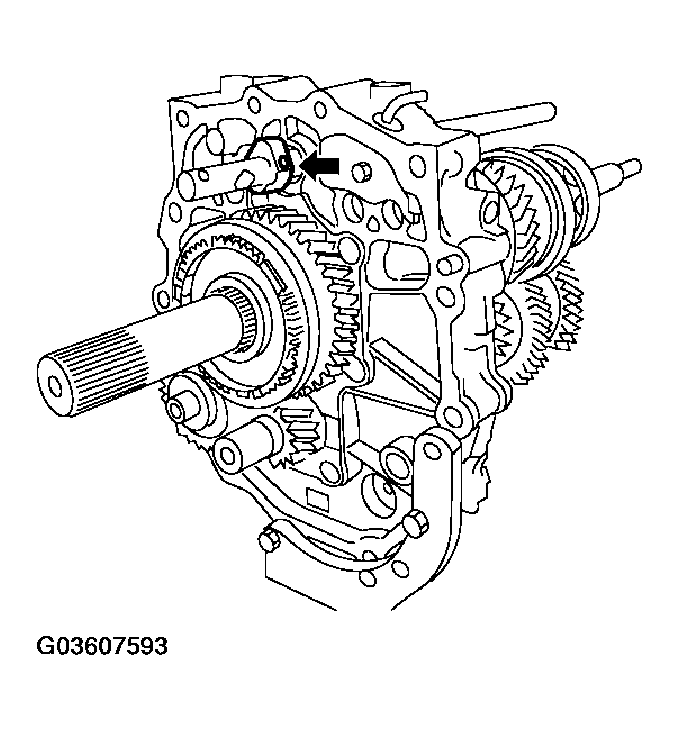

    Fig 15: Removing Retaining Pin
    G03607593Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Remove striking rod assembly from adapter plate.

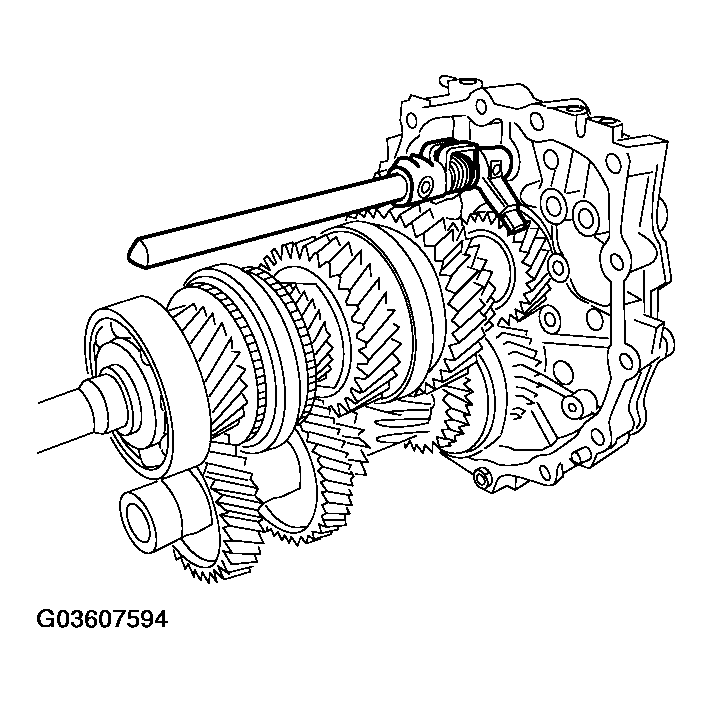

    Fig 16: Removing Striking Rod Assembly
    G03607594Courtesy of NISSAN MOTOR CO., U.S.A.
