Original Passenger Air Bag Module

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

For removal/installation of the direct-connect SRS connectors, refer to "DIRECT-CONNECT SRS COMPONENT CONNECTORS ".

CAUTION:

Always work from the side of or under front passenger air bag module.
After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to "SRS Operation Check ".

Service Replacement Passenger Air Bag Module

Install the front passenger air bag module to the instrument panel pad assembly.

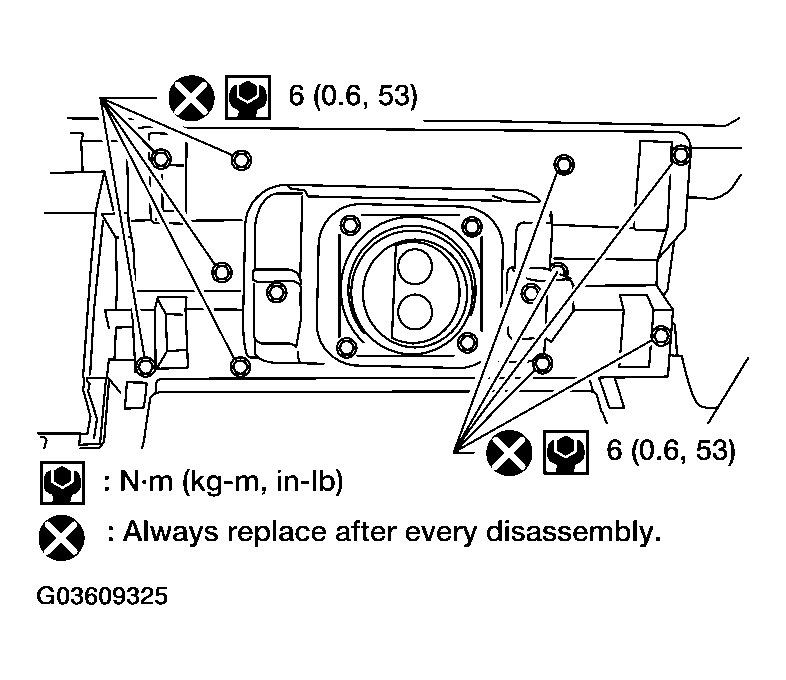

Fig 1: Installing Front Passenger Air Bag Module To Instrument Panel Pad Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the instrument panel assembly. Refer to "INSTRUMENT PANEL ".
Connect the front passenger air bag module harness connector to yellow 4-pin service replacement air bag connector and fasten connector to mounting bracket.
CAUTION:
- Always work from the side of or under front passenger air bag module.
- After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to "SRS Operation Check ".
