Key Switch
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

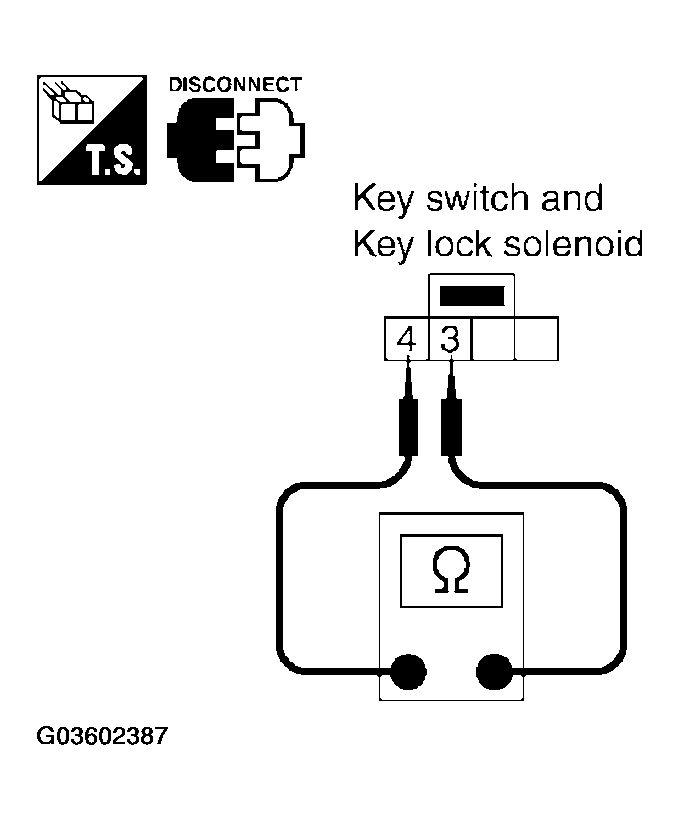

- Check continuity between terminals of the key switch and key lock solenoid.
KEY SWITCH CONTINUITY
| Condition |
Terminal No. (Wire color) |
Continuity |
| Key inserted |
3 (R/L) - 4 (R/L) |
Yes |
| Key withdrawn |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
