Column shift

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the column shift control. Refer to "STEERING COLUMN ".
  2. Remove the A/T cable clip lock plate and remove the cable from column shifter pin.

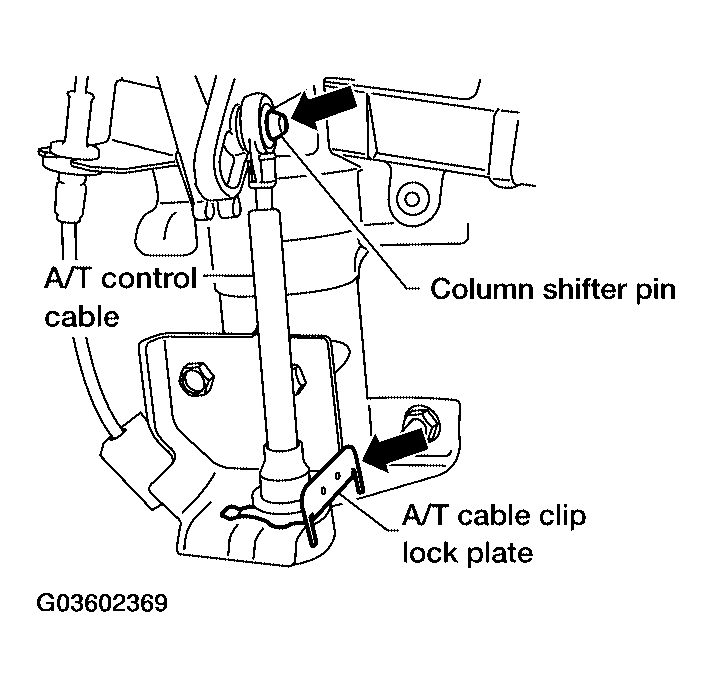

    Fig 1: Removing A/T Cable Clip Lock Plate
    G03602369Courtesy of NISSAN MOTOR CO., U.S.A.
