CHECK ACC POWER

With CONSULT-II

Check "ACC ON SW" in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

DATA MONITOR ITEM REFERENCE

Monitor Item	Condition
ACC ON SW	Ignition switch position is ACC	: ON
ACC ON SW	Ignition switch position is OFF	: OFF

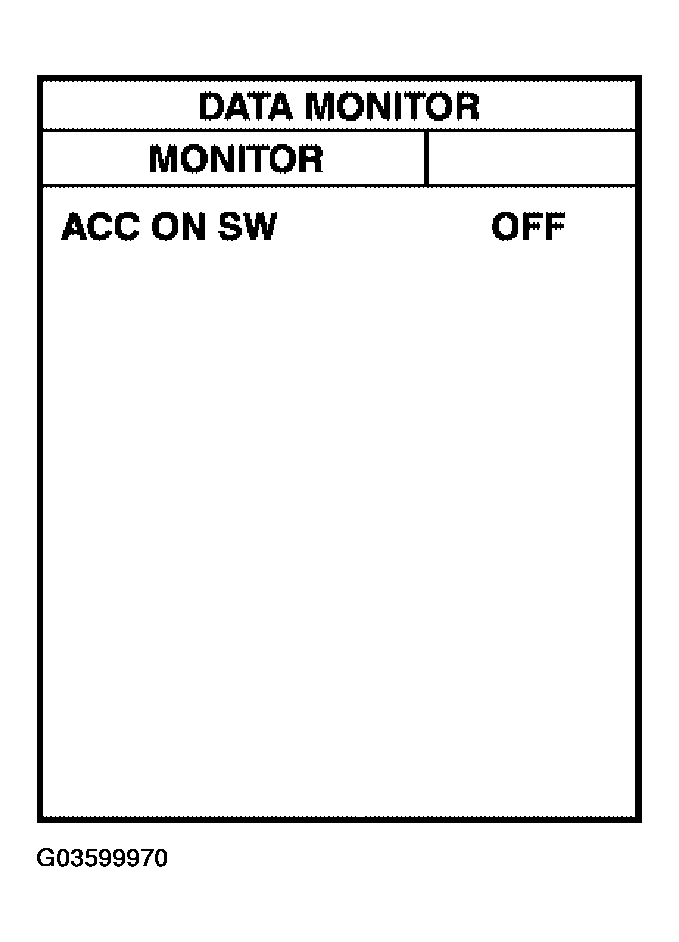

Fig 1: Checking "ACC ON SW" In DATA MONITOR Mode With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

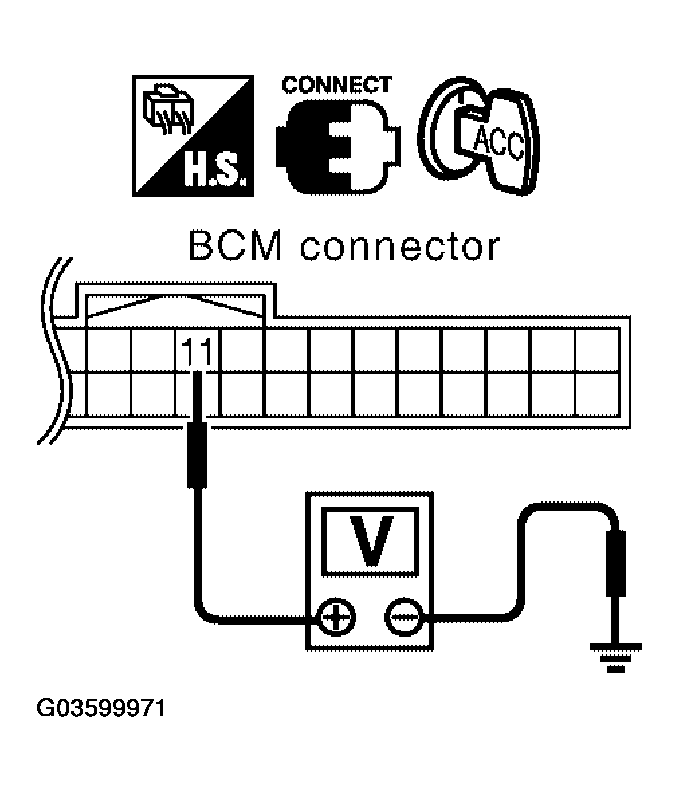

Fig 2: Checking Voltage Between BCM Connector M18 Terminal 11 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE BETWEEN BCM CONNECTOR M18 TERMINAL 11 AND GROUND REFERENCE

Connector	Terminal (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M18	11 (O)	Ground	ACC	Battery voltage
M18	11 (O)	Ground	OFF	0

OK or NG

OK : ACC power circuit is OK.
NG : Check the following.
- 10A fuse [No. 4, located in fuse block (J/B)]
- Harness for open or short.
