Remote Keyless Entry Receiver System Check
- REMOTE KEYLESS ENTRY RECEIVER SIGNAL
Check signal voltage waveform between BCM connector M18 terminal 20 and ground using an oscilloscope.
Condition:
Keyfob buttons released : Refer to " TERMINALS AND REFERENCE VALUE FOR BCM " .
Keyfob buttons pressed : Refer to " TERMINALS AND REFERENCE VALUE FOR BCM " .
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Remote keyless entry receiver signal power supply, ground and signal circuits are OK. Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- NG : GO TO 2.
- REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY INSPECTION

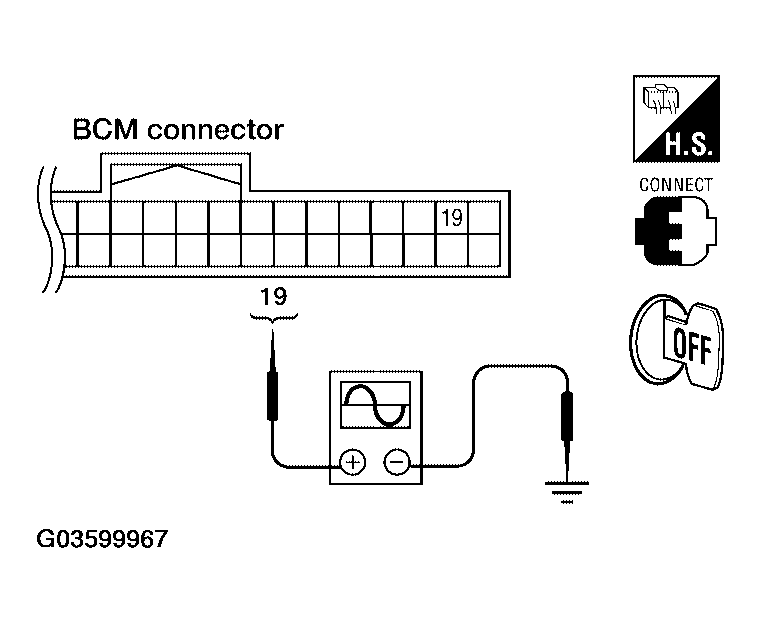

Check signal voltage waveform between BCM connector M18 terminal 19 and ground using an oscilloscope.
19 (V/W) - Ground : Refer to " TERMINALS AND REFERENCE VALUE FOR BCM " .
OK or NG
- OK : GO TO 3.
- NG : Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT INSPECTION (BCM)

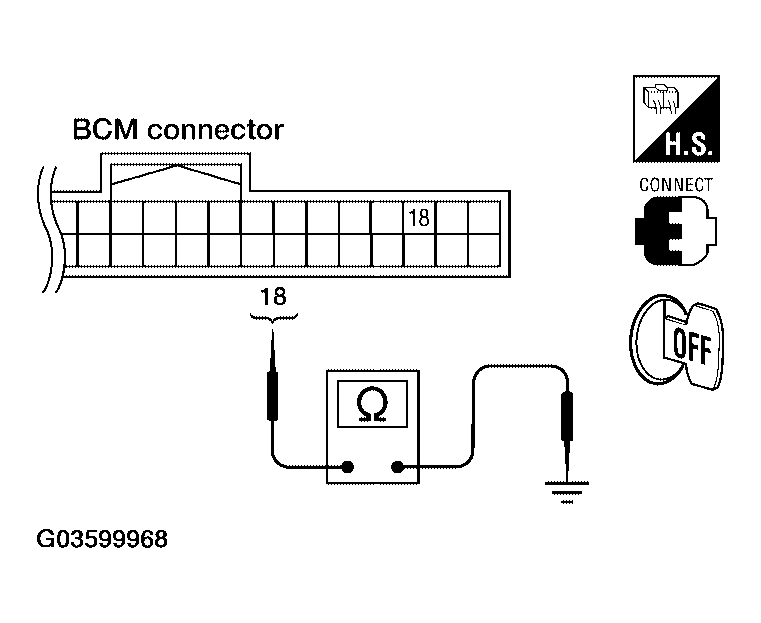

Check continuity between BCM connector M18 terminal 18 and ground.
18 (P) - Ground : Continuity should exist .
OK or NG
- OK : GO TO 4.
- NG : Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- HARNESS INSPECTION BETWEEN BCM AND REMOTE KEYLESS ENTRY RECEIVER
- Disconnect remote keyless entry receiver and BCM connectors.

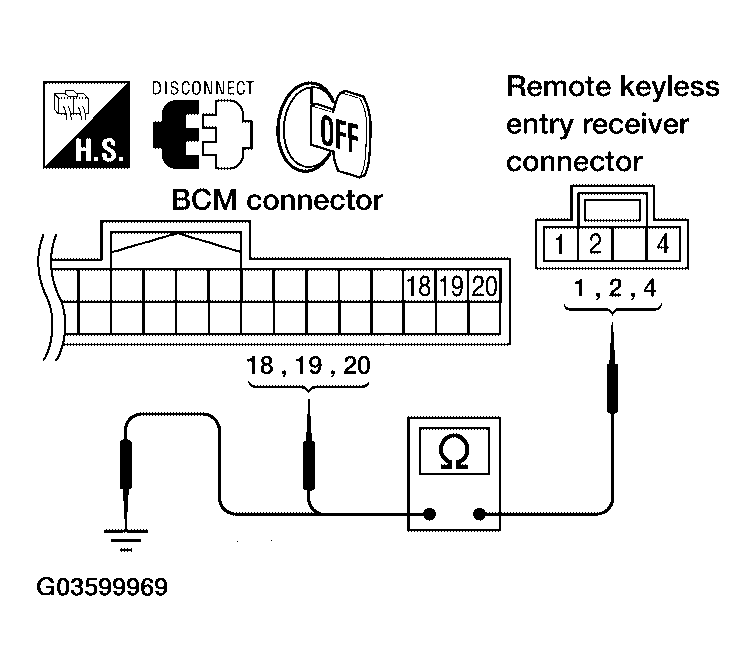

- Check continuity between remote keyless entry receiver connector M120 terminals 1, 2, 4 and BCM connector M18 terminals 18, 19, 20.
1 (P) - 18 (P) : Continuity should exist .
2 (G/W) - 20 (G/W) : Continuity should exist .
4 (V/W) - 19 (V/W) : Continuity should exist .
- Check continuity between remote keyless entry receiver terminals 1, 2 and 4 and ground.
1 (P) - Ground : Continuity should not exist .
2 (G/W) - Ground : Continuity should not exist .
4 (V/W) - Ground : Continuity should not exist .
OK or NG
- OK : Replace remote keyless entry receiver.
- NG : Repair or replace harness.
