CHECK ACC POWER

With CONSULT-II

Check "ACC ON SW" in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

MONITOR ITEM CONDITIONS

Monitor Item	Condition
ACC ON SW	Ignition switch position is ACC	: ON
ACC ON SW	Ignition switch position is OFF	: OFF

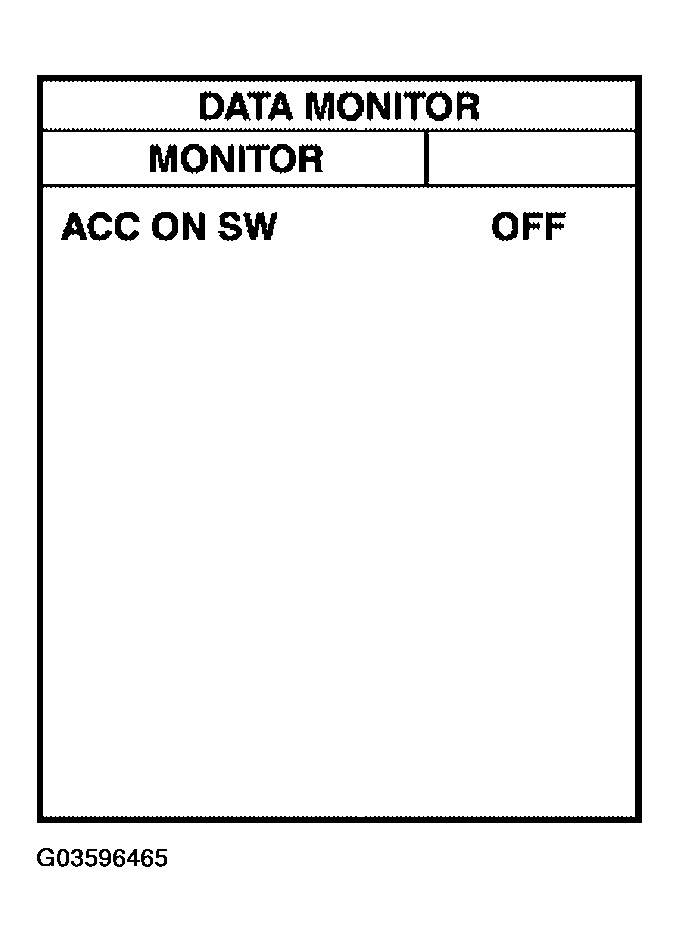

Fig 1: Display Data Monitor Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

BCM CONNECTOR TERMINAL AND GROUND VOLTAGE SPECIFICATIONS

Connector	Terminal		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M18	11	Ground	ACC	Battery voltage
M18	11	Ground	OFF	0

OK or NG

OK: ACC power circuit is OK.
NG: Check the following.
- 10A fuse [No. 4, located in fuse block (J/B)]
- Harness for open or short.

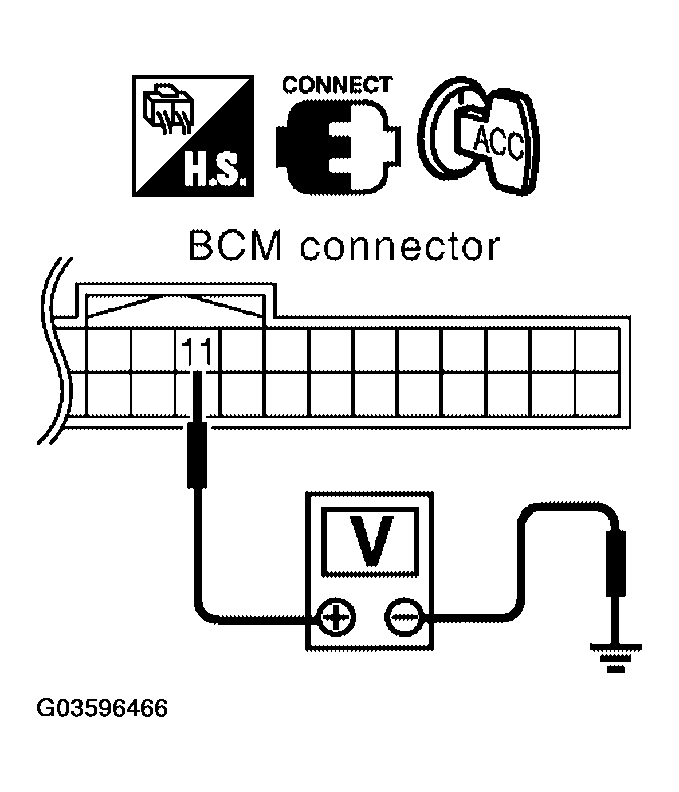

  Fig 2: Checking Voltage Between BCM Connector M18 Terminal 11 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
