Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver air bag direct-connect harness connector is damaged, the spiral cable must be replaced.
- Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
- When servicing the SRS, do not work from directly in front of air bag module.

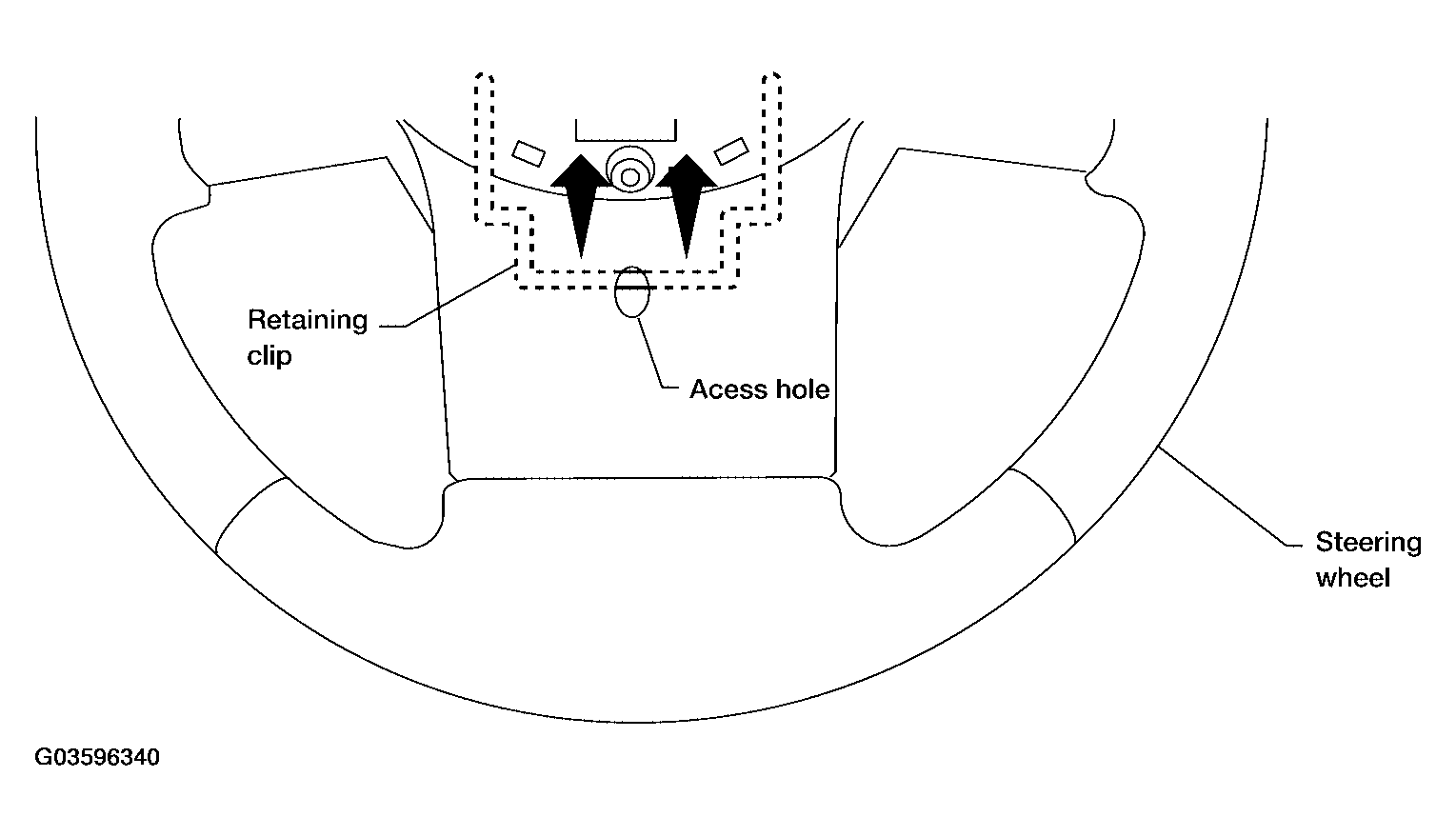

- Locate retaining clip access hole and insert suitable 4mm - 6mm blunt tool.NOTE: Do not use sharp edged objects such as screwdrivers to release driver air bag module from steering wheel, SRS components may be unintentionally damaged.
- Press upward (toward center of steering wheel) on retaining clip until driver air bag module is released from steering wheel.
- Lift the driver air bag module from the steering wheel.
- Disconnect the driver air bag module and horn connectors, then remove the driver air bag module.
- For removal/installation of the direct-connect SRS connectors, refer to "DIRECT-CONNECT SRS COMPONENT CONNECTORS ".
CAUTION:
- When servicing the SRS, do not work from directly in front of air bag module.
- Always place air bag module with pad side facing upward.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module or connectors.
- Do not disassemble air bag module.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).

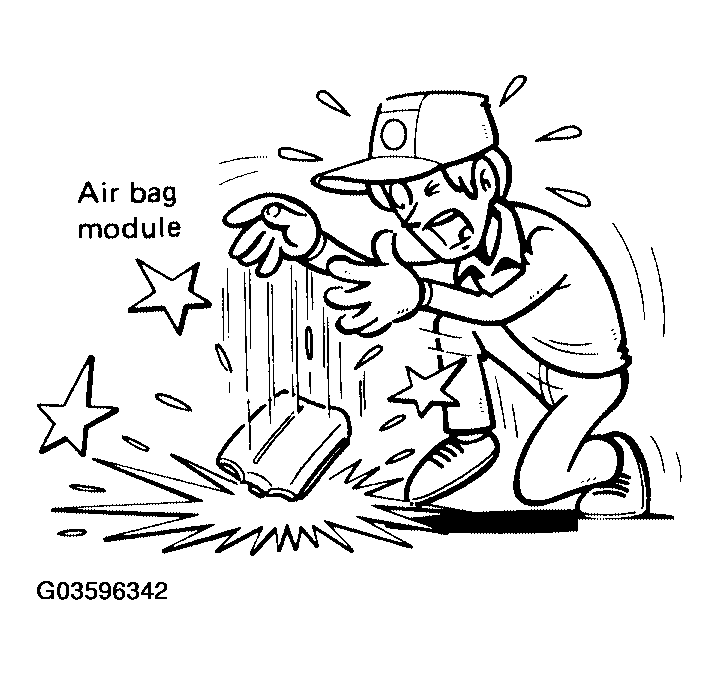

- Replace the air bag module if it has been dropped or sustained an impact.
- Do not allow oil, grease or water to come in contact with the air bag module.
