General Precautions
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When replacing fuel line parts, be sure to observe the following.
- Put a "CAUTION: INFLAMMABLE" sign in the workshop.
- Be sure to work in a well ventilated area and furnish workshop with a CO2 fire extinguisher.
- Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
CAUTION:
- Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in safe area.
- Release fuel pressure from the fuel lines. Refer to " FUEL PRESSURE RELEASE " (TYPE 1) or " FUEL PRESSURE RELEASE " (TYPE 2).
- Disconnect the battery ground cable.
- Always replace O-ring and clamps with new ones.
- Do not kink or twist tubes when they are being installed.
- Do not tighten hose clamps excessively to avoid damaging hoses.

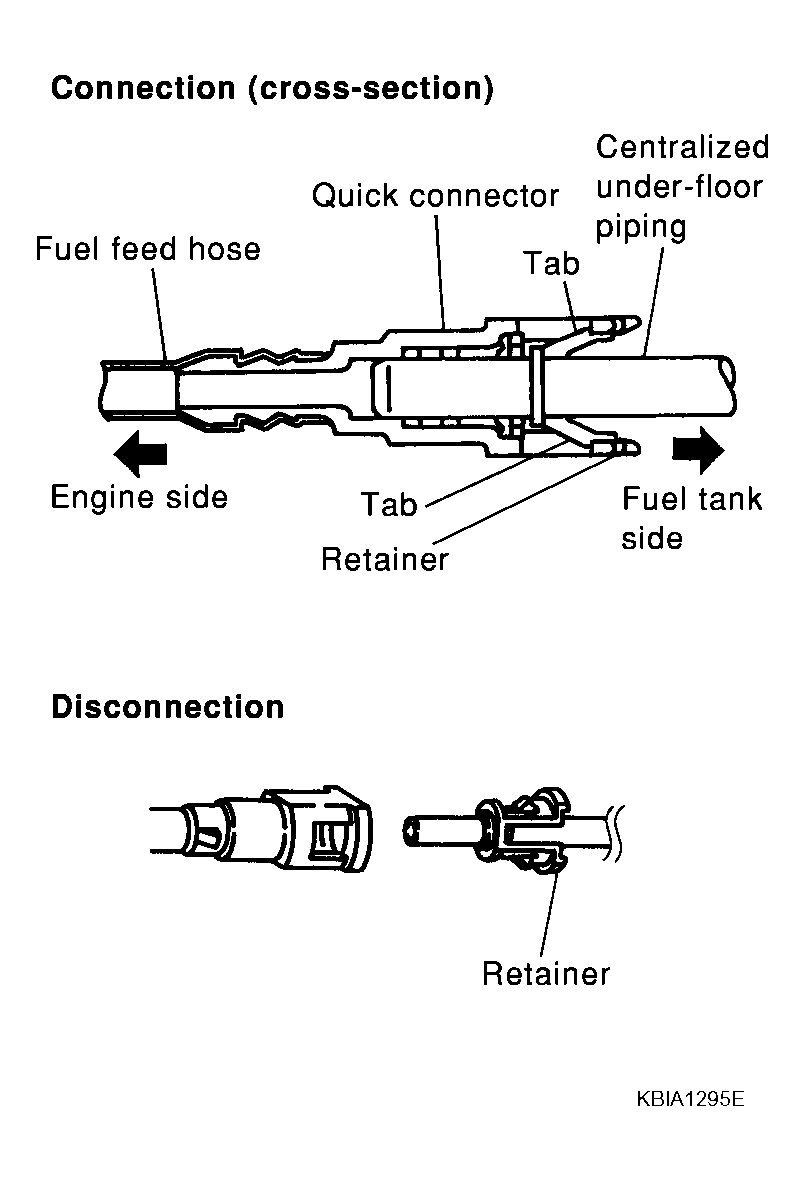

- After connecting the fuel tube quick connectors, make sure the quick connectors are secure.
Ensure that the connector and resin tube do not contact any adjacent parts.
- After installing tubes, make sure there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel leaks at connections.
- Start the engine and rev it up and check for fuel leaks at connections.
- Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the "MIL" may come on.
- For servicing "Evaporative Emission System" parts, refer to "EVAPORATIVE EMISSION SYSTEM " (TYPE 1) or "EVAPORATIVE EMISSION SYSTEM " (TYPE 2).
- For servicing"On Board Refueling Vapor Recovery (ORVR)" parts, refer to "ON BOARD REFUELING VAPOR RECOVERY (ORVR) " (TYPE 1) or "ON BOARD REFUELING VAPOR RECOVERY (ORVR) " (TYPE 2).
