CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

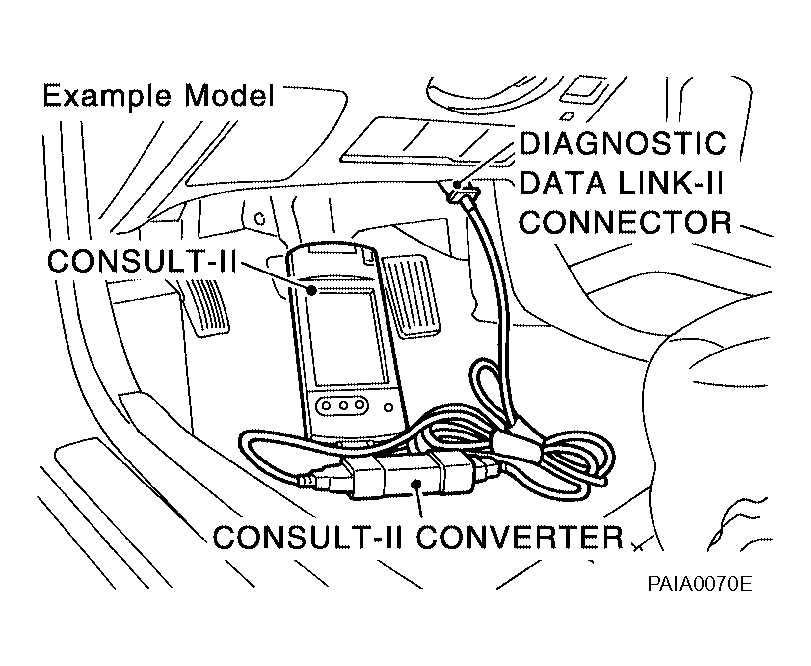

Fig 1: Connecting CONSULT-II & CONSULT-II CONVERTER To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
If necessary, turn on the ignition switch.
Touch "START (NISSAN BASED VHCL)" or "System Shortcut" eg: ENGINE) on the screen.

Fig 2: Consult-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
