Removal and Installation: Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

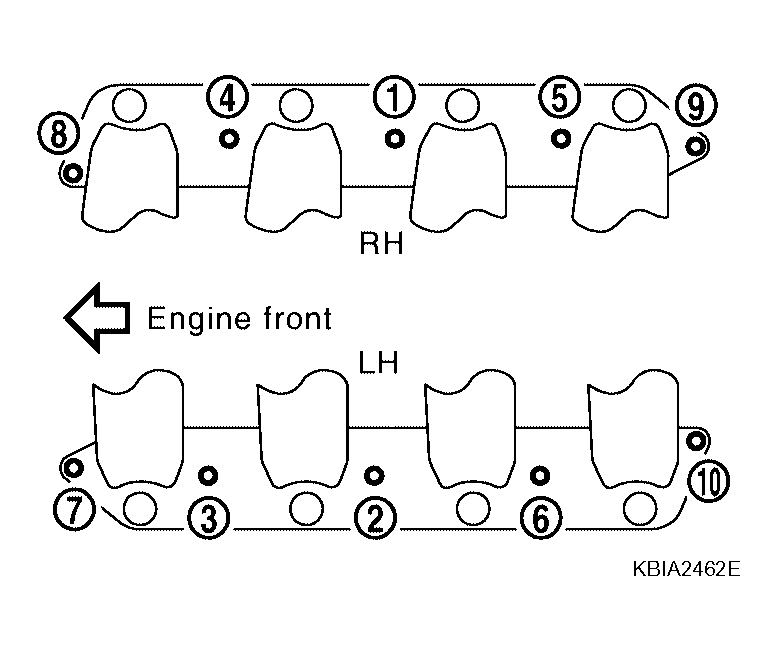

Tighten the intake manifold bolts in numerical order as shown.

Fig 1: Intake Manifold Bolts With Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the EVAP canister purge control solenoid valve connector with it facing front of engine.
Tighten the electronic throttle control actuator bolts of the electric throttle control actuator equally and diagonally in several steps.
After installation perform procedure in "INSPECTION AFTER INSTALLATION ".
Install the water hose so that its overlap width for connection is between 27 mm (1.06 in) and 32 mm (1.26 in) (target: 27 mm 1.06 in).
