Main Bearing: Notes
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

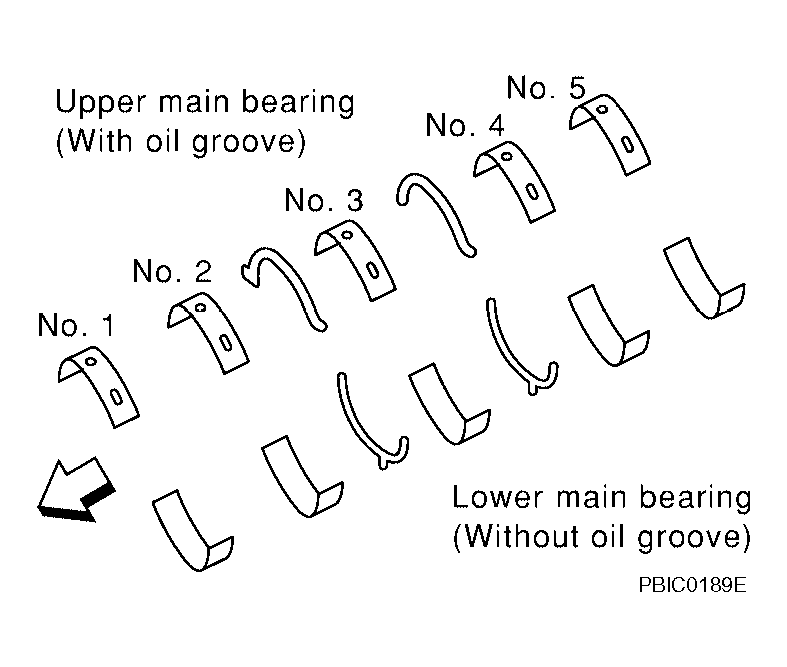

MAIN BEARING SPECIFICATION
| Unit: mm (in) | ||||
|---|---|---|---|---|
| Grade number | UPR/LWR | Thickness | Identification color | Remarks |
| 0 | - | 2.483 - 2.486 (0.0978 - 0.0979) | Black | Grade is the same for upper and lower bearings |
| 1 | - | 2.486 - 2.489 (0.0979 - 0.0980) | Brown | |
| 2 | - | 2.489 - 2.492 (0.0980 - 0.0981) | Green | |
| 3 | - | 2.492 - 2.495 (0.0981 - 0.0982) | Yellow | |
| 4 | - | 2.495 - 2.498 (0.0982 - 0.0983) | Blue | |
| 5 | - | 2.498 - 2.501 (0.0983 - 0.0985) | Pink | |
| 6 | - | 2.501 - 2.504 (0.0985 - 0.0986) | Purple | |
| 7 | - | 2.504 - 2.507 (0.0986 - 0.0987) | White | |
| 8 | - | 2.507 - 2.510 (0.0987 - 0.0988) | Red | |
| 01 | UPR | 2.483 - 2.486 (0.0978 - 0.0979) | Black | Grade is different for upper and lower bearings. |
| LWR | 2.486 - 2.489 (0.0979 - 0.0980) | Brown | ||
| 12 | UPR | 2.486 - 2.489 (0.0979 - 0.090) | Brown | |
| LWR | 2.489 - 2.492 (0.0980 - 0.0981) | Green | ||
| 23 | UPR | 2.489 - 2.492 (0.0980 - 0.0981) | Green | |
| LWR | 2.492 - 2.495 (0.0981 - 0.0982) | Yellow | ||
| 34 | UPR | 2.492 - 2.495 (0.0981 - 0.0982) | Yellow | |
| LWR | 2.495 - 2.498 (0.0982 - 0.0983) | Blue | ||
| 45 | UPR | 2.495 - 2.498 (0.0982 - 0.0983) | Blue | |
| LWR | 2.498 - 2.501 (0.0983 - 0.0985) | Pink | ||
| 56 | UPR | 2.498 - 2.501 (0.0983 - 0.0985) | Pink | |
| LWR | 2.501 - 2.504 (0.0985 - 0.0986) | Purple | ||
| 67 | UPR | 2.501 - 2.504 (0.0985 - 0.0986) | Purple | |
| LWR | 2.504 - 2.507 (0.0986 - 0.0987) | White | ||
| 78 | UPR | 2.504 - 2.507 (0.0986 - 0.0987) | White | |
| LWR | 2.507 - 2.510 (0.0987 - 0.0988) | Red | ||
