Fill Procedures

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Fill procedures after installation of service part.
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Install service part.
- Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service part.

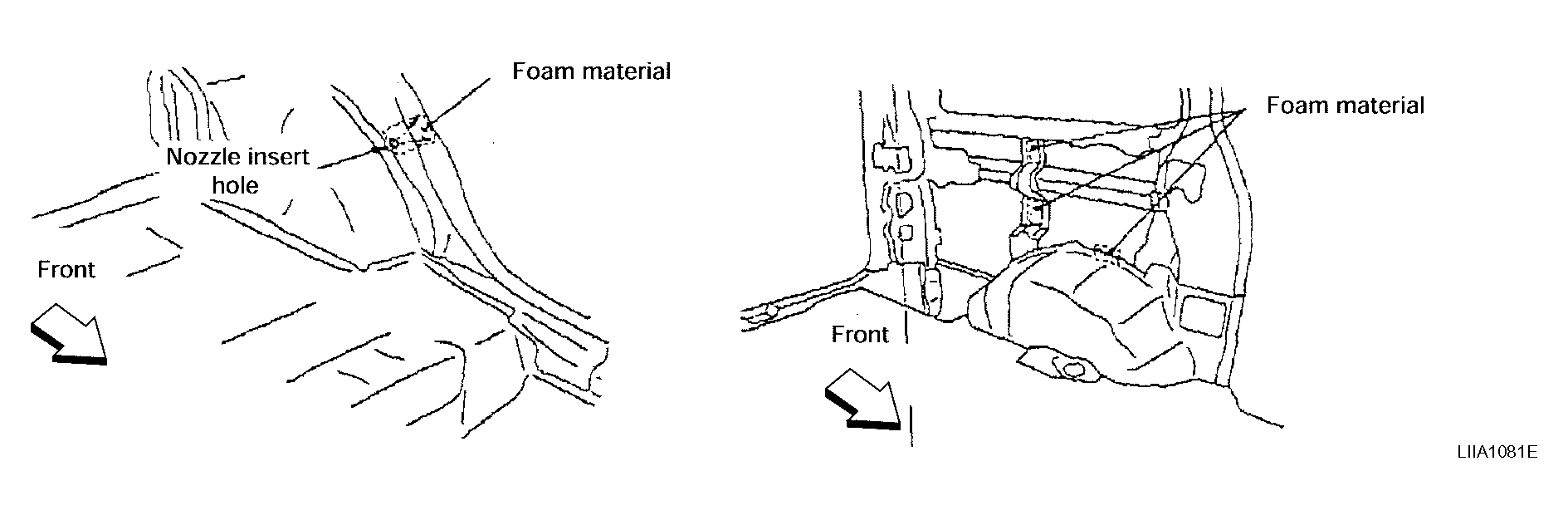

  Fig 1: Identifying Foam Material & Nozzle
  Courtesy of NISSAN MOTOR CO., U.S.A.
Fill procedures before installation of service part.
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Fill foam material on wheelhouse outer side.
  NOTE: Fill in enough to close gap with service part while avoiding flange area.
- Install service part.
  NOTE: Refer to label for information on working times.

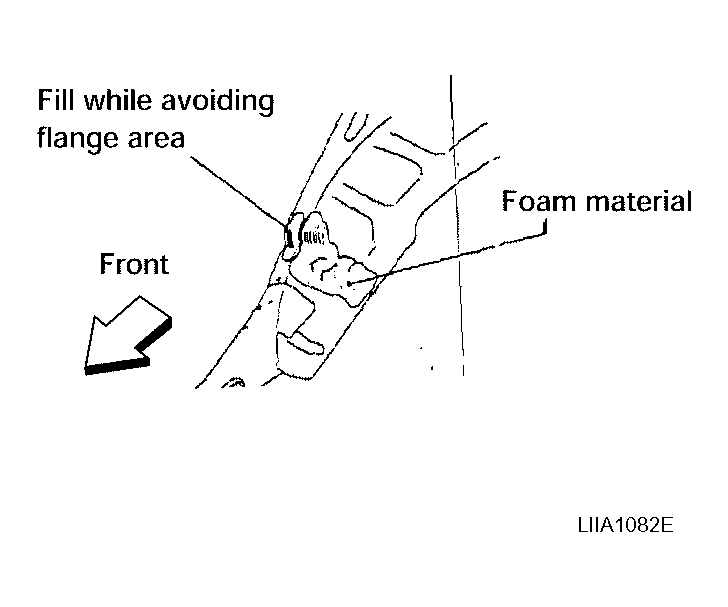

  Fig 2: Filling Foam Material On Wheelhouse Outer Side
  Courtesy of NISSAN MOTOR CO., U.S.A.
