Front Pillar

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

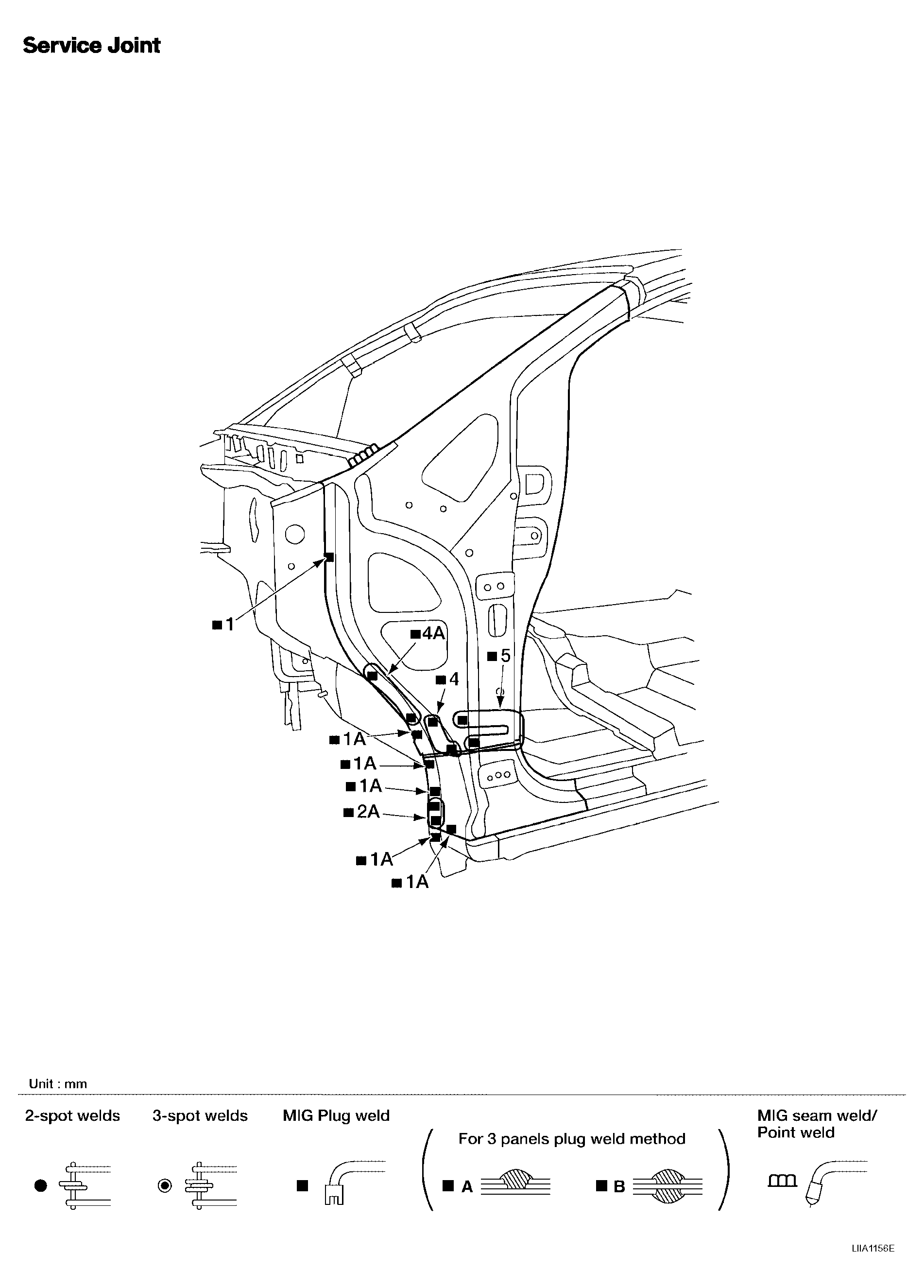

Fig 2: Identifying Front Pillar Service Joint (2 Of 3)
G04187709Courtesy of NISSAN MOTOR CO., U.S.A.

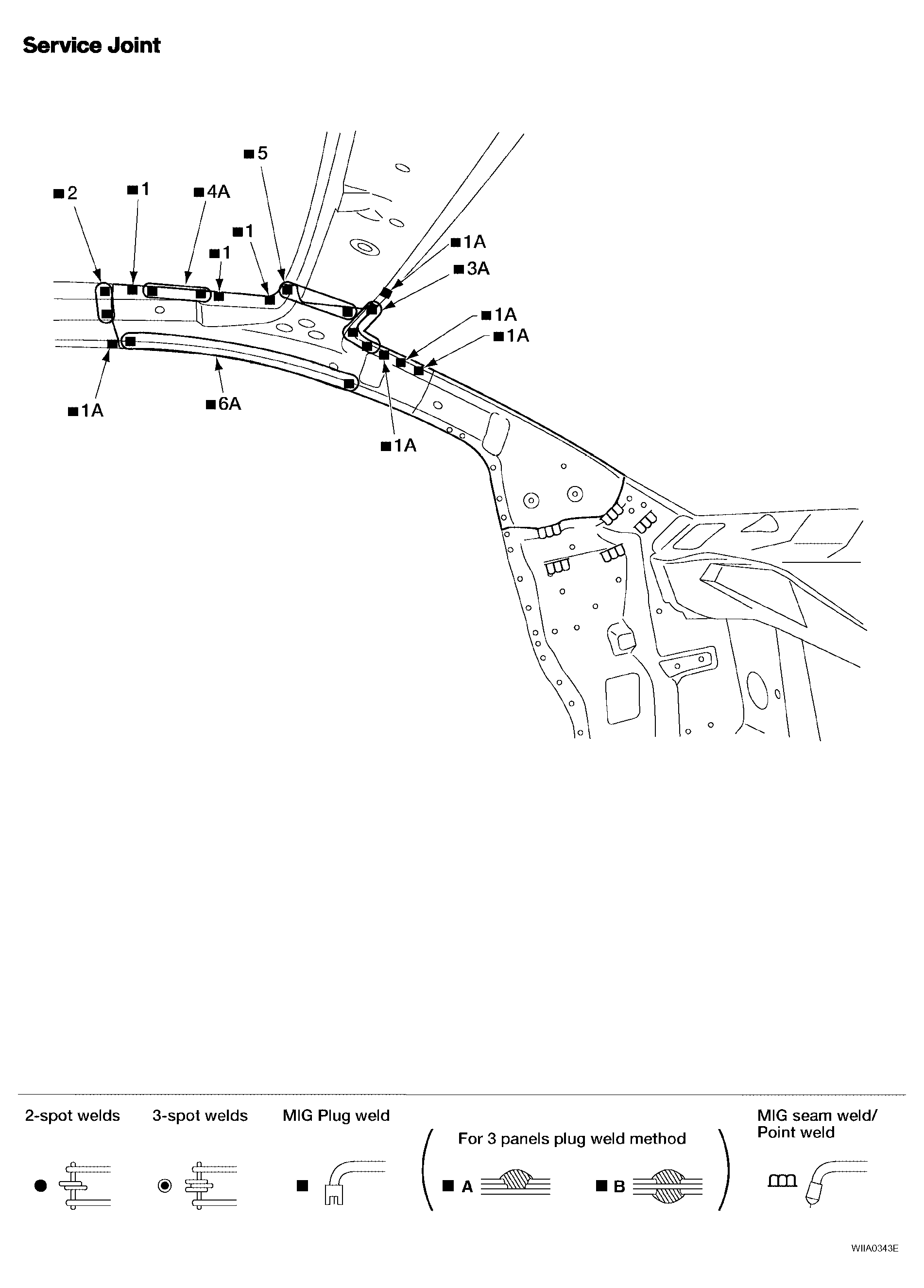

Fig 3: Identifying Front Pillar Service Joint (3 Of 3)
G04187710Courtesy of NISSAN MOTOR CO., U.S.A.
