ACC Power Check

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ACC POWER

With CONSULT-II

Check "ACC ON SW" in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

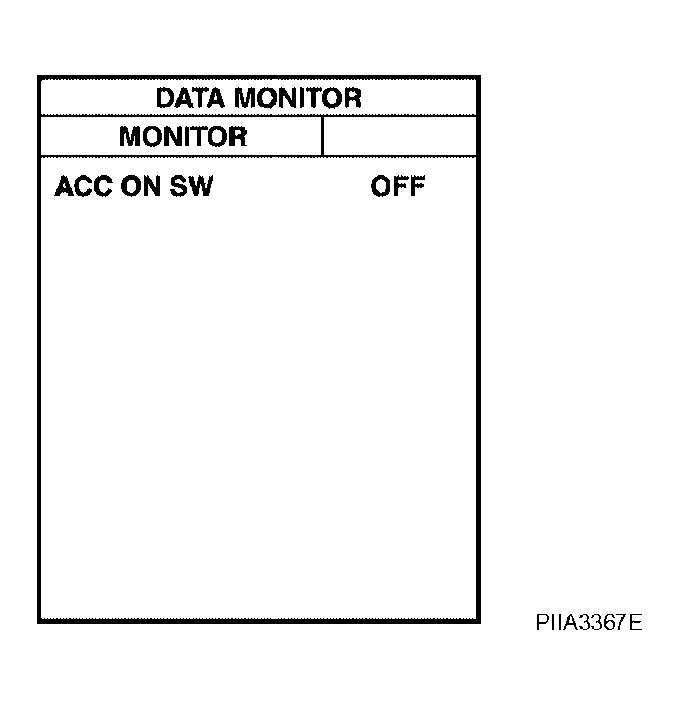

Fig 1: CONSULT-II Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

MONITOR ITEM CONDITION

Monitor Item	Condition
ACC ON SW	Ignition switch position is ACC	:ON
ACC ON SW	Ignition switch position is OFF	:OFF

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

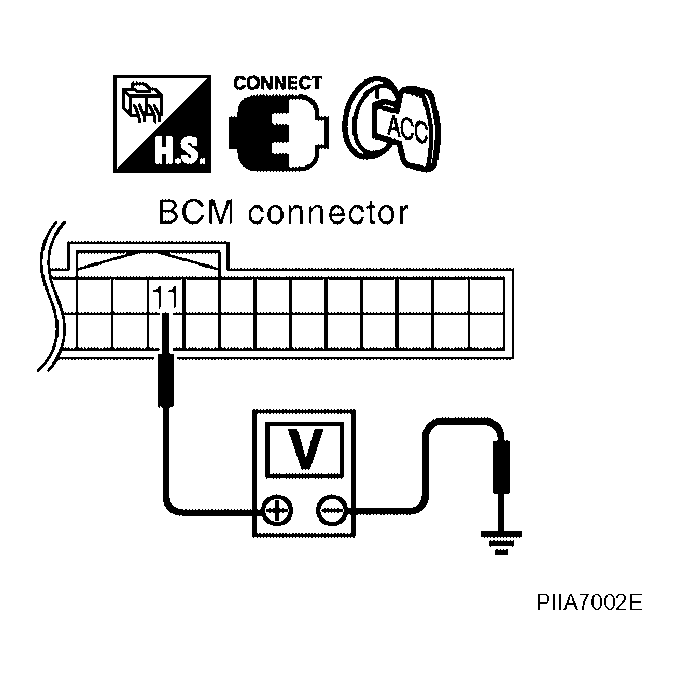

Fig 2: Checking Voltage Between BCM Connector M18 Terminal 11 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CONNECTOR TERMINAL VOLTAGE REFERENCE

Connector	Terminals		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M18	11	Ground	ACC	Battery voltage
M18	11	Ground	OFF	0

OK or NG

OK: ACC power circuit is OK.

NG: Check the following:

10A fuse [No. 4, located in fuse block (J/B)]
Harness for open or short.
