Ball Joint

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

BALL JOINT SPECIFICATION

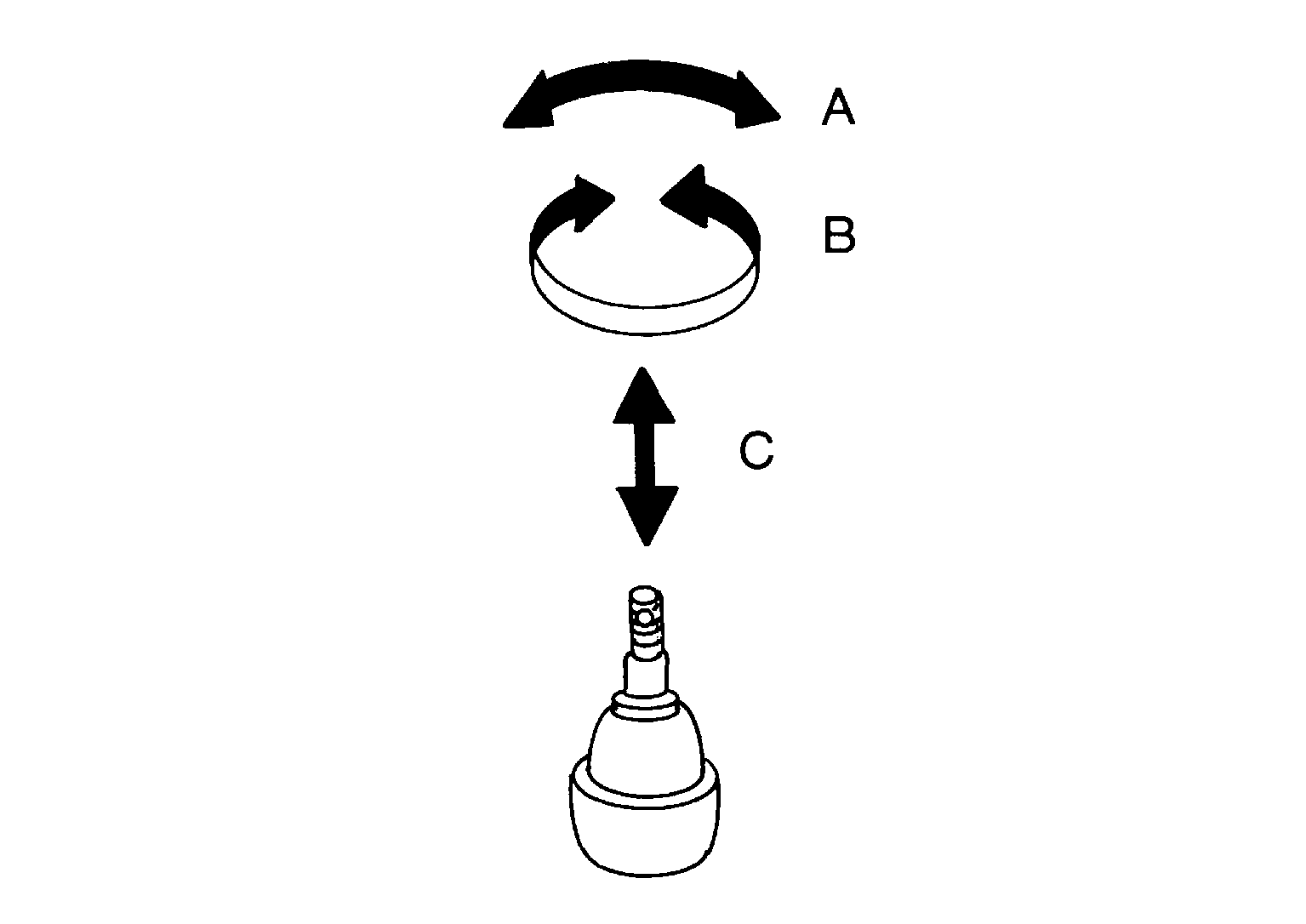

Swinging force "A"

Upper ball joint

8.1 - 103.2 N (0.8 - 10.5 kg-f, 1.8 - 23.2 lb-f) ⁽¹⁾

Lower ball joint

11.4 - 145.5 N (1.1 - 14.8 kg-f, 2.5 - 32.7 lb-f) ⁽²⁾

Turning torque "B"

0.5 - 6.4 N.m (0.05 - 0.65 kg-m, 4 - 57 in-lb)

Vertical end play "C"

0 mm (0 in)

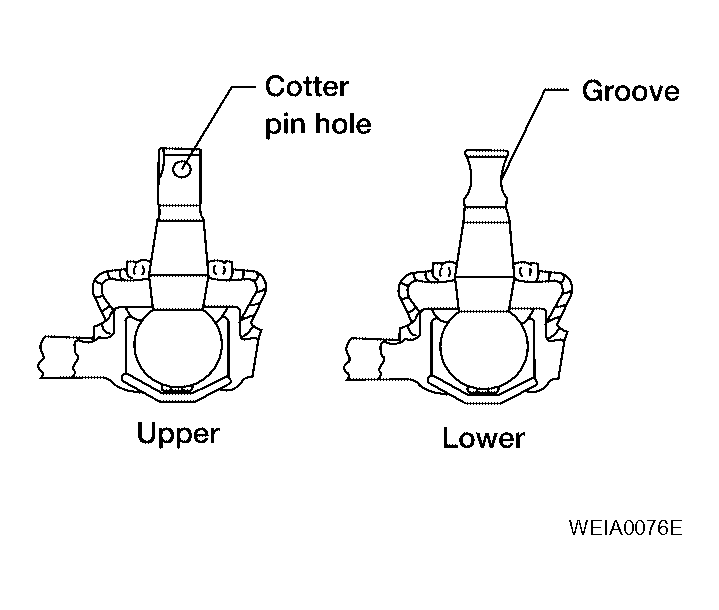

⁽¹⁾	Measure at cotter pin hole

⁽²⁾	Measure at groove
