Checking Equipment

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

When ordering the below equipment, contact your NISSAN distributor.

EQUIPMENT REFERENCE CHART

Tool name	Description

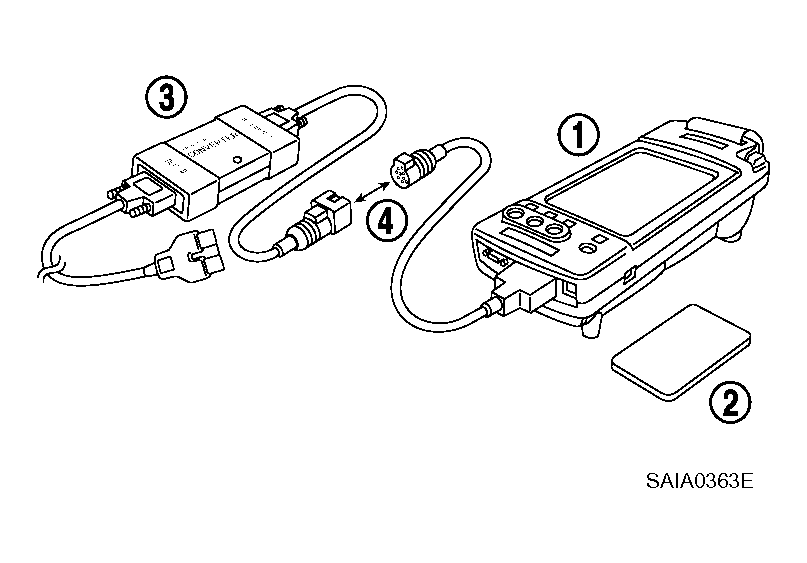

NISSAN CONSULT-II (J-44200) CONSULT-II unit (Tester internal soft: Resident version 3.4.0) and accessories. Program cards UED05B-1 and AEN04A-1 (For NATS) or later. To confirm the best combination of these softwares, refer to CONSULT-II Operation Manual. CONSULT-II CONVERTER. "CONSULT-II Pigtail" cable.

CAUTION:

Previous CONSULT-II "I" and "Y" DLC-I and DLC-II cables should NOT be used anymore because their DDL connector pins can be damaged during cable swapping.
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self- diagnosis depending on control unit which carries out CAN communication.
If CONSULT-II CONVERTER is not connected with CONSULT-II, the vehicle enters "FAIL SAFE MODE" which will "LIGHT UP the HEAD LIGHT" and /or "COOLING FAN ROTATING" when CONSULT- II is started.

NOTE:

The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.
Be sure the CONSULT-II is turned OFF before installing or removing a program card.
