Switches And Their Control Function

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

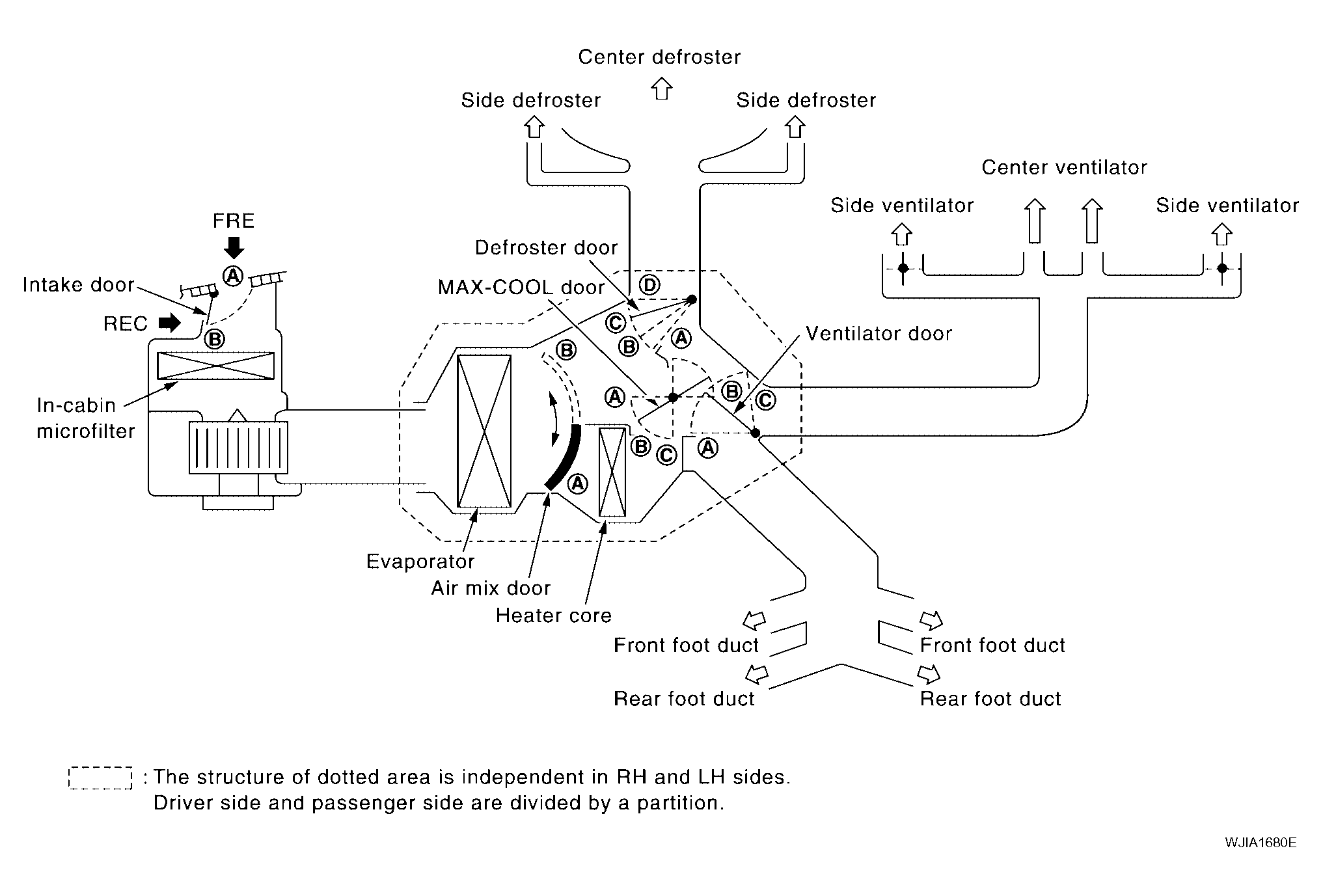

Fig 1: Switches And Control Function System Description (Front) (1 Of 2)
G04176422Courtesy of NISSAN MOTOR CO., U.S.A.

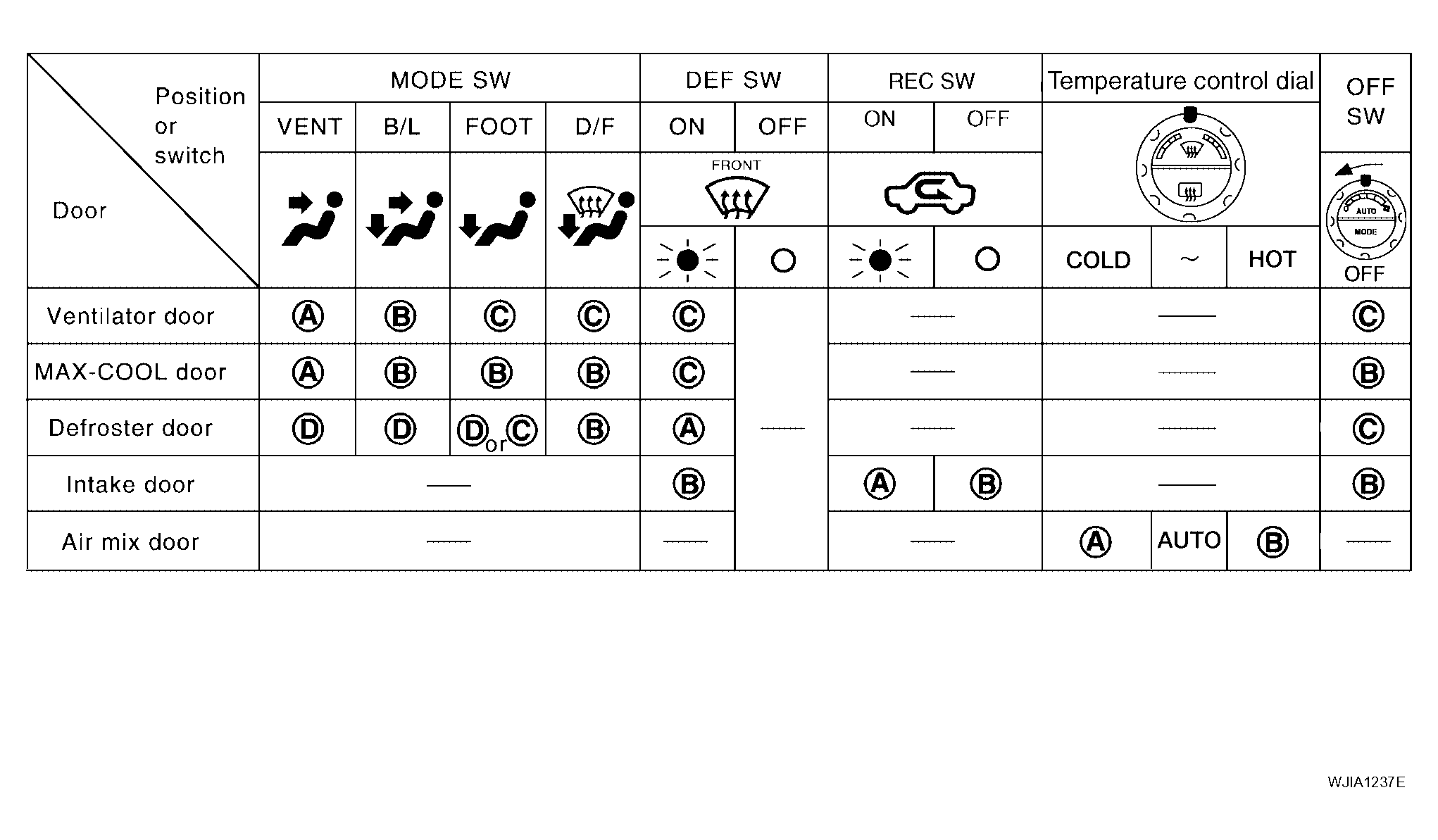

Fig 2: Switches And Control Function System Description (Front) (1 Of 2) (Front) (2 Of 2)
G04176423Courtesy of NISSAN MOTOR CO., U.S.A.
