Front Air Control Terminals and Reference Value: Notes
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Measure voltage between each terminal and ground by following Terminals and Reference Value for front air control.

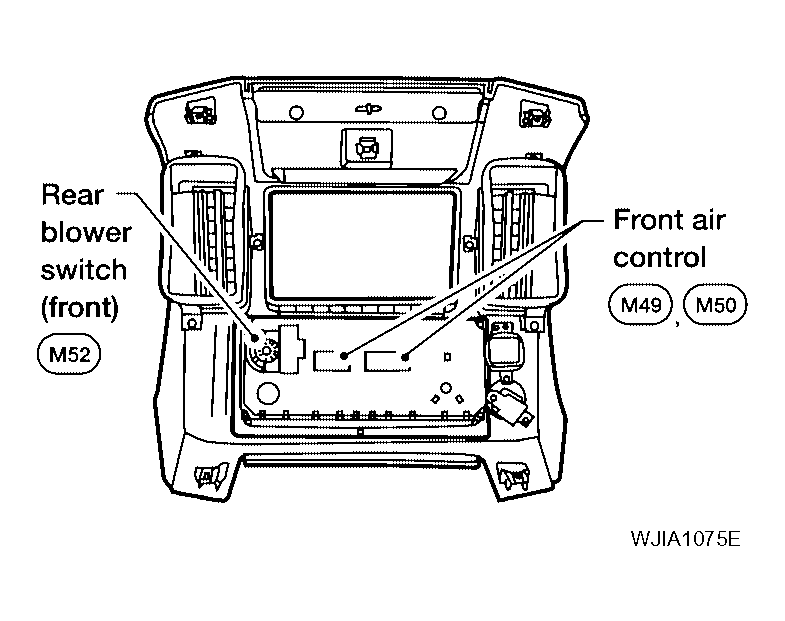

Fig 1: Identifying Rear Blower Switch (Front) And Front Air Control
