Inspection Flow
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

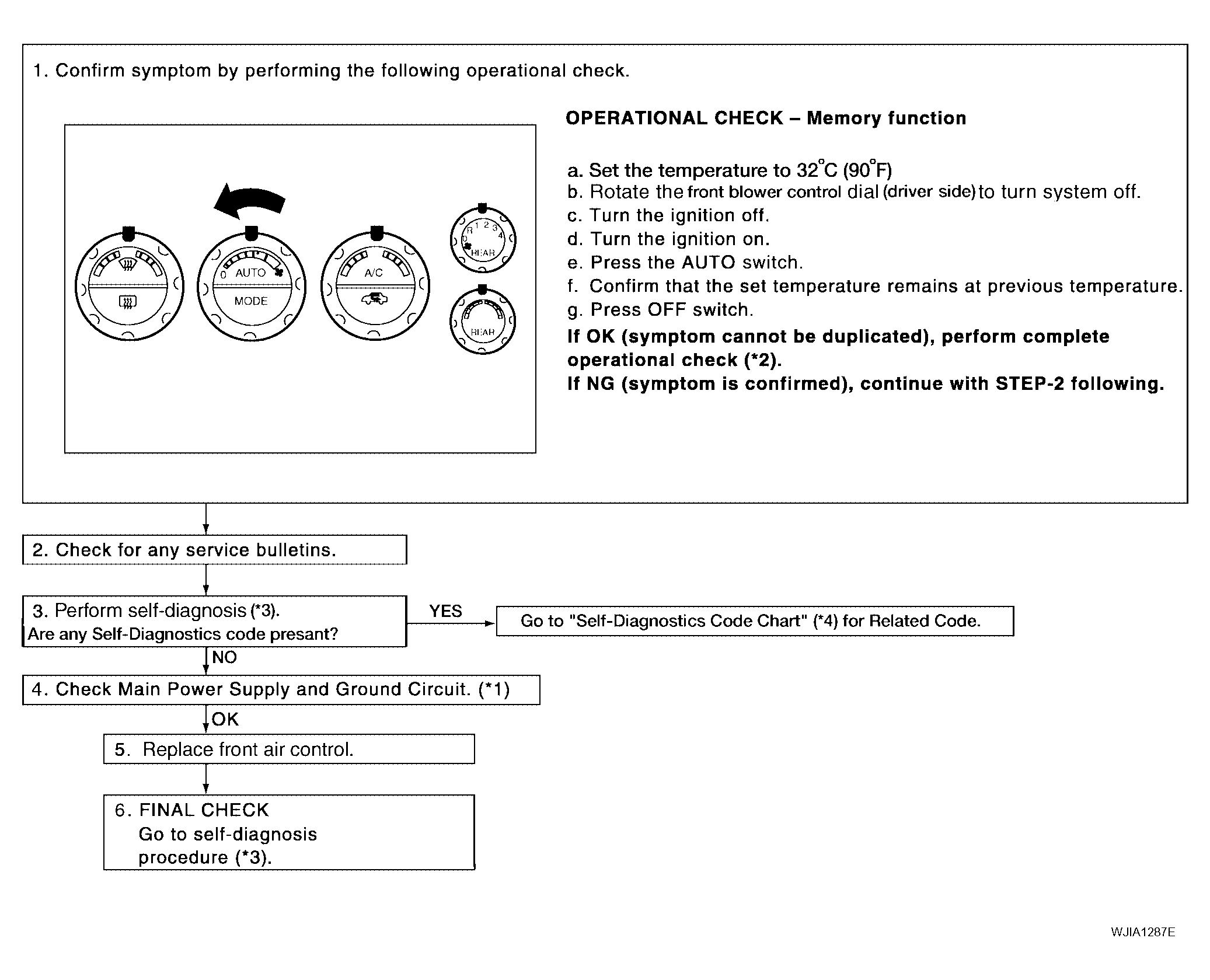

| Footnote (See Fig 1 ) | Reference |
| *1 | Power Supply and Ground Circuit for Front Air Control |
| *2 | Operational Check (Front) |
| *3 | A/C System Self-diagnosis Function |
| *4 | SELF-DIAGNOSIS CODE CHART |
