CHECK ACC POWER

With CONSULT-II

Check "ACC ON SW" in DATA MONITOR mode with CONSULT-II. Refer to , "DATA MONITOR "

ACC POWER (WITH CONSULT-II)

Monitor Item	Condition
ACC ON SW	Ignition switch position is ACC : ON
ACC ON SW	Ignition switch position is OFF : OFF

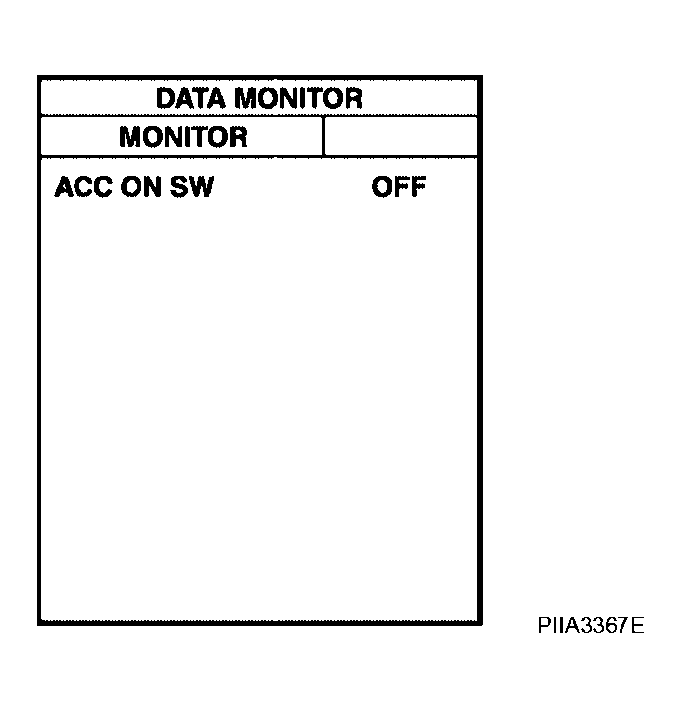

Fig 1: CONSULT-II Screen Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

ACC POWER (WITHOUT CONSULT-II)

Connector	Terminal		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M18	11	Ground	ACC	Battery voltage
M18	11	Ground	OFF	0

OK or NG

OK: ACC power circuit is OK.

NG: Check the following:

10A fuse [No. 4, located in fuse block (J/B)]
Harness for open or short.

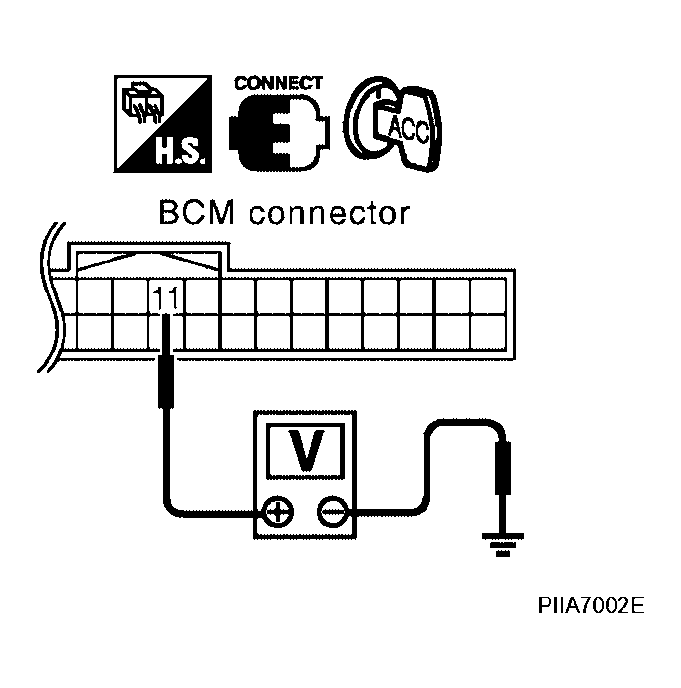

Fig 2: Checking ACC Power
Courtesy of NISSAN MOTOR CO., U.S.A.
