IPDM E/R Operation Check

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IPDM E/R INPUT VOLTAGE

Check voltage between IPDM E/R connector E122 terminal 45 and ground.

IPDM E/R INPUT VOLTAGE

Connector	Terminal		Voltage (V) (Approx.)
Connector	(+)	(-)	Voltage (V) (Approx.)
E122	45	Ground	Battery voltage

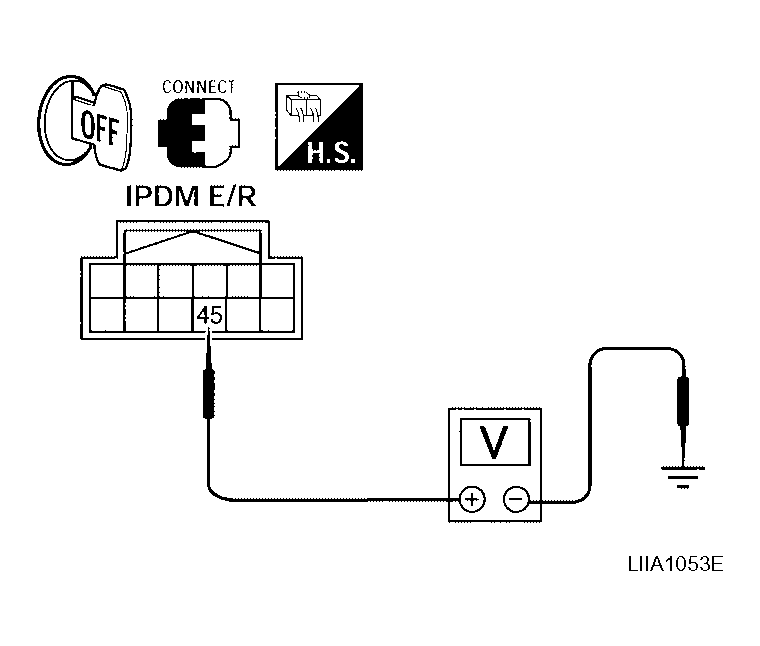

Fig 1: Checking IPDM E/R Input Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R "

NG: GO TO 2.

CHECK IPDM E/R INPUT VOLTAGE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R and horn relay.
3. Check continuity between IPDM E/R connector E122 terminal 45 and horn relay connector H-1 terminal 1.
  45 - 1: Continuity should exist.
4. Check continuity between IPDM E/R connector E122 terminal 45 and ground.
45 - Ground: Continuity should not exist.

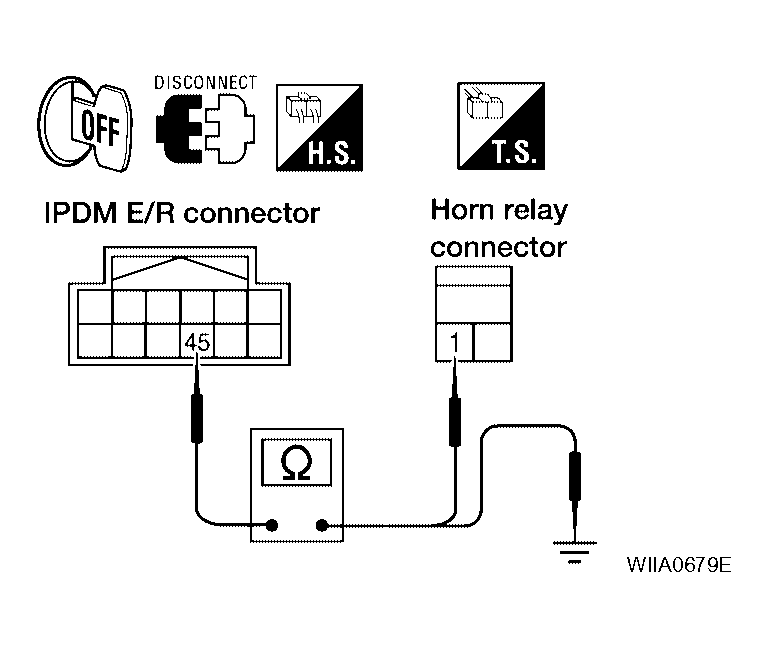

Fig 2: Checking IPDM E/R Input Voltage Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Further inspection is necessary. Refer to , "SYMPTOM CHART "

NG: Repair or replace harness.
