Component Locations
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

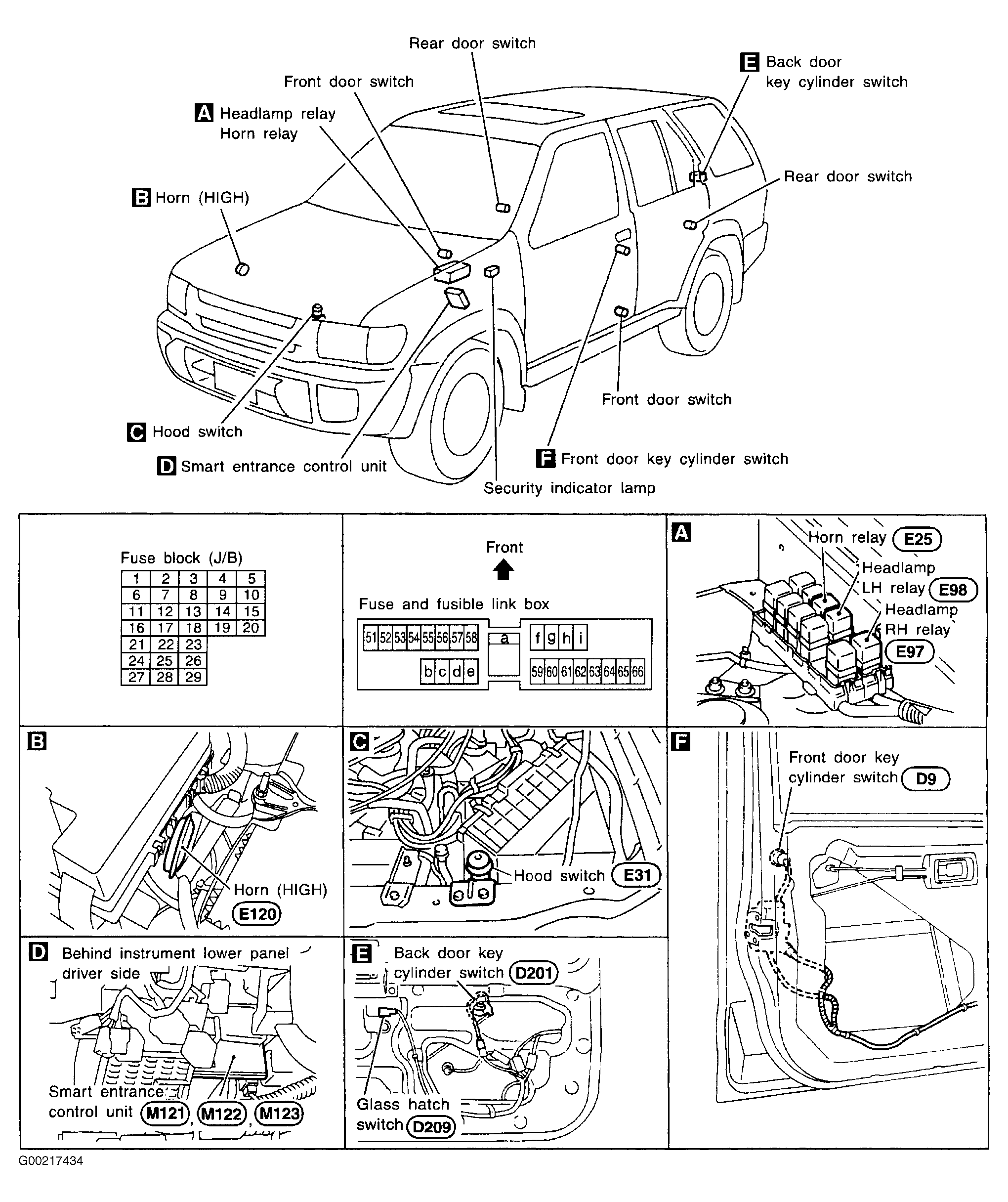

COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Back Door Key Cylinder Switch | On Back Door | ||
| Front Door Key Cylinder Switch | Under Front Door Handles | ||
| Fuse Block (J/B) | Behind Left Side Of Instrument Panel | ||
| Fuse & Fusible Link Box | Under Hood, In Front Of Right Strut Tower | ||
| Hood Switch | Under Hood, On Core Support | ||
| Horn | On Right Fender Well, Next To Battery | ||
| Horn Relay | Under Hood, Left Side Of Engine Compartment, In Relay Box No. 1 | ||
| Security Lamp Indicator | On Left Side Of Dash | ||
| Smart Entrance Control Unit (SECU) | Behind Left Side Of Dash | ||
|
|||
