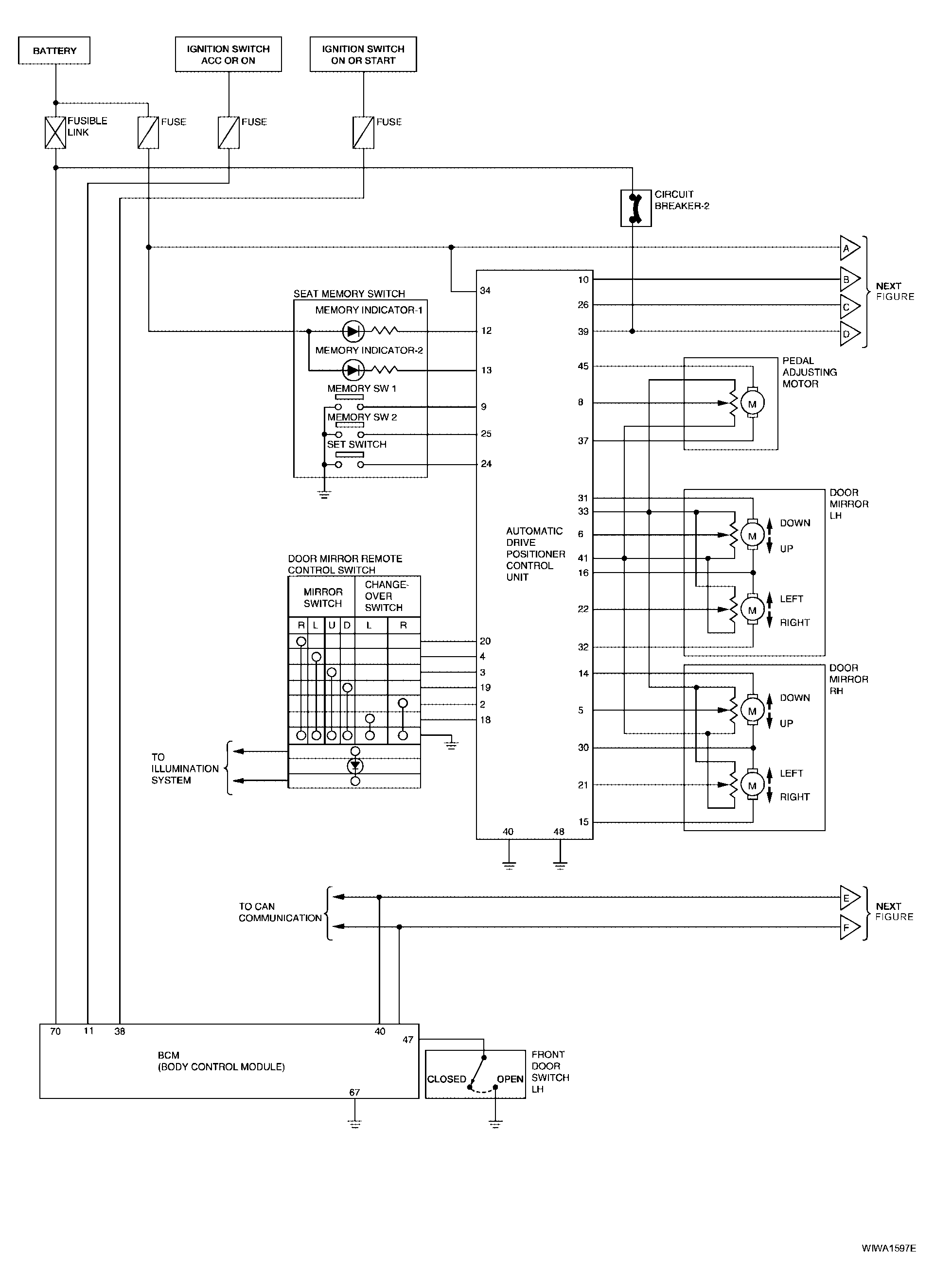

Fig 1: Automatic Drive Positioner Schematic Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

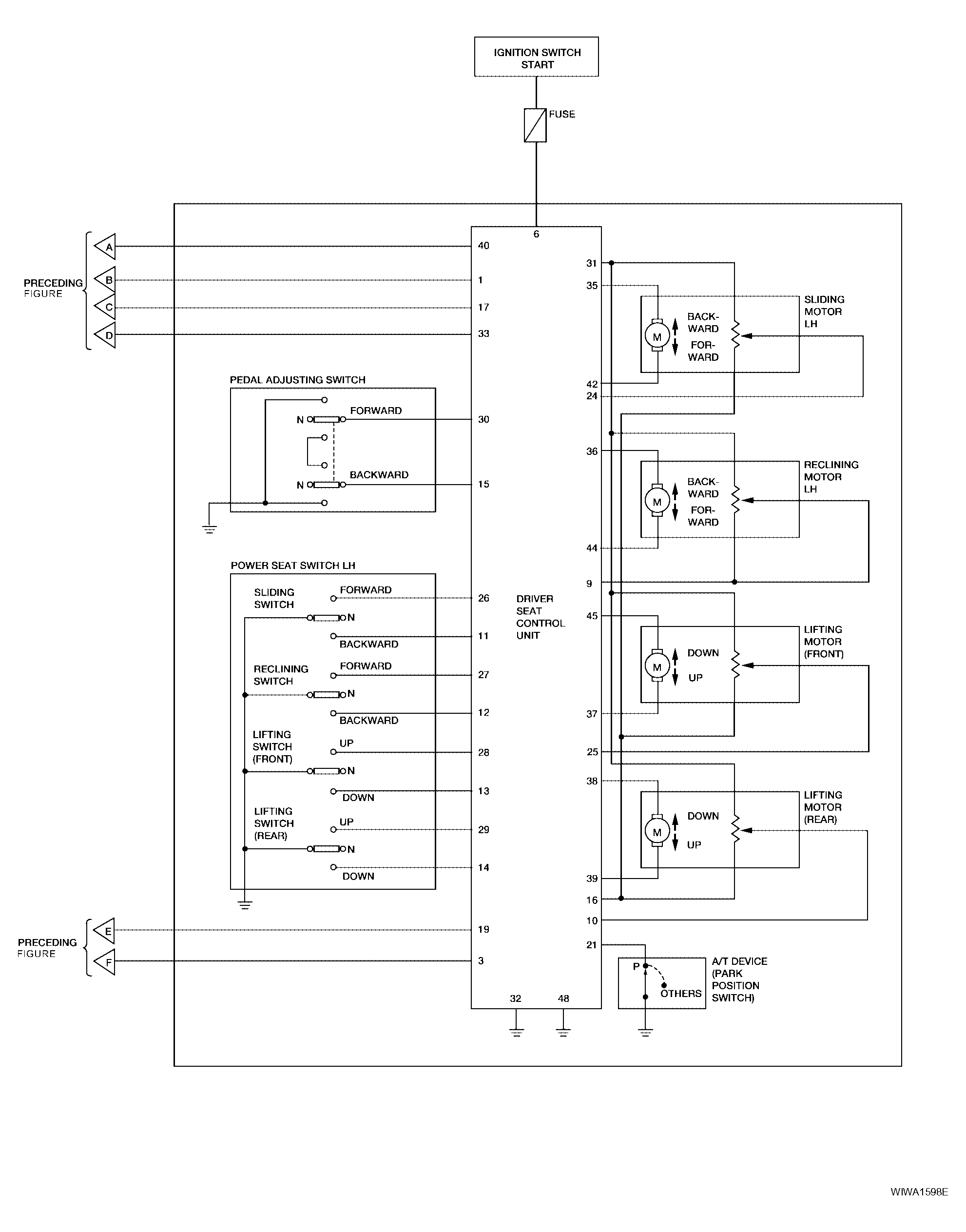

Fig 2: Automatic Drive Positioner Schematic Diagram (2 Of 2)
