Seatback Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
  1. Remove the seatback assembly. Refer to "REMOVAL ".
  2. Remove the headrest.
  3. From inside of the seatback, squeeze the headrest holder tabs at the base of the stay pipe and pull up to remove.
    NOTE: Before installing the headrest holder, check its orientation (front/ rear and right/left).

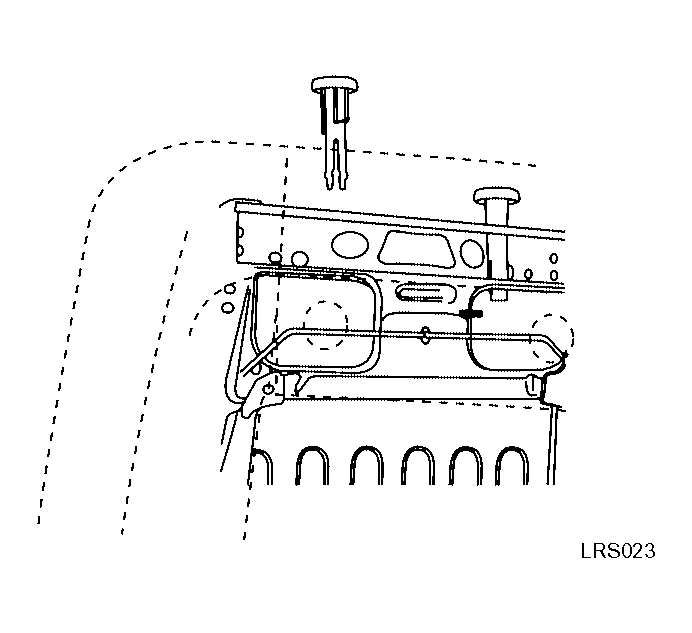

    Fig 1: Identifying Headrest Holder Tabs
    G04176356Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the snap ring and the lumbar support lever knob.

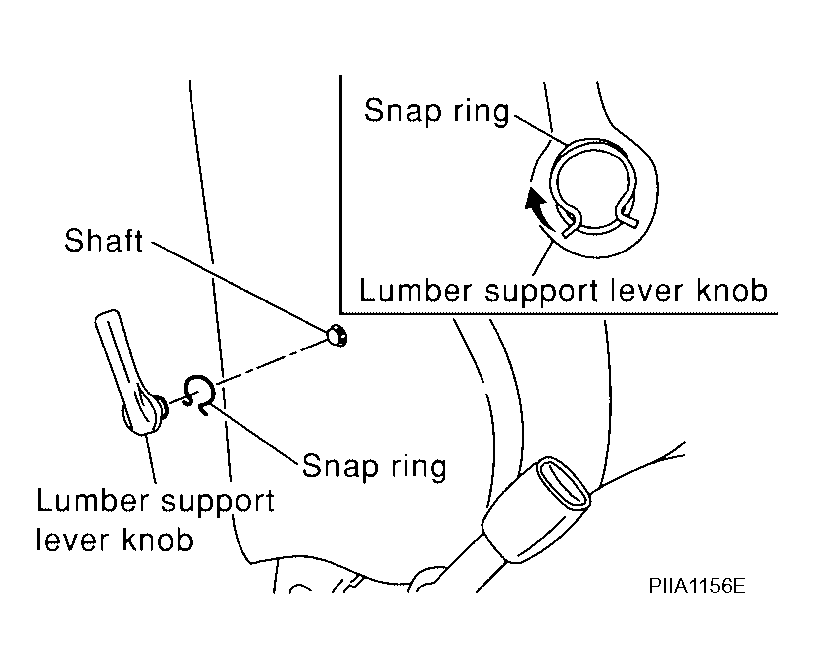

    Fig 2: Identifying Snap Ring And Lumbar Support Lever Knob
    G04176357Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the seatback trim and pad assembly.
  6. Remove the hog ring to separate the seatback trim from the pad and the heating element (if equipped).
