Section 1701 (Roof): Sunroof: Adjustment: Notes

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Inspect then measure the gap and height difference between the glass lid assembly and roof panel; compare to specifications. Determine which procedure to follow based on results of measurements.

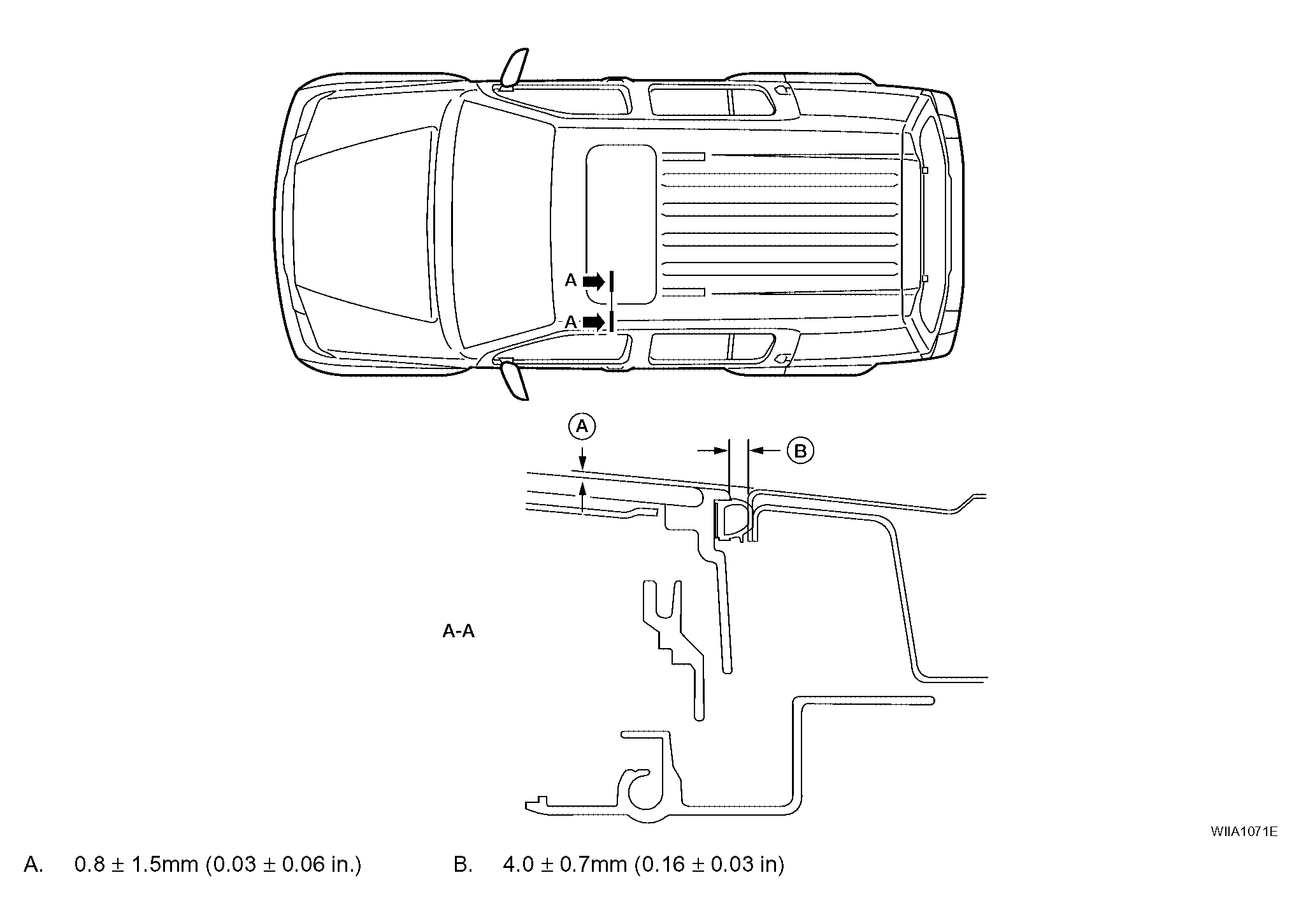

Fig 1: Measuring Gap And Height Difference Between Glass Lid Assembly And Roof Panel
G04176148Courtesy of NISSAN MOTOR CO., U.S.A.
