BCM (Body Control Module): Schematic

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Up to vehicle identification number JNKCV54E26M712739 and JNKCV54E26M712740.

Fig 1: BCM Schematic Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

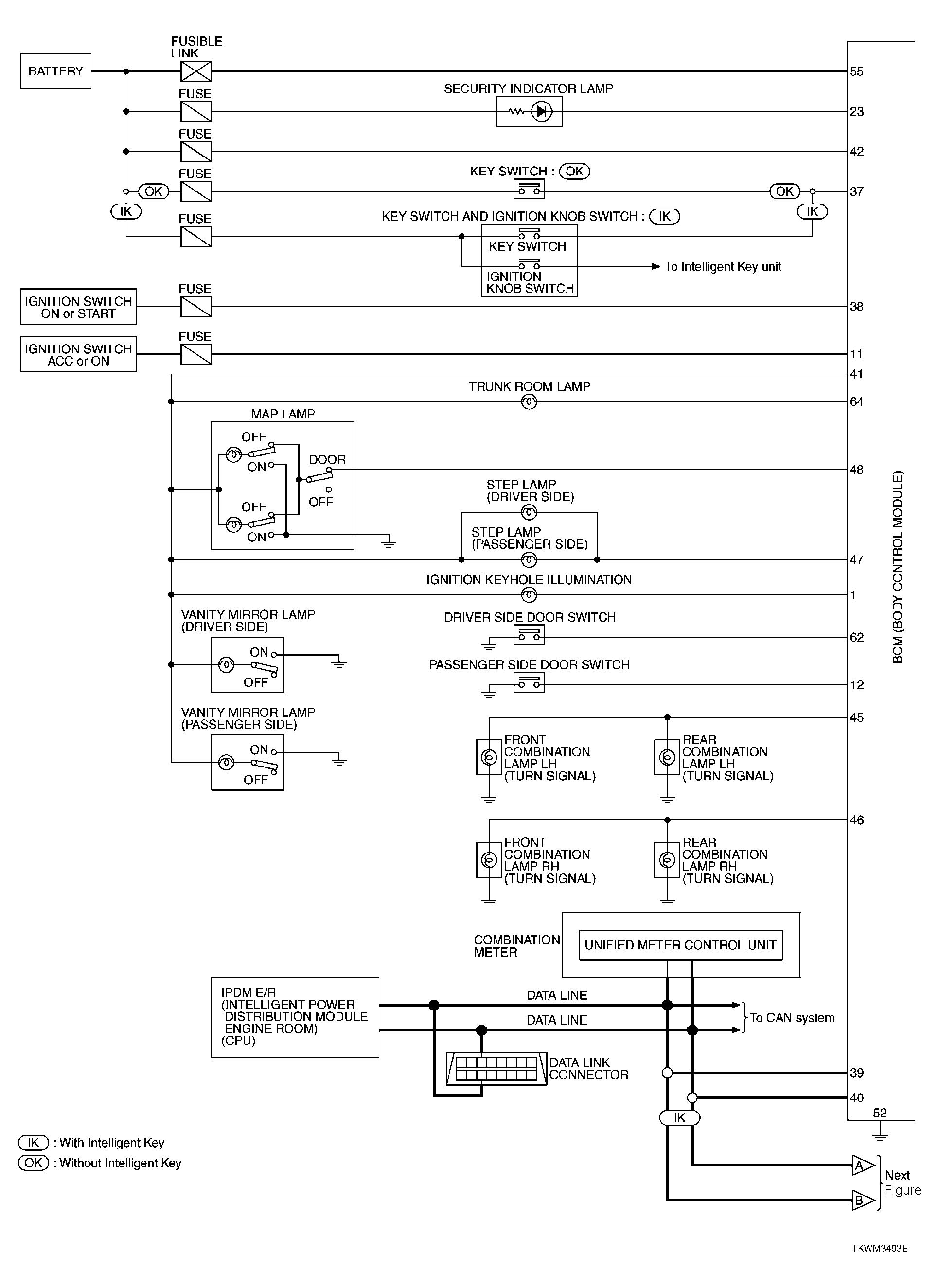

Fig 2: BCM Schematic Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
