Operation table of BCM and combination switches

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

BCM reads operation status of combination switch using combinations shown in table below.

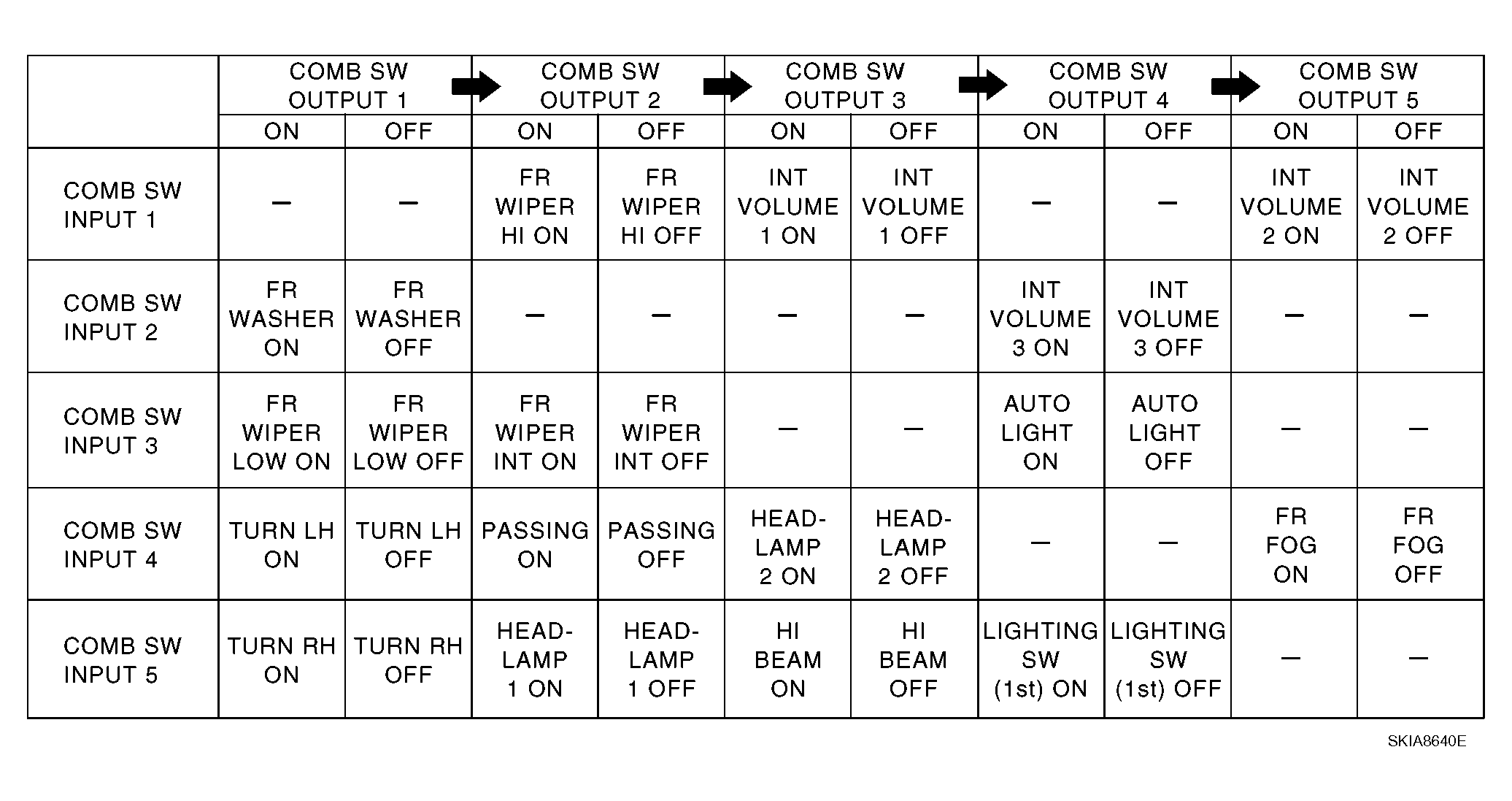

Fig 1: Combination Switch-BCM Reading Chart
G04183573Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Headlamp system has a dual switch.
